Japan PEACOCK Peacock H-1.8N Percent Thickness Gauge

SE
0~10Mm thickness measurement range, accuracy 0.01mm, throat depth 120mm.
$148.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con
Similar products

PEACOCK H-1.8N Thickness GaugeSPEC

PEACOCK H-1.8N Thickness GaugeDetails

PEACOCK H-1.8N Thickness GaugePacking list

SKU
NB040054
Measurement Range
0~10mm
measurement Accuracy
0.01mm
Determination of laryngeal depth
120mm
Accuracy
±10μm
Measuring pressure
Below 1.8N
Drilling style
Pottery and porcelain disc diameter 10mm
Drilling parallelism
5μm
H-1.8N
Thickness Gauge
0~10Mm thickness measurement range, accuracy 0.01mm, throat depth 120mm.

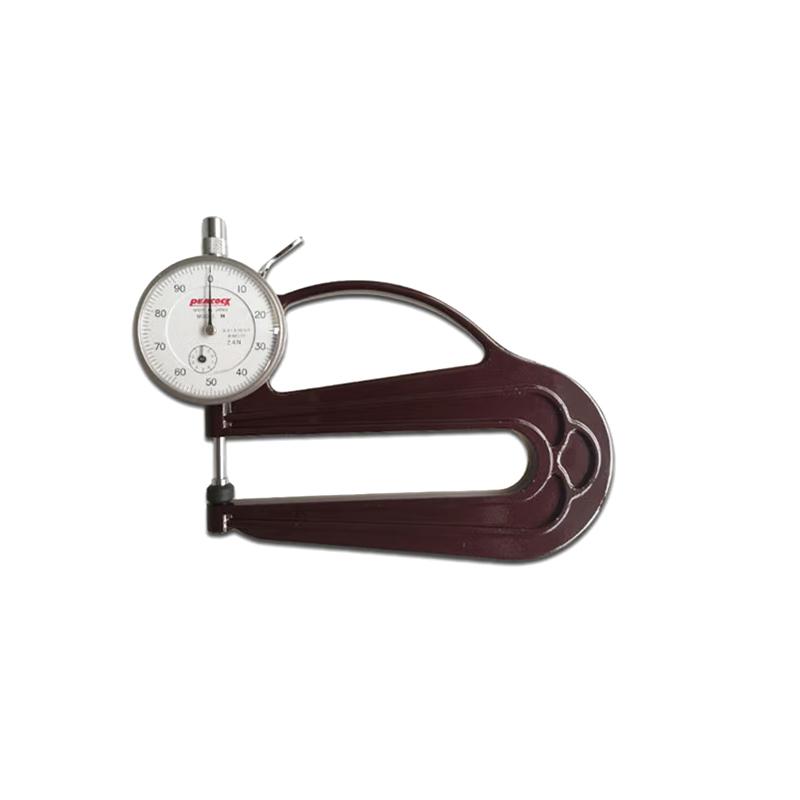

Japan PEACOCK Peacock H-1.8N Percent Thickness Gauge Picture

Introduction

Japanese peacock thickness table H-1.8N, is a 120mm deep throat model, accuracy 0.01mm, ceramic plane probe.

Features

  • The metal press handle allows for smooth and effective measurement

  • The dial scales are clear, and the readings are clear

  • Ceramic measuring head, wear-resistant and non-leaking

Application

The Thickness Gauge is suitable for measuring the thickness of rubber, plastic, fabric, paper, leather, adhesive tape, film and other samples.

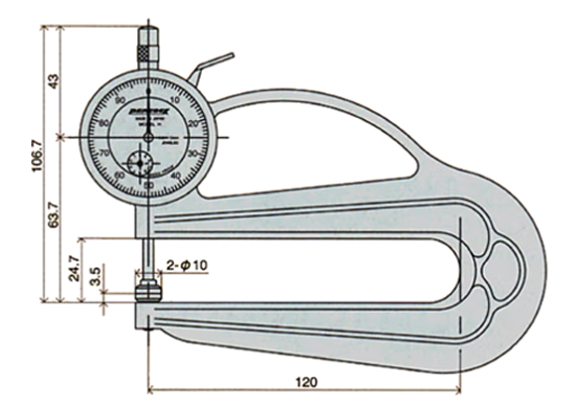

Dimensional drawings

Peacock H-1.8N Pin Disc Thickness Gauge Details Figure 1

FAQ
QTest flannel, the contact surface below is φ 10mm, does the pointer meet the requirements?
A PEACOCK H-1.8N This one is OK.
