Japan PEACOCK Peacock G-1.8N Percent Thickness Gauge

SE
0~10Mm thickness measurement range, accuracy 0.01mm, throat depth 20mm.
$138.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con
Similar products

PEACOCK G-1.8N Thickness GaugeSPEC

PEACOCK G-1.8N Thickness GaugeDetails

PEACOCK G-1.8N Thickness GaugePacking list

SKU
NB040055
Measurement Range
0~10mm
measurement Accuracy
0.01mm
Determination of laryngeal depth
20mm
Accuracy
±10μm
Measuring pressure
Below 1.8N
Drilling style
Pottery and porcelain disc diameter 10mm
Drilling parallelism
5μm
G-1.8N
Thickness Gauge
0~10Mm thickness measurement range, accuracy 0.01mm, throat depth 20mm.

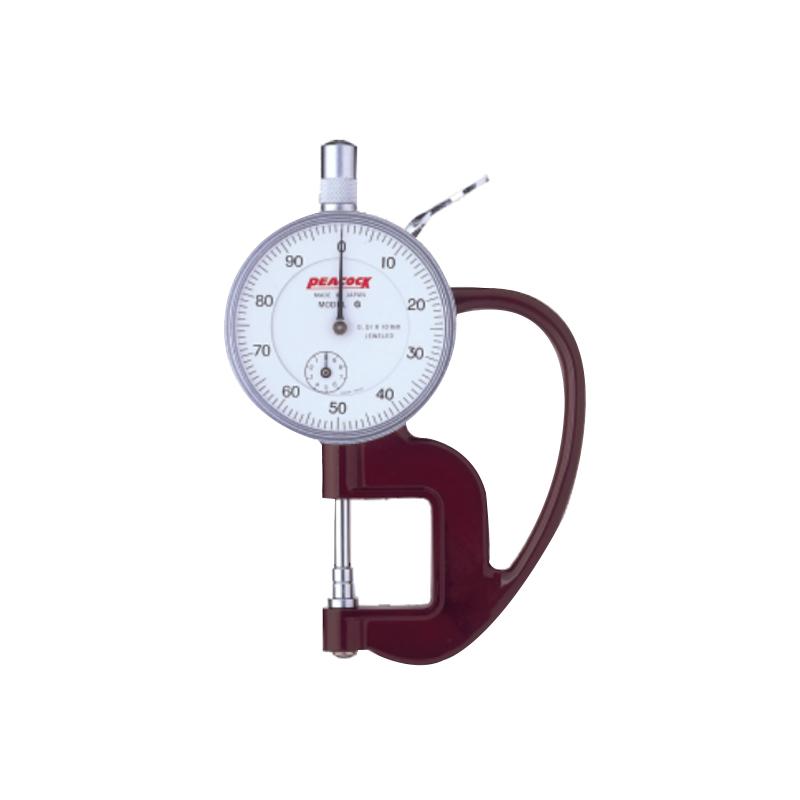

Japan PEACOCK Peacock G-1.8N Percent Thickness Gauge Picture

Introduction

Japanese peacock thickness table G-1.8N, is a 20mm deep throat model, accuracy 0.01mm, ceramic flat probe.

Features

  • The metal press handle allows for smooth and effective measurement

  • The dial scales are clear, and the readings are clear

  • Ceramic measuring head, wear-resistant and non-leaking

Application

The Thickness Gauge is suitable for measuring the thickness of rubber, plastic, fabric, paper, leather, adhesive tape, film and other samples.

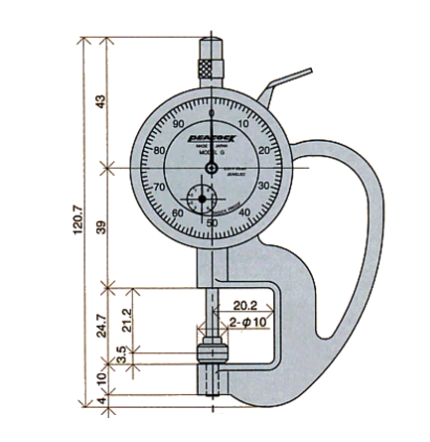

Dimensional drawings

Peacock G-1.8N Thickness Gauge Details Figure 1

FAQ
QIs this device waterproof? Usually wash it if it is dirty.
A It's OK to wipe, don't rinse directly against water.
