Japan

PEACOCK Peacock G-6C Thickness Gauge Thickness Gauge

SE
0~1Mm thickness measurement range, accuracy 0.001mm percentile, pressure 1.8N, can measure film, tape thickness.
$288.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con
Similar products

PEACOCK G-6C Thickness GaugeSPEC

PEACOCK G-6C Thickness GaugeDetails

PEACOCK G-6C Thickness GaugePacking list

SKU
NB040056
Measurement Range
0~1mm
measurement Accuracy
0.001mm
Determination of laryngeal depth
20mm
Accuracy
±5μm
Measuring pressure
Below 1.8N
Drilling style
Disc diameter 5mm
Drilling parallelism
3μm
G-6C
Thickness Gauge
0~1Mm thickness measurement range, accuracy 0.001mm percentile, pressure 1.8N, can measure film, tape thickness.

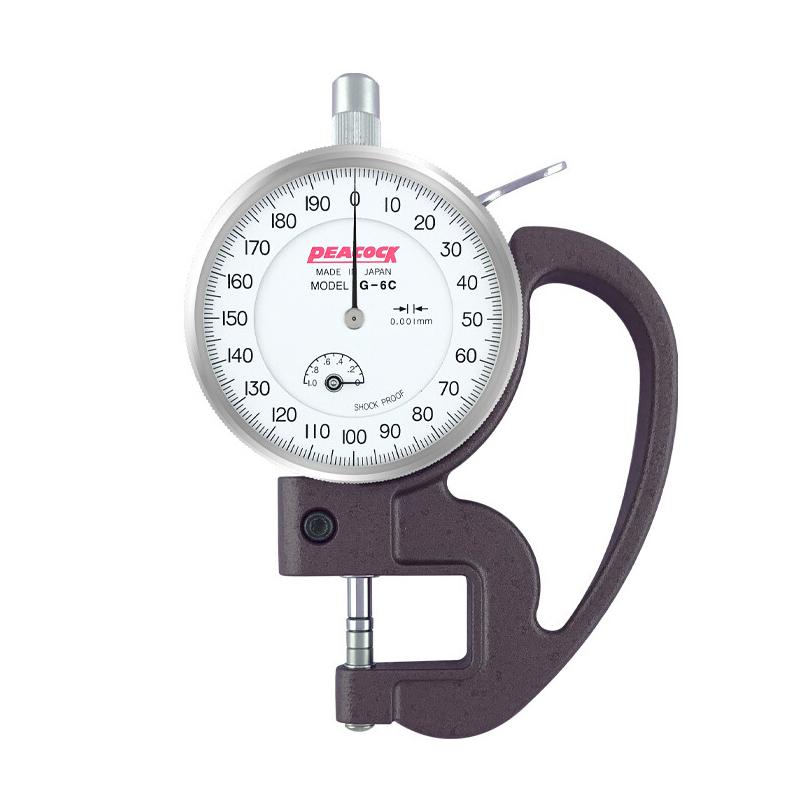

PEACOCK Peacock G-6C Thickness Gauge Thickness Gauge Picture

Introduction

Japanese peacock Thickness Gauge G-6C, accuracy 0.001mm, suitable for thickness measurement of precision small objects, film, special fabrics.

Features

  • The metal press handle allows for smooth and effective measurement

  • The dial scales are clear, and the readings are clear

  • Metal measuring head, wear-resistant and non-leaking

Application

The Thickness Gauge is suitable for measuring the thickness of rubber, plastic, fabric, paper, leather, adhesive tape, film and other samples.

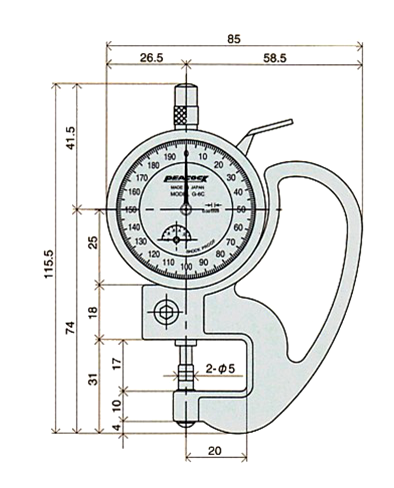

Dimensional drawings

Peacock G-6C Pin Disc Thickness Gauge Detail Figure 1

FAQ
QCan this one measure Coating thickness 15-300um?
A This is not for coating.
