YIHENG DHG-9140 Forced Air Drying Oven Power 2050W

DHG-9140

Drying Oven

With reliable temperature control (RT + 1 0 2 0 ℃， +/- 1.0 ℃ Temperature Fluctuation, 0.1 ℃ Temperature resolution) and Temperature uniformity （ +/- 3%), large volume (136L), high input Power (2050W) and flexible Timer Range (15999 minutes), Net weight 68kg, gross weight 105Kg, and equipped with 2 shelves. Suitable for Operating Environmental temperature from 5 to 40 ℃.

Introduction of DHG-9140 Forced Air Drying Oven

DHG-9140 Forced Air Drying Oven is Yiheng's popular DHG Forced Air Drying Oven, which uses a galvanized inner tank with a volume of 136L. The input power of DHG-9140 Forced Air Drying Oven is 2050W, and the temperature control range is 10~200°C.

Features

1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of high-quality steel plate, which is beautiful and novel.

2. Adopt a microcomputer PID temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.

3. The hot air circulation system is composed of a fan that can operate continuously at high temperature and a suitable air duct to improve the temperature uniformity in the working room.

4. The DHG-9140 Forced Air Drying Oven adopts a new type of synthetic silicon sealing strip, which can run at high temperature for a long time, has a long service life and is easy to replace.

5. The air intake and exhaust volume in the box can be adjusted from the temperature control panel.

6. Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, so as to ensure the safe operation of the experiment without accidents. (optional)

7. It can be equipped with a printer or RS485 interface, used to connect a printer or computer, and can record the change of temperature parameters. (optional)

Optional

1. Multi-segment programmable temperature controller

2. Independent temperature limit controller

3. RS485 interface and communication software

4. Embedded printer

5. Diameter Ф25mm test hole

6. U disk data storage

7. Wireless alarm system (SMS alarm system)

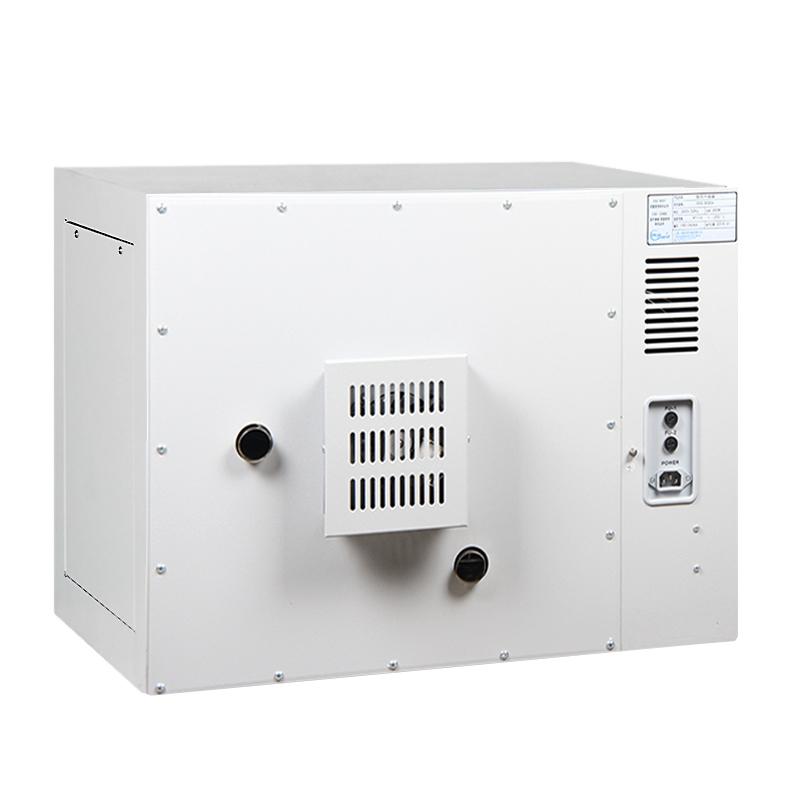

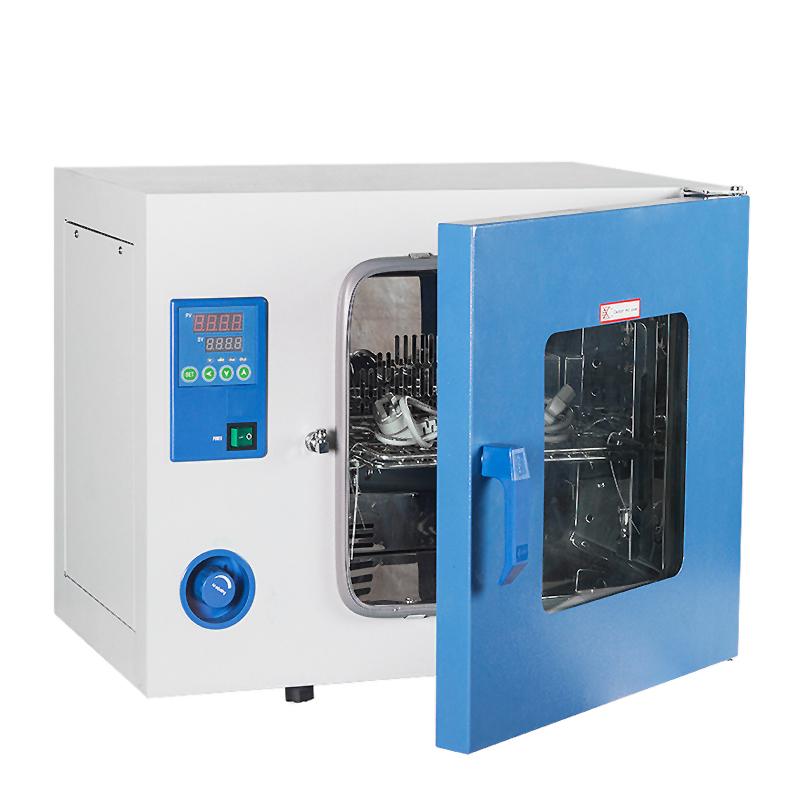

Pictures

Packing list： host x1, instruction manual x1, packing list x1, warranty x1, warranty card x1, fuse x2, shelf x2, communication data cable x1, software CD x1, printing paper x1, U disk x1, UV lamp x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
