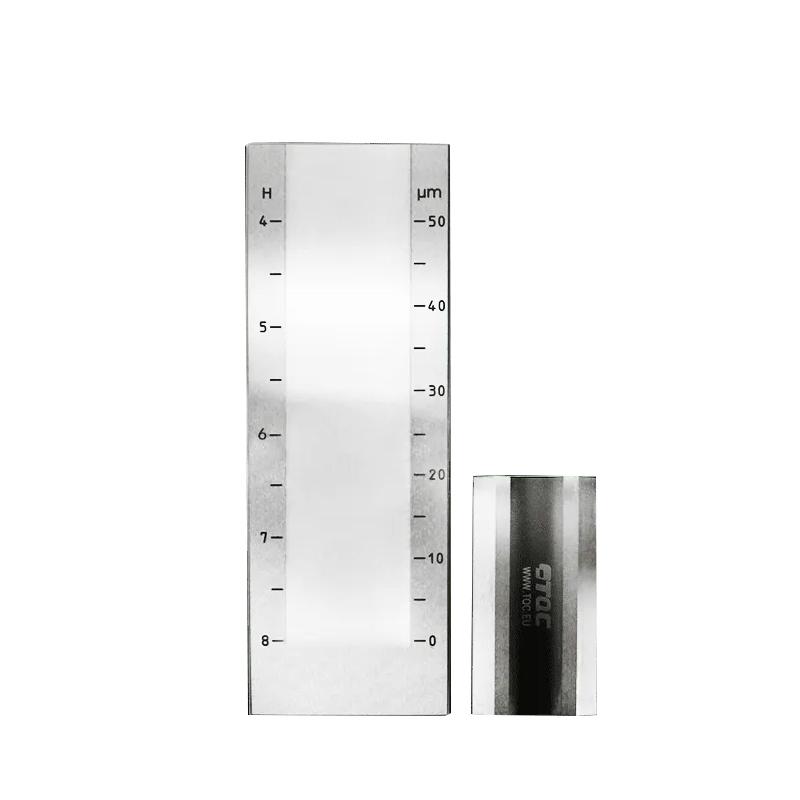

TQCsheen VF2141 single-channe Fineness gauge Range 0~5000μm
SESingle-channe, range 0~5000μm, groove width 12mm, custom groove depth.
$2197.00/piece
PromotionLoading...
Coupon
Model：
VF2141
TQC sheen VF2141 Fineness gaugeSPEC
TQC sheen VF2141 Fineness gaugeDetails
TQC sheen VF2141 Fineness gaugePacking list
- SKU
- NB040104
- Scraper type
- Single-channe
- Number of grooves
- 1
- range
- 0~5000μm
- Scale unit
- μm
- Accuracy
- 2μm
- Scraper size
- 175x60x12mm
- groove length
- 120mm
- Drawdown blade size
- 75x38x8mm
- scraper material
- Hardened stainless steel
- Drawdown blade material
- Hardened stainless steel
- Applicable standards
- ASTM D 1210、ASTM D 1316、JIS K 5600-2-5、ISO 1524、DIN EN 21524、BS 3900-C6
- Calibrated Certificate
- Yes.
- slot width
- 12mm
VF2141
Fineness gauge
Single-channe, range 0~5000μm, groove width 12mm, custom groove depth.
Introduction
The TQC FM15/2 DIN-ISO Grindometer is a precision instrument used to determine the particle size and fineness of many materials such as paints, varnishes, pigments, fillers, chocolates, etc. Most TQCSheen fineness plates have double grooves and are available in three different units of measurement: μm (micrometer), NS (Hegman), and PCU. The gauge and bevel scraper are made of hardened stainless steel with an accuracy of 2μm.
Meets standards
ASTM D 1210、ASTM D 1316、JIS K 5600-2-5、ISO 1524、DIN EN 21524、BS 3900-C6
