TQCsheen VF2143 single-channe Grindometer Range 0~1000μm
SESingle-channe, range 0~1000μm, length 250mm.
$2177.00/piece
PromotionLoading...
Coupon
Model：
VF2143
TQC sheen VF2143 Fineness gaugeSPEC
TQC sheen VF2143 Fineness gaugeDetails
TQC sheen VF2143 Fineness gaugePacking list
- SKU
- NB040106
- Scraper type
- Single-channe
- Number of grooves
- 1
- range
- 0~1000μm
- Scale unit
- μm
- Accuracy
- 2μm
- Scraper size
- 175x60x250mm
- groove length
- 250mm
- Drawdown blade size
- 75x38x8mm
- scraper material
- Hardened stainless steel
- Drawdown blade material
- Hardened stainless steel
- Applicable standards
- ASTM D 1210、ASTM D 1316、JIS K 5600-2-5、ISO 1524、DIN EN 21524、BS 3900-C6
- Calibrated Certificate
- Yes.
VF2143
Fineness gauge
Single-channe, range 0~1000μm, length 250mm.
Introduction

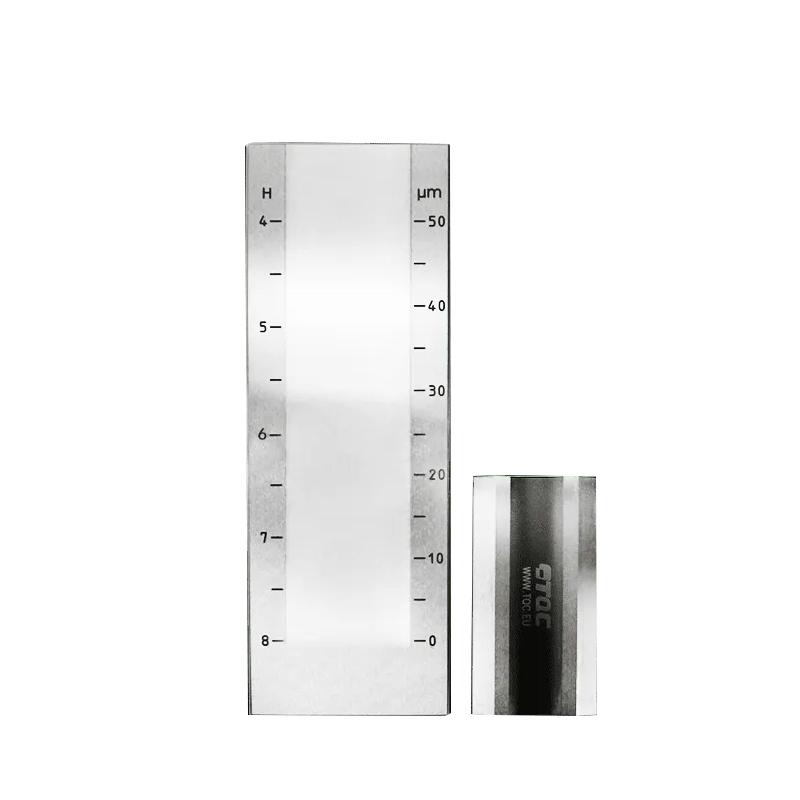

The TQC FM15/2 DIN-ISO Grindometer is a precision instrument used to determine the particle size and fineness of many materials such as paints, varnishes, pigments, fillers, chocolates, etc. Most TQCSheen fineness plates have double grooves and are available in three different units of measurement: μm (micrometer), NS (Hegman), and PCU. The gauge and bevel scraper are made of hardened stainless steel with an accuracy of 2μm.
Meets standards
ASTM D 1210、ASTM D 1316、JIS K 5600-2-5、ISO 1524、DIN EN 21524、BS 3900-C6
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
