CHINA microcomputer Bending Stiffness Tester NBC-WQTD

SE
It is suitable for measuring the bending stiffness of Paper, Cardboard and other sheet-like non-metallic materials with Film thickness less than 2mm, measuring range 15~ 10000mN, accuracy below 50mN ± 0.6mN, remaining ± 1%, resolution 0.1mN, indication variability ≤ 1%
Model：
Contact
Details SPEC
Similar products

HuiTai NBC-WQTD Microcomputer Bending Stiffness TesterSPEC

HuiTai NBC-WQTD Microcomputer Bending Stiffness TesterDetails

HuiTai NBC-WQTD Microcomputer Bending Stiffness TesterPacking list

SKU
NB040156
Measuring range
15 ~ 10000mN
Accuracy
Below 50mN ± 0.6mN, remaining ± 1%
resolution
0.1mN
Indication of variability
≤1%
bending length
50mm、25mm、20mm、15mm、10mm、5mm(±0.1mm)
Bending angle
Adjustable from 0 to 90℃, commonly used (15 ± 0.3) ℃, (7.5 ± 0.3) ℃
Load arm length
200°±20°/min
printout
Modular integrated thermal printer
Display
5In touch screen display
printout
Modular integrated thermal printer
Operating Environment
Temperature (20 ± 10) ℃, humidity < 85%
Dimensions
340*330*340mm
Instrument Weight
About 15kg
NBC-WQTD
Microcomputer Bending Stiffness Tester
It is suitable for measuring the bending stiffness of Paper, Cardboard and other sheet-like non-metallic materials with Film thickness less than 2mm, measuring range 15~ 10000mN, accuracy below 50mN ± 0.6mN, remaining ± 1%, resolution 0.1mN, indication variability ≤ 1%

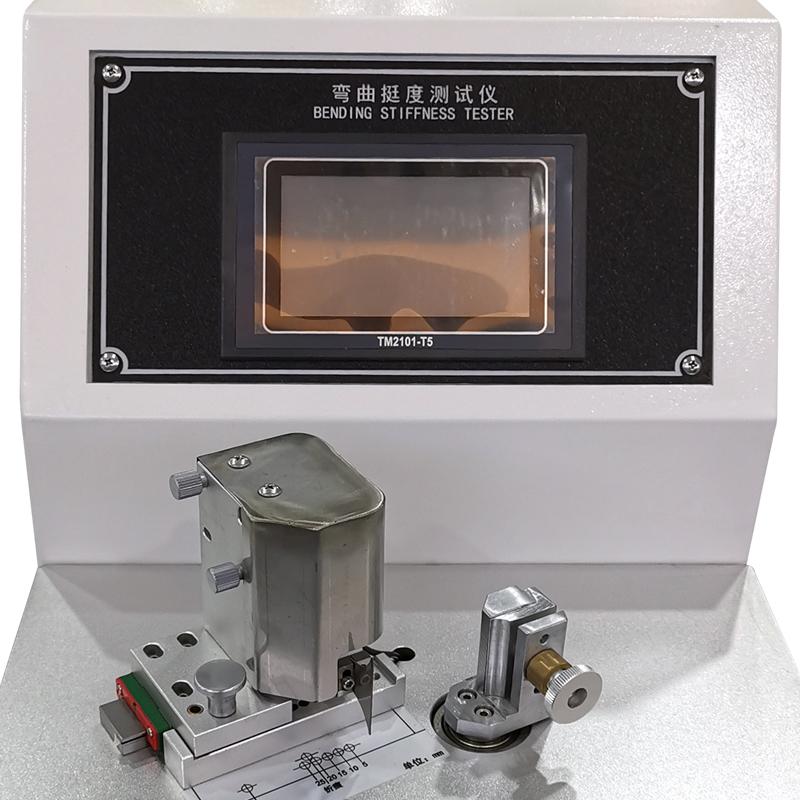

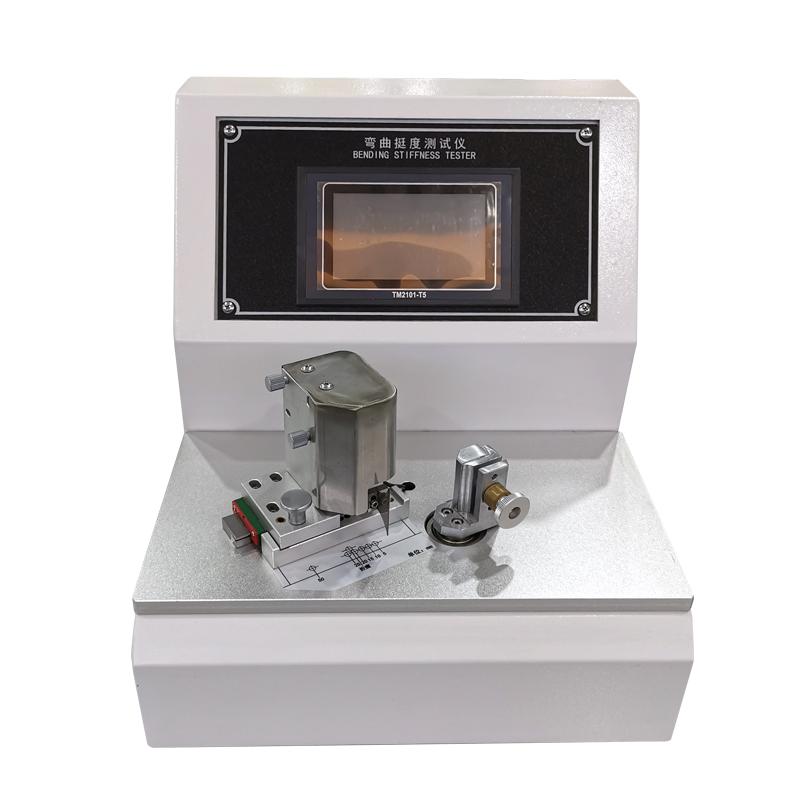

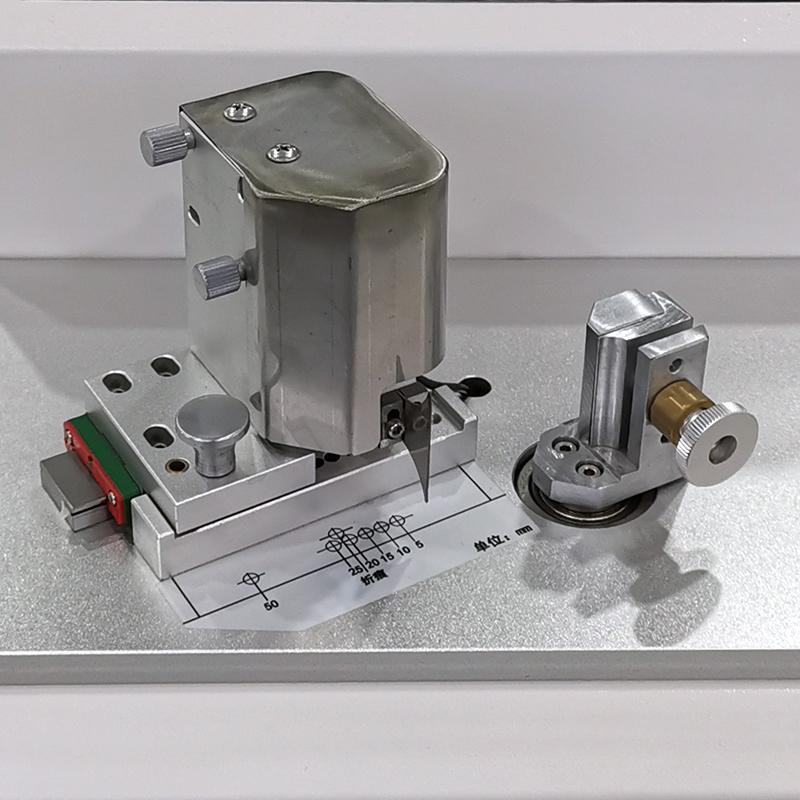

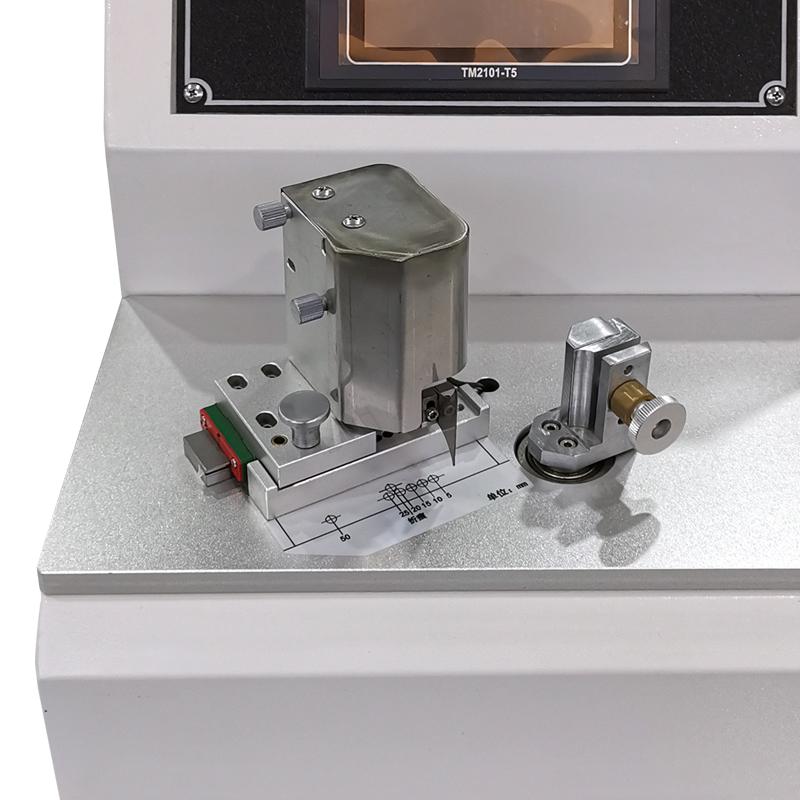

CHINA microcomputer Bending Stiffness Tester NBC-WQTD Picture

Applications

The microcomputer Bending Stiffness Tester is an intelligent computerized stiffness Tester, which is suitable for measuring the bending stiffness of paper, cardboard and other strong sheet non-metallic materials with a thickness of less than 2mm. The main Specifications of the instrument conform to the relevant provisions of ISO2493 "Determination of Stiffness of Paper and Cardboard" and GB/T2679·3 "Determination of Stiffness of Cardboard".

technical characteristics

The angle can be set arbitrarily between (1~90)°, and the test time can be set arbitrarily within the specified range (3s~35s). Equipped with automatic zero-adjustment test function, it is a 5.7in liquid crystal display curve graph automatic stiffness Tester launched in CHINA, which can display stiffness and time curve in real time, which is easy and convenient to operate. This instrument has the functions of various parameter testing, display, memory, statistics and printing included in the standard, and provides scientific data analysis for cardboard bending stiffness testing.

Executive standard

14GB/T 2679.3 "Determination of Stiffness of Paper and Cardboard"

15GB/T 23144 "General Principles for Determination of Static Bending Stiffness of Paper and Board"

16ISO 5628 "Paper and board - General principles for the determination of static flexural stiffness"

17ISO 2493 "Paper and board - Determination of bending stiffness"


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
