Specifications
| Coating speed | 5~ 180Mm/s (< 5mm/s can be customized) |
| Coating size | 300*400mm |
| Spreader speed | Digital display, different speeds |
| Vacuum Area | 300 * 400Mm (can be customized) |
| Vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Film applicator | 1 Imported Wire Bar and Jenner Film Applicator |
| Host Power | 220V 50Hz |
| Dimensions | 630*410*520mm |
| Weight | 65kg |
| speed control | Infinitely variable speed |
| Bottom plate material | aluminum alloy |
| Heating temperature range | RT+~200℃ |
| Temperature Uniformity | ±3℃ |
| Power | 1500W |
| Vacuum pump size | 380*180*280mm |
| Optional | Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| Customizable function | Jet system device, UV solid-containing device, automatic inking system |
| Standard configuration | Air knife + air knife bracket |
Packing list

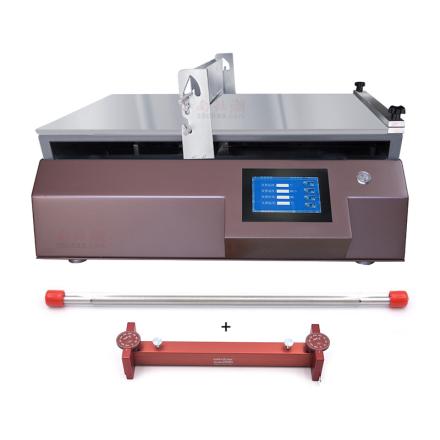

Film Applicator X1, External Vacuum Pump X1, Imported Wire Rod X1, China Wire Rod X1, Product Manual X1, Jeaner Film Applicator x1
After-sales instructions
None
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/40231/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
