LANDTEK CM8825N Handheld Thickness Gauge Integrated Handheld Thickness Gauge

CM8825n

Coating Thickness Gauge

Built-in probe, eddy Current principle; 1250μm; RS232 interface; automatic memory calibrating and identification substrate; RS232 interface; hand-held part groove design.

Introduction

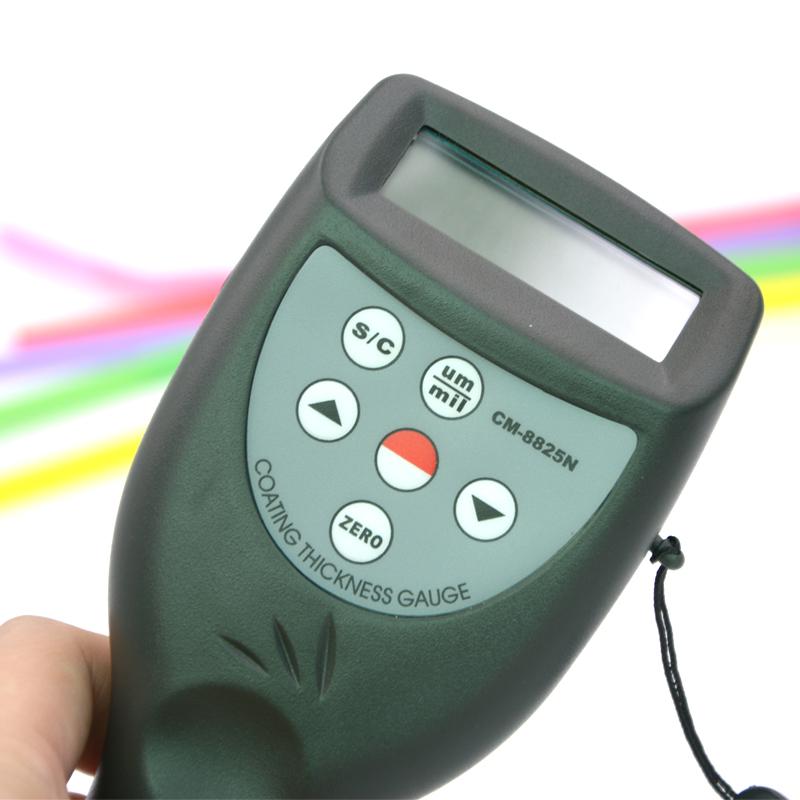

 LANDTEK CM8825n Handheld Thickness Meter is an integrated sensor hand-held coating thickness measuring instrument, which adopts the principle of eddy current thickness measurement and is used to measure the thickness of non-conductive coatings on non-ferrous metal surfaces. The CM8825n hand-held Thickness Gauge is a button-type operation. There are seven operation buttons on the operation panel, and there is a design depression on the grip part of the measuring finger, which can prevent the hand from slipping and measure the thickness of the coating more stably.

Applications

Thickness Gauge Function

CM8825n hand-held Thickness Gauge is used to measure the thickness of non-conductive coating on non-magnetic metal substrate.

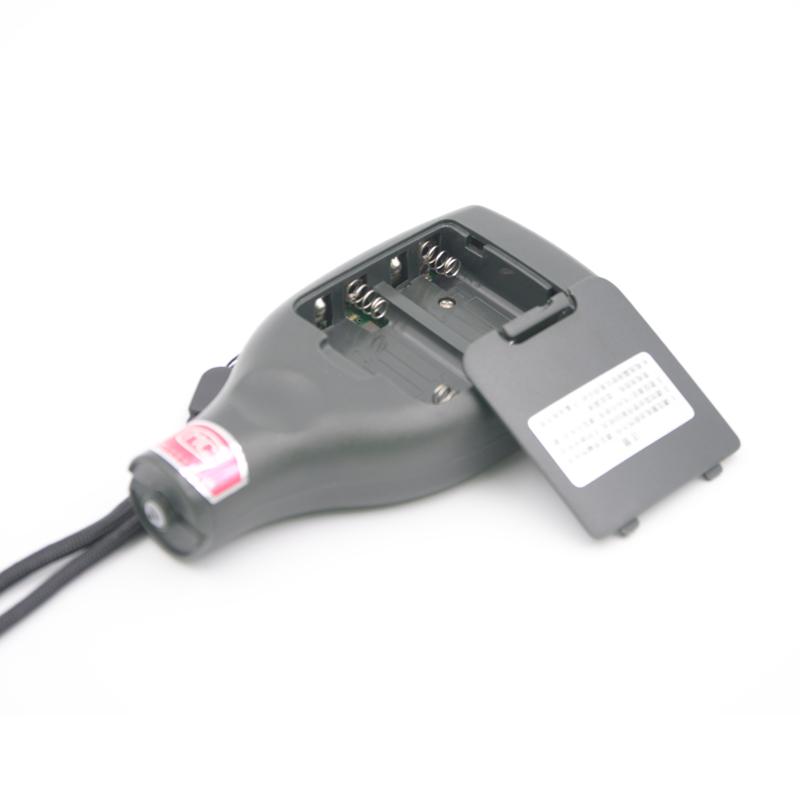

Detail image

Handheld Thickness Gauge Features

*Lantek CM8825n Handheld Thickness Gauge has two optional measurement methods: single and continuous.

* Metric/Imperial unit conversion.

* CM8825n hand-held thickness meter has functions such as manual shutdown, automatic shutdown and underVoltage prompt.

* Automatically memorize the calibration value and automatically identify the material of the measured substrate.

* There is a buzzer sound during operation, but the buzzer does not sound during continuous measurement.

* CM8825n handheld Thickness Gauge adopts USB data line output, RS-232C data connection line and software to communicate with PC.

* Optional Bluetooth™ data output option is also available.

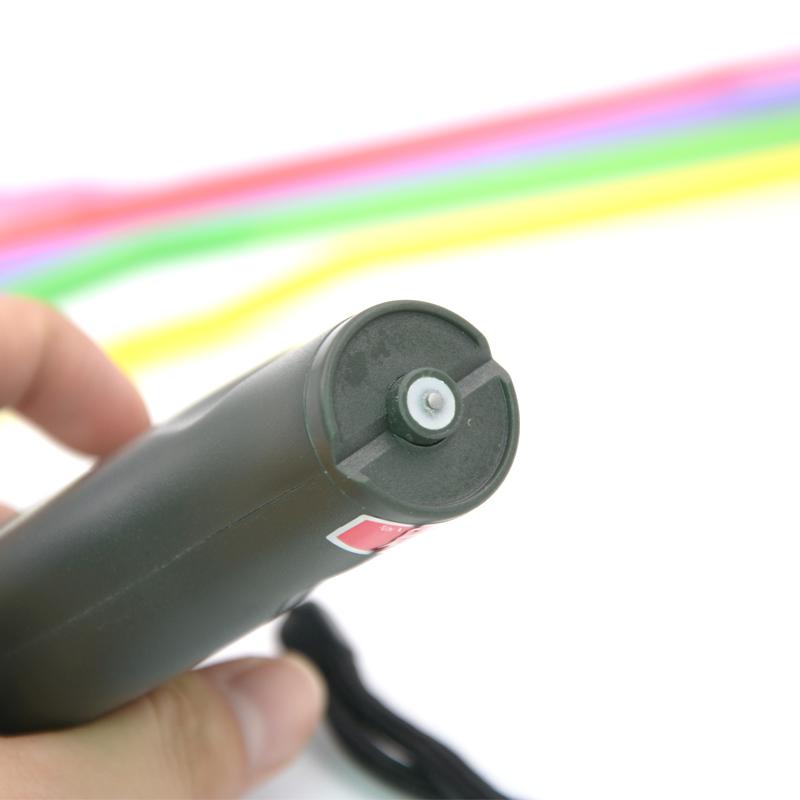

* The integral instrument is suitable for one-handed operation, with a "big probe", and a large contact surface for better stability, and the results are accurate and repeatable.

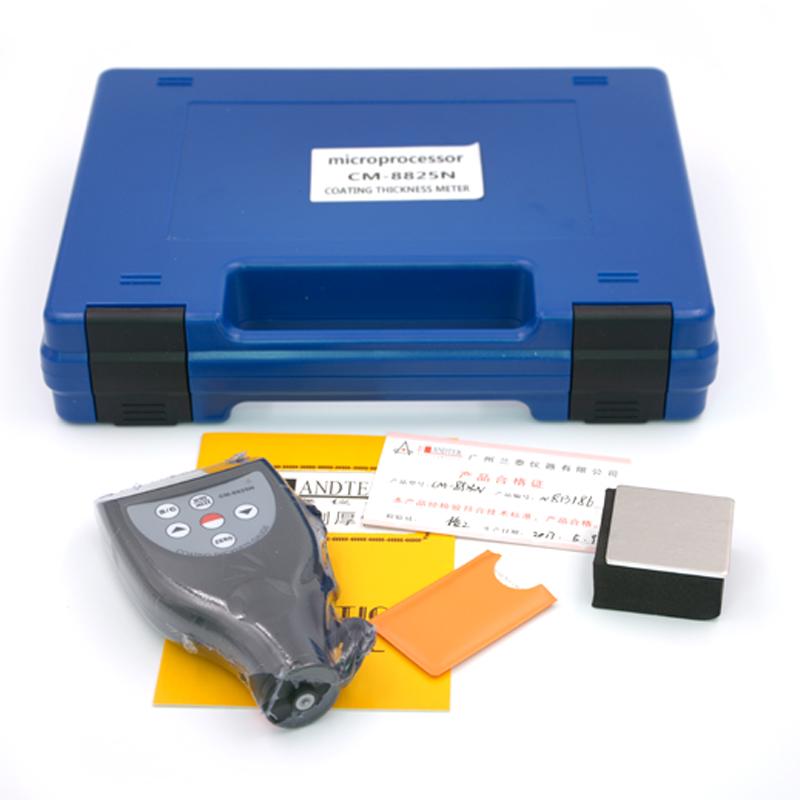

Standard accessories

1. Host..................................... 1 set

2. Reference block (iron base/aluminum base) CTG-BS ...... 1 each

3. Calibration diaphragm CTG-CF ......... 1 set (4 pieces)

4. Carrying case....................................1

5. Instructions...................................1 copy

optional accessories

1. USB, RS-232 cable and software

2. Bluetooth communication and software

List of models of the same series

Packing list：Host x1, reference block (iron/aluminum) CTG-BS each x1, calibrated diaphragm CTG-CFx1, portable box x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
