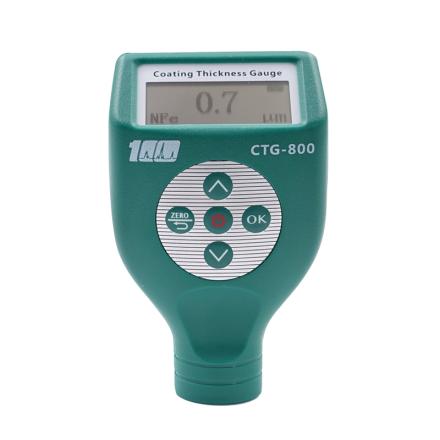

YiBai CTG-800-1500FN Integrated dual-use Standard Coating Thickness Gauge Specifications
Search
Brand：YiBai
Model：CTG-800-1500FN Integrated dual-use Standard
Name：Coating Thickness Gauge
Specifications
| Measurement principle | Magnetic induction + eddy current |
| Measuring range | 0 ~ 1500m |
| margin of error | ±2% |
| resolution | 0.1mm | 1mm |
| Minimum radius of curvature | F: convex: 1.5mm/concave 25mm; N: convex: 3mm/concave 50mm |
| thinnest matrix | 0.3mm |
| Test environment | Non-magnetic coating on magnetic substrates |
| probe | Integrated probe |
| Power | 2 AA batteries (AAA) |
| Display screen | 4-Bit digital backlight LCD |
| Operating Temperature | -10-50℃ |
| Relative Humidity | ＜80% |
| Total Weight | 54G (without battery) |
| Complete-built unit size | 101*61*26mm |
Packing list
Host X1, standard piece X6, base X2, manual X1, battery X2, warranty card X1, certificate X1, portable case X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/40404/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
