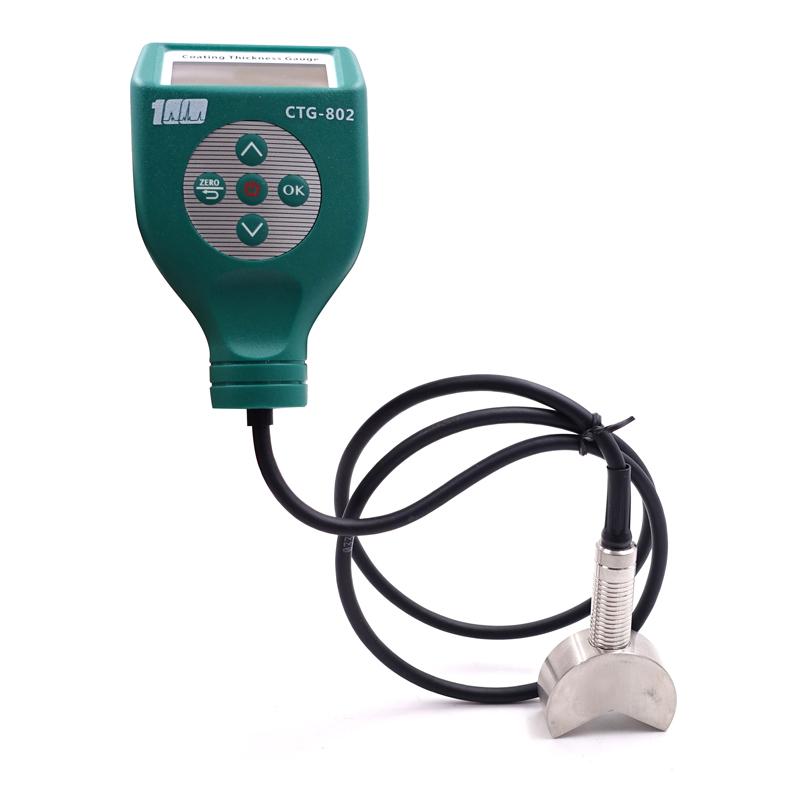

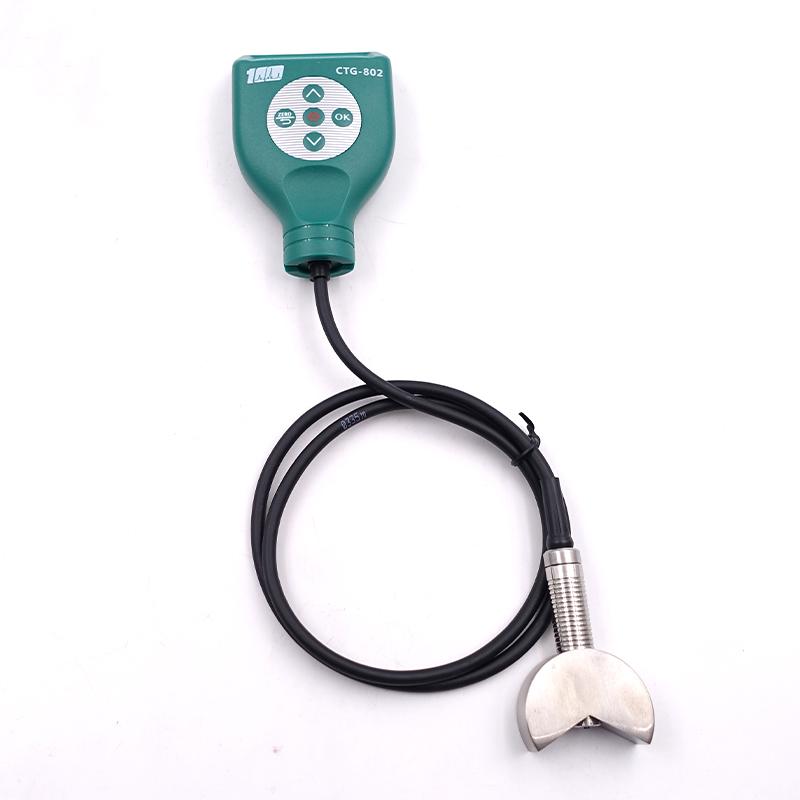

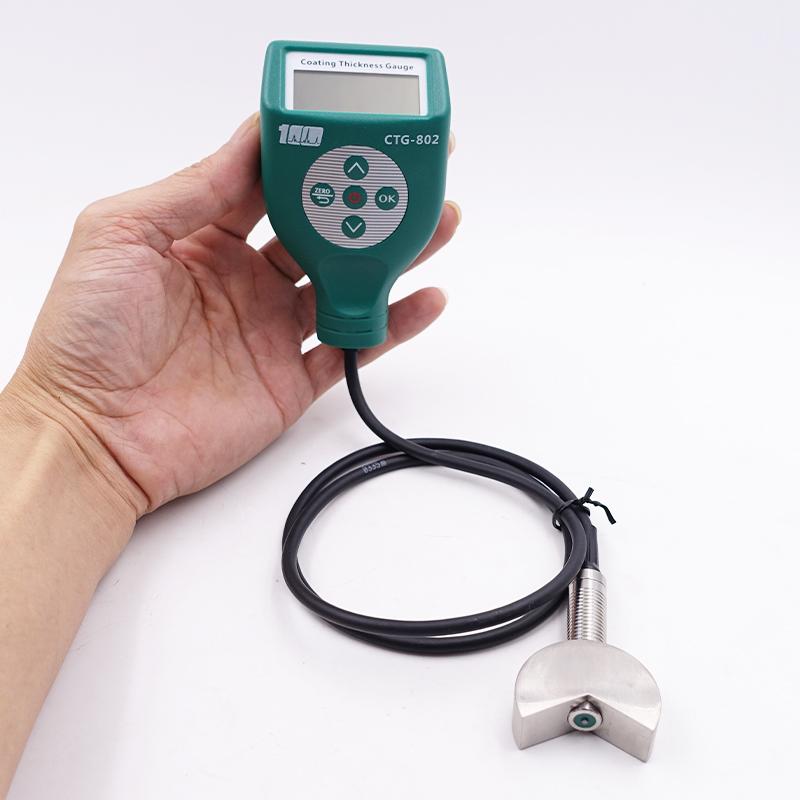

CHINA CTG-802-1500FV cylindrical coating Thickness Gauge, split iron-based large V type, suitable for surface measurement

CTG-802-1500FV split iron-based large V type

Coating Thickness Gauge

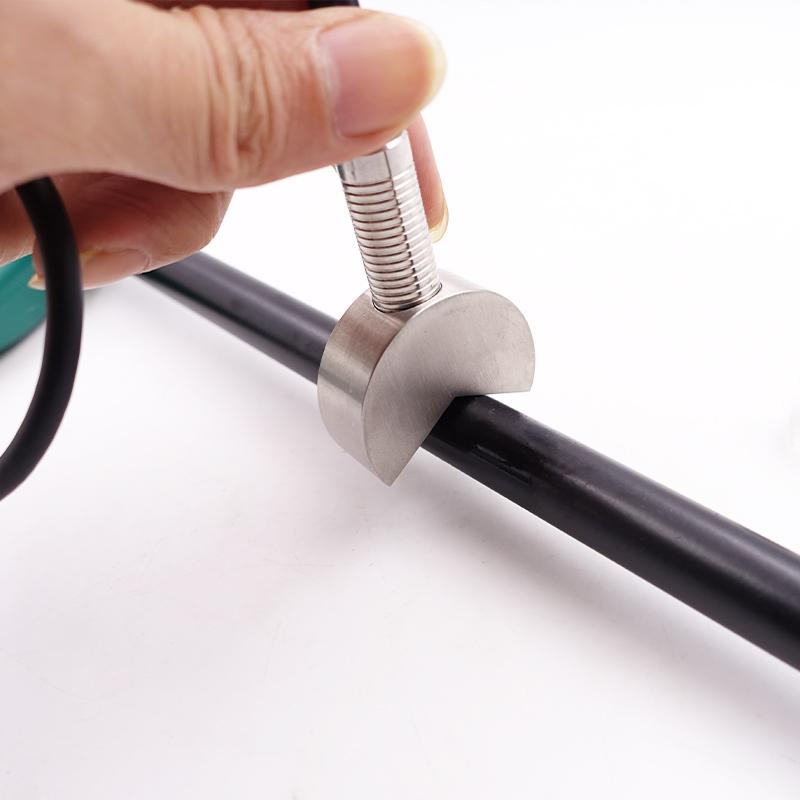

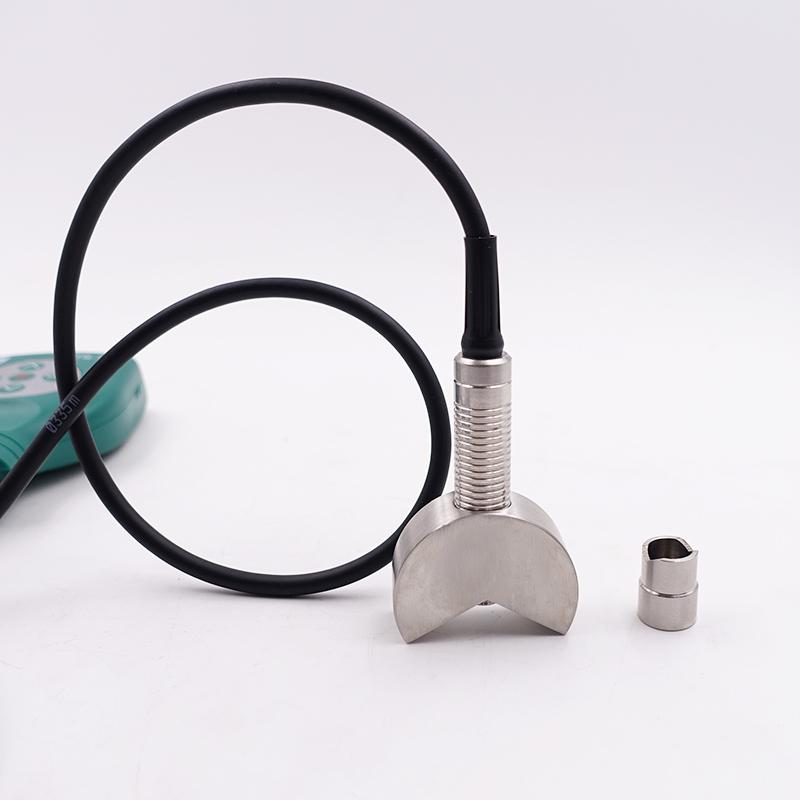

V probe is suitable for cylindrical measurement, range 1500 μm, magnetic induction principle, split probe, measurement accuracy ± 2%, super wear-resistant carbide probe, measurement speed up to 0.3 seconds/time.

Introduction

This instrument is a split-type coating Thickness Gauge for iron and aluminum, which can automatically identify the substrate, and adopts the technology of magnetic induction and eddy current automatic conversion. The measurement method complies with international standards ISO2178, ISO2360 and national standards GB4956, GB4957. It can quickly, non-destructively and precisely measure the thickness of the coating and plating, and can be used in both the laboratory and the engineering site. This instrument is widely used in manufacturing, metal processing, chemical industry, commodity inspection and other detection fields, and is a necessary instrument for material protection.

Features

* Using the magnetic thickness measurement method, the thickness of the non-magnetic coating (such as aluminum, chromium, copper, zinc, enamel, rubber, paint, etc.) on the magnetic metal substrate (such as steel, iron, alloy and hard magnetic steel, etc.) can be measured non-destructively powder, etc.).

* The spring guide sleeve probe with super wear-resistant carbide probe can ensure that the probe has constant pressing force and stable sampling value when measuring on hard or rough surfaces, and the probe is 50% wear-resistant More than ten thousand times.

* The measurement speed can reach 0.3 seconds/time.

* High precision, good stability, can measure 1-5μm ultra-thin coating.

* Wide measuring range and high resolution.

* Light touch measurement accuracy is good.

* Can quickly and automatically identify magnetic and non-magnetic substrates.

* Integrated structure, small size and light weight.

* Dot matrix backlight display, no parallax, suitable for night use.

* The instrument is equipped with an automatic shutdown function to save power.

Packing list：Host X1, standard piece X6, base X1, manual X1, battery X2, warranty card X1, certificate X1, portable case X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
