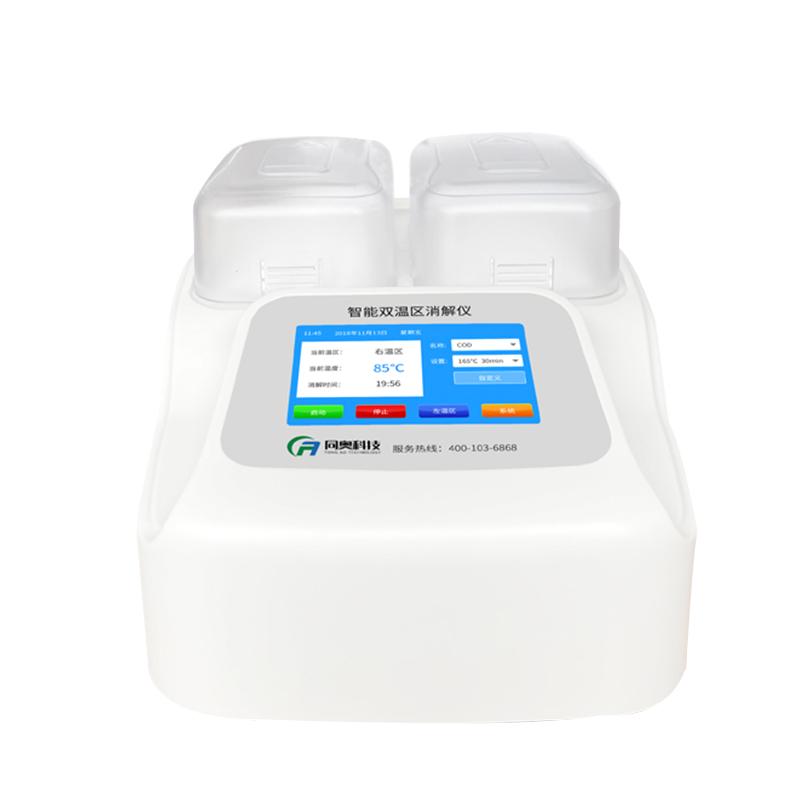

TONGAO TRD-30S Multifunctional Intelligent Dual Temperature Zone Digestion Instrument
SE
TRD-30S
TongAo TRD-30S Multifunctional intelligent dual temperature zone digestion instrumentSPEC
TongAo TRD-30S Multifunctional intelligent dual temperature zone digestion instrumentDetails
TongAo TRD-30S Multifunctional intelligent dual temperature zone digestion instrumentPacking list
- SKU
- NB040423
- digestion sample
- 30 holes (double temperature zone, 15 holes * 2)
- Digestion aperture/depth
- 16mm/65mm
- Number of temperature zones
- 2 (independent operation)
- digestion Capacity
- >12mL

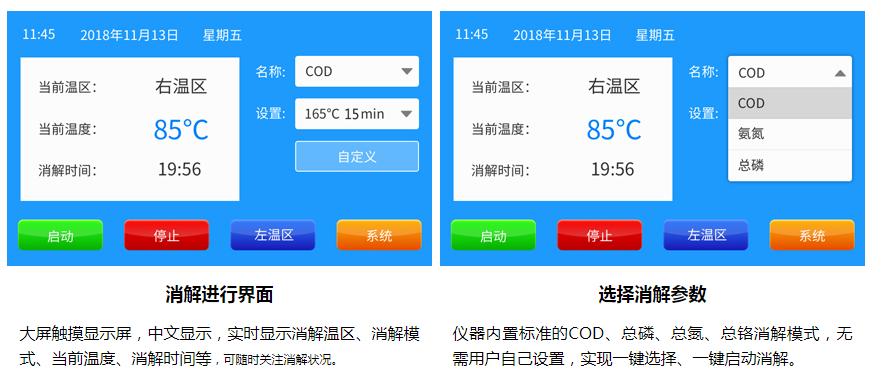

- display interface
- Chinese/English display (optional)
- Default digestion mode
- COD, total phosphorus, total nitrogen, total chromium
- Temperature control mode
- Intelligent PID temperature control

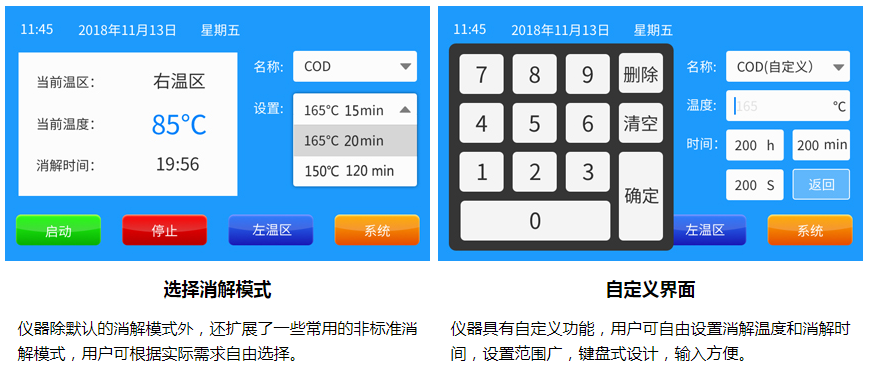

- Custom Mode
- 4, the temperature and time can be set arbitrarily
- Setup method
- Jiugongge keyboard direct input
- Custom Mode
- support
- Custom time
- 0-1080 min adjustable
- Thermostatic prompt
- support
- Digestion completion prompt
- support
- Time delay protection
- support
- Alarm mode
- Buzzer alarm
- safety protection
- Double anti-overtemperature protection
- Heating rate
- Set to 165 ℃, constant for 12 minutes
- digestion method
- Fully enclosed (transparent protective cover)
- Timer error
- 10min±0.1s
- Temperature control Accuracy
- <±0.5℃
- digestion protection
- Heat insulation and protective cover
- Time display
- Real-time date time display
- Project Switch
- shortcut
- Power requirements
- Three-wire jack
- Rated Voltage
- AC 220V±10%/50Hz
- Instrument Power
- 1380W
- Ambient Temperature
- -10-40℃，
- Relative Humidity
- Relative Humidity < 85% (non-condensing)
- Instrument Weight
- 5.4kg
- Dimensions
- 245*350*175（mm）
Introduction
TDR-30S multi-parameter dual-temperature zone digestion instrument is a water pollutant digestion device specially designed by Tongao for corporate pollution sources. The user can operate one or two of the digestion modules independently, and the temperature zones are controlled separately without interfering with each other. The digestion of parameters such as COD, Total phosphorus, Total nitrogen, and total chromium can be carried out at the same time, which solves the problem of digestion temperature and digestion time between various parameters. Different problems can increase the efficiency of user detection of water samples by more than 2 times. The instrument has built-in standard COD, Total phosphorus, Total nitrogen, and total chromium digestion modes, which can be started with one button without user settings; the instrument also has a custom mode, and users can freely set the digestion temperature and time according to their needs. The machine is multi-purpose.
