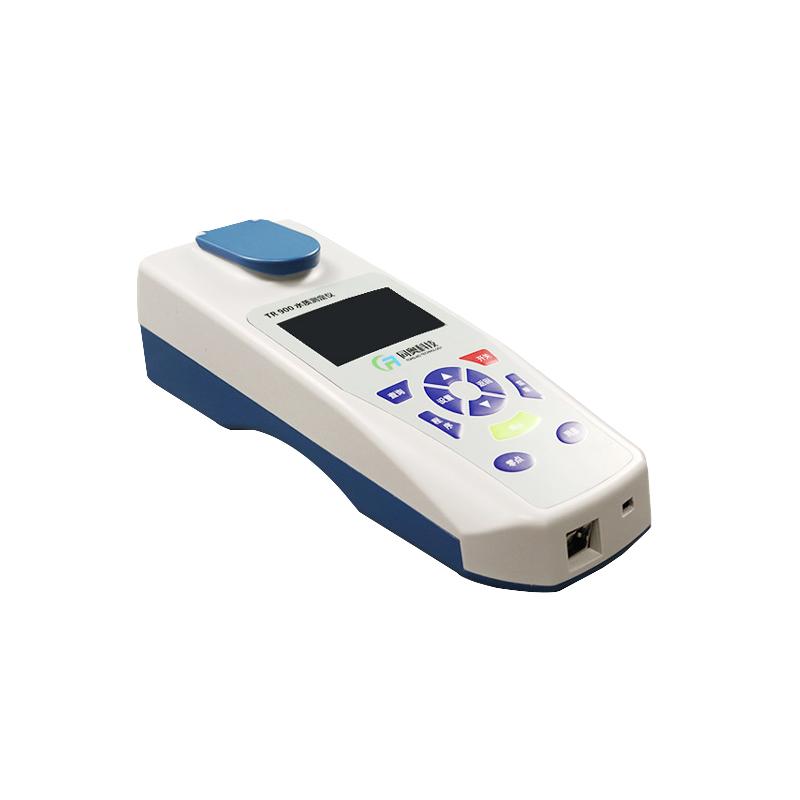

TONGAO TR-1000H Water Quality Suspended Solids Tester SS Tester

TR-1000H

Suspended solids meter

Detect the concentration value of suspended solids, the range is 5mg/L-500mg/L (measured in sections), no digestion is required, the detection time is 1 to 2 minutes, and the imported cold Light source conforms to the "National Standard Weight Method" standard.

Introduction

TR-1000H water quality suspended solids Tester is based on the trusted certification method - "national standard weight method" standard improved design, through the imported cold light source, narrowband interference technology, spectrophotometry to detect the absorbance of the sample at a specific light source wavelength, and then after the microcomputer automatic processing of the data, directly display the sample suspended solids concentration value, expressed in units mg/L.

No detection reagents are required, making the test simpler, faster, more accurate, and safer. With its small design, fast detection, simple operation and low cost, the instrument is widely used in emergency monitoring, sewage treatment, chemical industry, wastewater, food, printing and dyeing and other industries wastewater detection, and can also be used in wastewater research and use in scientific research units, colleges and universities.

Features

1. Wide detection range: dozens of detection parameters can be expanded, customized according to needs, and better resource utilization.

2. High sensitivity: the minimum display value can reach 0.001mg/L.

3. Advantages of light source: imported cold light source is adopted, with better optical performance, no preheating required, and a service life of up to 100,000 hours.

4. Intelligent operation: intelligent operation program to guide users to complete the operation easily.

5. Diversified testing methods: you can choose standard measurement or continuous measurement mode, and choose freely between speed and accuracy.

6. Low cost: the price of consumables is low and the amount is small.

7. Safe operation: the digestion and colorimetric integrated tube is adopted, which is simple, fast and safe for measurement.

8. Large-screen LCD screen display, direct reading of data, simple operation and time-saving.

Advantages of emergency detection

1. The instrument design is compact, box-packing, light weight, and easy to carry.

2. Supporting special detection reagents to reduce user operation as much as possible.

3. Support wireless Bluetooth printing, can print historical measurement data (optional Bluetooth printer).

4. It can store 4000 sets of historical measurement data.

5. Built-in large-capacity rechargeable lithium battery, and there is a residual power display, with low power and low power consumption, to achieve ultra-long standby. The digestion instrument has three power supply modes: mobile power supply, vehicle and 220V AC power for users to choose.

Online operation function

It supports network port, USB interface, and Bluetooth function, and can transmit data with PC or printer.

Software Advantages

1. Support Chinese/English display (optional), friendly and intelligent design, easy to operate.

2. Built-in system program and user program, which can add common test items to the user program for easy search.

3. It has the functions of data storage and power-off protection to prevent data loss and facilitate the query of historical measurement data.

4. Built-in standard working procedures, no need for user calibration and calibration.

5. Users can also develop their own user programs and reagents to adapt to different water conditions on different occasions.

6. There is a built-in help interface to explain the general precautions of the user's detection process.

7. It has a one-key factory reset function.

An example of an operation interface

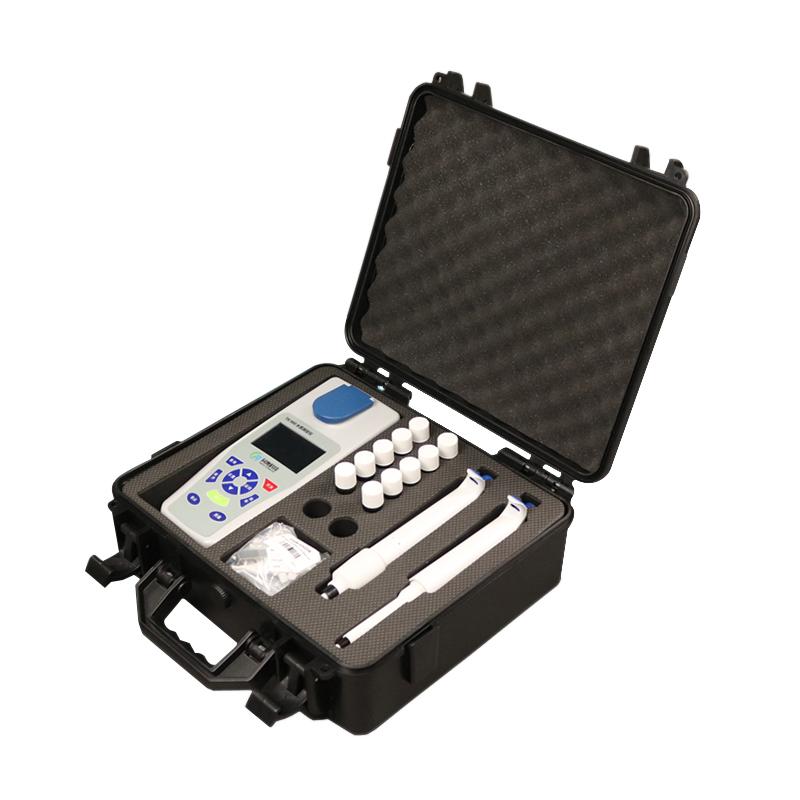

Packing list：Measuring host X1, Colorimetric tube X2, Colorimetric tube cleaning cloth X1, host power adapter X1, USB data cable X1, simple operation flowchart X1, instruction manual X1, certificate/warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
