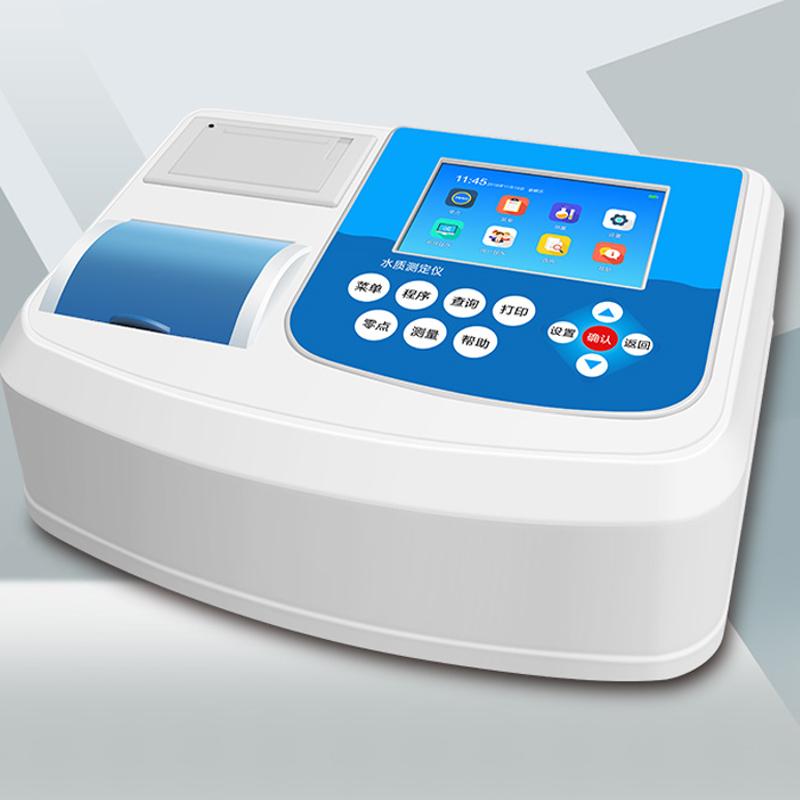

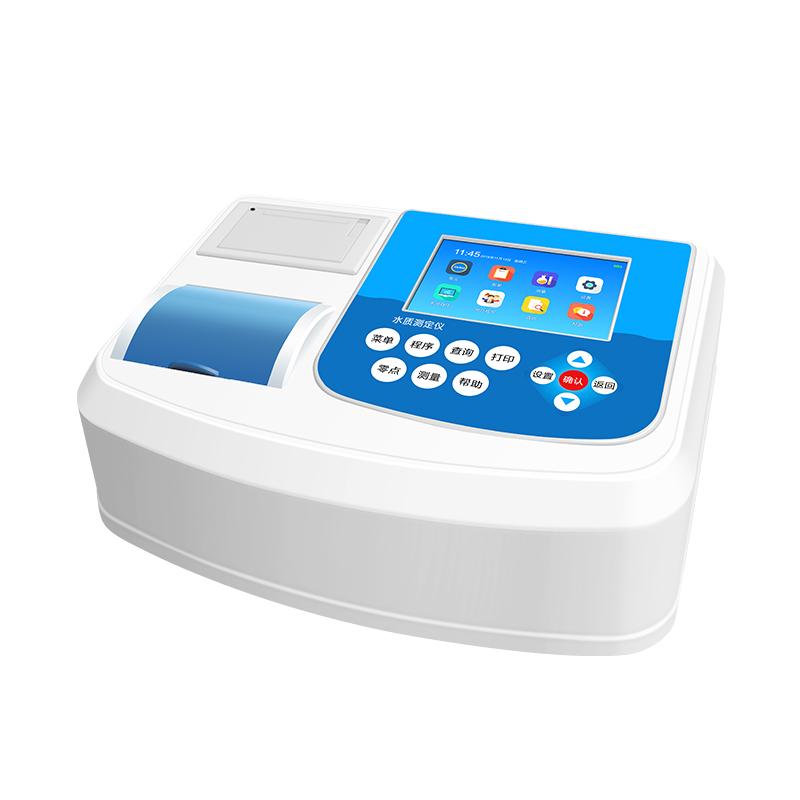

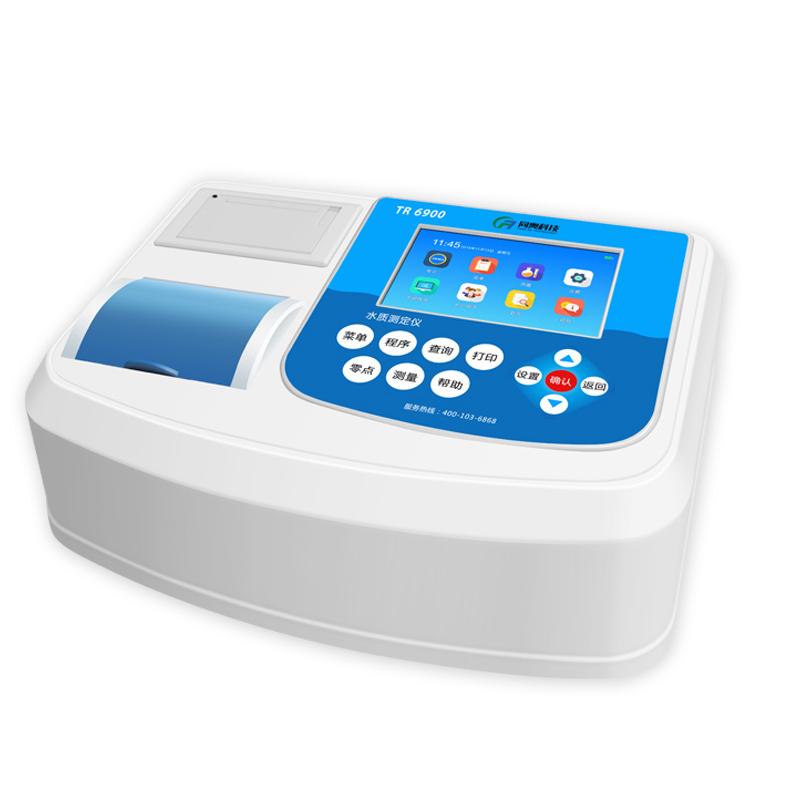

TONGAO TR 6900NH Benchtop Ammonia Nitrogen STIP-scan

TR 6900NH

Desktop STIP-scan

Detection of ammonia nitrogen content, range 0.01-50 mg/L, using HJ535-2009 detection method, built-in thermal printer, using digestion Colorimetric integrated tube.

Introduction

The instrument can quickly detect the ammonia nitrogen value in water, integrates mature technologies in the field of water quality analysis, makes the whole analysis system more perfect, the operation is simpler and faster, and the detection results are more stable and reliable. Widely used in emergency monitoring, industrial wastewater, domestic (CN) sewage, sewage treatment, pharmaceutical and chemical industry, food, beverage, textile printing and dyeing, electroplating, papermaking, petroleum metallurgy, river management, scientific research units, colleges and universities and other fields.

operating principle

The integrated digestion colorimetric tube and the multi-channel water quality rapid analyzer can be used seamlessly, and are compatible with φ25mm colorimetric tubes.

● The detection of each parameter conforms to national standards, industry standards or international standards.

●  The standard detection parameters are as follows:

- Ammonia nitrogen (NH3-N)

●  Strong scalability in the later stage, including but not limited to the following parameters:

- Total Phosphorus (TP) - Total Nitrogen

- Suspended matter - CODmn

- Turbidity - Phosphate

- Total chromium - Hexavalent chromium

- copper - iron

- Nickel - Zinc

- Nitrite ...

Principle

1. Digestion colorimetric integrated tube

The digestion and colorimetric integrated tube is used for operation, and the digestion of the sample and the reading of the result share a reaction tube, and there is no need to transfer the liquid to the cuvette for detection.

2. Display the result directly

A cold light source with a specific wavelength is used to measure the absorbance of the sample, and the instrument system converts the detection result directly into the sample concentration value through a specific algorithm.

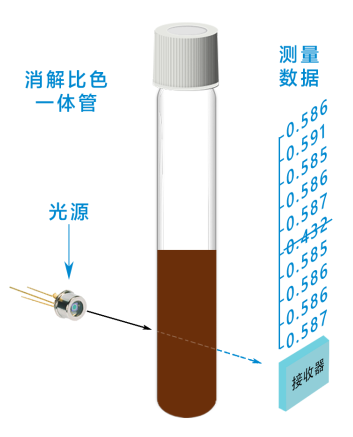

3. Measure multiple times and remove outliers

Measure the water sample 10 times or more, and take the average value after removing outliers, so as to reduce the influence of dirt, scratches, fingerprints or defective glass tubes on the results.

4. Detection of abnormal prompts

Prompts for abnormal detection, such as prompts for blank comparison, prompts for results exceeding the upper limit of the range, etc.

Packing list：Determination host X1, digestion instrument X1, digestion shield X1, determination reagent X1, standard solution X1, digestion Colorimetric tube X1 set, Colorimetric tube frame X1, Colorimetric tube cleaning cloth X1, host power adapter X1, USB data cable X1, simple operation flow chart X1, instruction manual X1, certificate of conformity/warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
