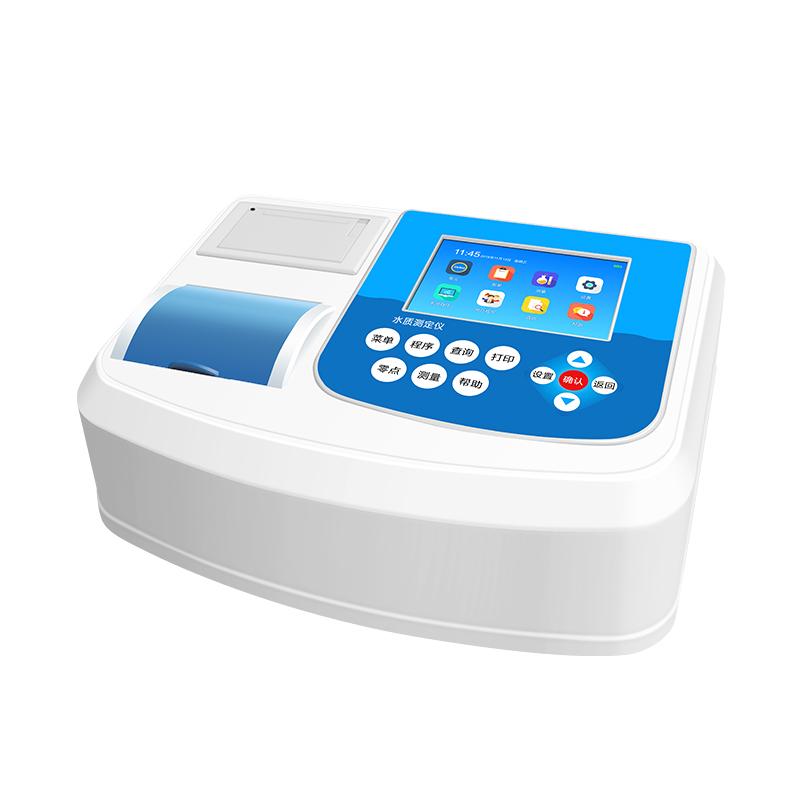

TONGAO TR 6900Cr Benchtop Total Chrome STIP-scan
SE
TR 6900Cr
TongAo TR 6900Cr Desktop STIP-scanSPEC
TongAo TR 6900Cr Desktop STIP-scanDetails
TongAo TR 6900Cr Desktop STIP-scanPacking list
- SKU
- NB040461
- Measurement parameter
- total chromium
- Measurement range
- 0~5mg/L
- detection method
- GB7466-87
- detection lower limit
- 0.01mg/L
- Digestion environment
- 125℃，30min
- measurement error
- ≤± 5％
- Repeatability
- ≤±5%
- Optical inspection Stability
- ≤ +/- 0.001A/20min (100,000 hours life)
- Data storage
- 30,000 records (including item, date, time, sample ID, etc.)
- Linear dispersion quantity
- 96 Linear dispersion (expandable)
- printer
- Built-in thermal printer
- Display
- 5-Inch high-definition color LCD screen
- batch Volume
- 16/25 water samples/batch
- Colorimetric method
- Digestion Colorimetric tube
- sample compatibility
- 16 mm (round), 25mm (round)
- Communication interface
- USB cable, LAN, etc
- exception notification
- Blank comparison prompt, over-range prompt, etc
- Operating interface
- Membrane push-button operation, Chinese/English (optional)
- Power supply method
- AC(220V±10%)，50Hz
- Power
- 5W
- Protection Rating
- IP30
- Environmental humidity
- ≤ 85% non-condensing
- Ambient Temperature
- 5~40℃
- Dimension
- 348*250*145mm
- instrument Weight
- Main unit less than 2.6kg
Introduction
The instrument can quickly determine the total chromium value in water, and integrates mature technologies in the field of water quality analysis, which makes the entire analysis system more complete, the operation is simpler and faster, and the detection results are more stable and reliable. Widely used in emergency monitoring, industrial wastewater, domestic (CN) sewage, sewage treatment, pharmaceutical and chemical industry, food, beverage, textile printing and dyeing, electroplating, papermaking, petroleum metallurgy, river management, scientific research units, colleges and universities and other fields.
Principle
1. Digestion colorimetric integrated tube
The digestion and colorimetric integrated tube is used for operation, and the digestion of the sample and the reading of the result share a reaction tube, and there is no need to transfer the liquid to the cuvette for detection.
2. Display the result directly
A cold light source with a specific wavelength is used to measure the absorbance of the sample, and the instrument system converts the detection result directly into the sample concentration value through a specific algorithm.
3. Measure multiple times and remove outliers
Measure the water sample 10 times or more, and take the average value after removing outliers, so as to reduce the influence of dirt, scratches, fingerprints or defective glass tubes on the results.
4. Detection of abnormal prompts
Prompts for abnormal detection, such as prompts for blank comparison, prompts for results exceeding the upper limit of the range, etc.
- 1JJF 1565-2016《Calibration Specification for Water Quality On-line Analyzers of Heavy Metals》
- 2HJ 798-2016《Specifications test methods for automatic/on-line monitor of total chromium in water》
- 3GB/T 7466-1987《Water quality--Determination of total chromium》
- 4GB/T 5750.3-2023《Standard examination methods for drinking water—Part 3: Water analysis quality control》
- 5GB/T 41837-2022《Hot spring service—Hot spring water quality requirement》
- 6GB/T 33328-2016《Paints and varnishes—Determination of electrical conductivity and resistance》
