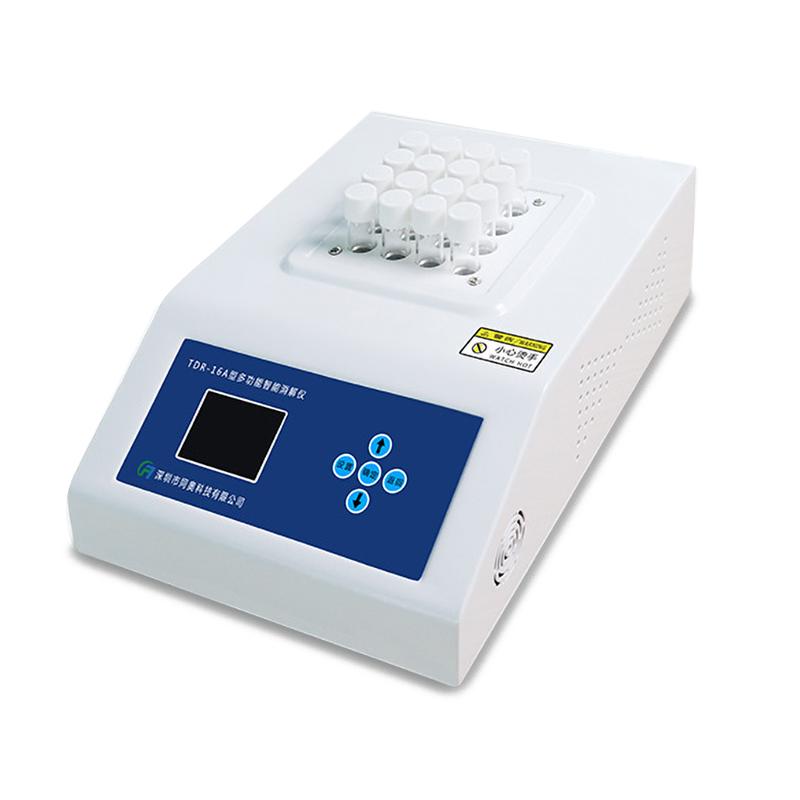

TONGAO TDR-16A Digestion Instrument 16-hole COD total phosphorus and total nitrogen digestion equipment
SE
TDR-16A
TongAo TDR-16A Digestion instrumentSPEC
TongAo TDR-16A Digestion instrumentDetails
TongAo TDR-16A Digestion instrumentPacking list
- SKU
- NB040470
- Number of holes in digester
- 16 holes
- operation interface
- All Chinese display
- Rated Voltage
- AC 220V±10%/50Hz
- Power Supply
- 220V AC
- Maximum power
- 650W
- Dimensions
- 230*340*130（mm）
- instrument Weight
- 6kg
- Digestion aperture/depth
- 16mm/65mm
- screen display
- TFT liquid crystal display
- Standard digestion mode
- COD, total phosphorus, total nitrogen, total chromium (optional) digestion mode
- Alarm mode
- buzzer
- custom time
- 5-999Min adjustable
- custom temperature
- 90~200 ℃ adjustable, target temperature thermostatic control
- Temperature control Accuracy
- ±1℃
- Heating rate
- Room temperature -165 ° C, 12 minutes
- Environment temperature
- （-10-40）℃
- Environment temperature
- Relative Humidity < 85% (non-condensing)
Features
There are standard working procedures for COD, total phosphorus and total nitrogen, and users can also set the digestion temperature and time by themselves;
Using the new temperature control calculation method, the heating is uniform and the time is fast, and it only takes 12min to raise the temperature to the target time;
Color page LCD screen full Chinese display, in line with the use habits of domestic (CN) users;
One-button operation, users only need to press the OK button to complete the entire digestion process;
It is equipped with an automatic alarm function, which will automatically alarm when the target temperature is reached or after the digestion is completed.
It is equipped with a transparent protective cover, which can observe the water sample during the digestion process and ensure the safety of digestion.
Digestion instrument series parameters
| Instrument model | TR-6B (standard) | TDR-16A (optional) | TDR-25 (optional) |
| Number of digester wells | 6 wells | 16 wells | 25 wells |
| Operator interface | Chinese/English (optional) | Full Chinese display | |
| Rated Voltage | DC 12V/10A | AC 220V±10%/50Hz | |
| Power supply mode | Adapters, power banks, cars | 220V AC | |
| Maximum power | 120W | 650W | |
| Dimensions | 185*120*155（mm） | 230*340*130（mm） | |
| Instrument weight | 1.37kg | 6kg | |
| Digestion pore size/depth | 16mm/65mm | ||
| On-screen display | TFT LCD display | ||
| Digestion mode is standard | COD, total phosphorus, total nitrogen, total chromium (optional) digestion mode | ||
| Alarm mode | buzzer | ||
| Custom time | 5-999min adjustable | ||
| Custom temperature | 90~200°C adjustable, target temperature constant temperature control | ||
| Temperature control accuracy | ±1℃ | ||
| Heating rate | Room temperature -165 °C for 12 min | ||
| Ambient temperature | （-10-40）℃ | ||
| Ambient temperature | Relative Humidity<85% (non-condensing) | ||
