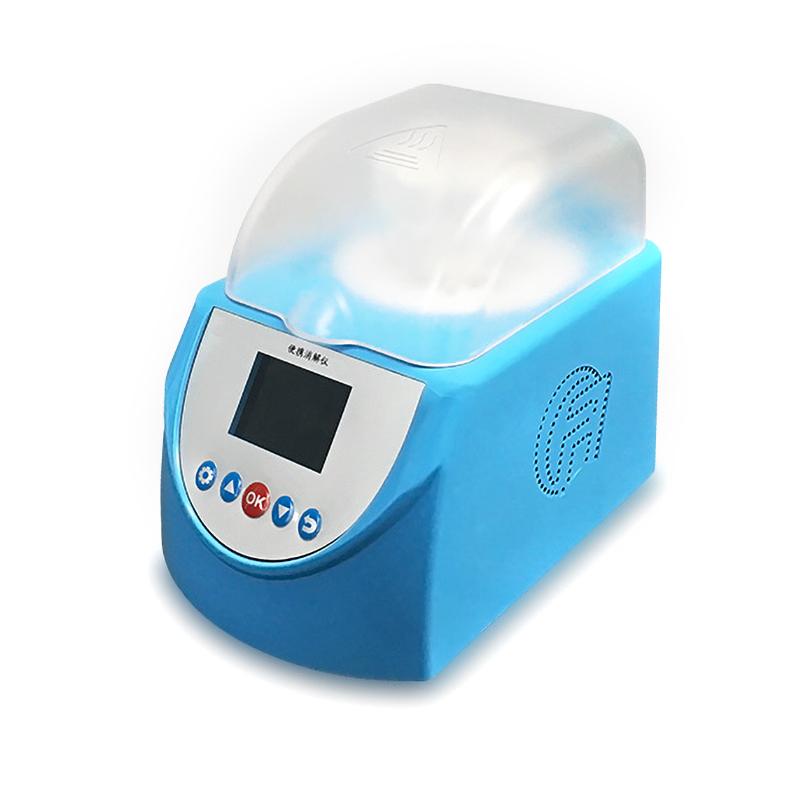

TONGAO TR-6B digestion instrument COD total phosphorus and total nitrogen digestion for 12 minutes, heating up 165 ℃
SE12 minutes rapid heating to 165 ℃, temperature control accuracy of +/- 1 ℃, support 5-999 minutes custom time, 90-200 ℃ temperature adjustable, equipped with transparent protective cover and security alarm function.
$739.00/set
PromotionLoading...
Coupon
Model：
TR-6B
TongAo TR-6B Digestion instrumentSPEC
TongAo TR-6B Digestion instrumentDetails
TongAo TR-6B Digestion instrumentPacking list
- SKU
- NB040472
- Number of holes in digester
- 6 holes
- operation interface
- Chinese/English (optional)
- Rated Voltage
- DC 12V/10A
- Power Supply
- Adapter, mobile Power Supply, car
- Maximum power
- 120W
- Dimensions
- 185*120*155（mm）
- instrument Weight
- 1.37kg
- Digestion aperture/depth
- 16mm/65mm
- screen display
- TFT liquid crystal display
- Standard digestion mode
- COD, total phosphorus, total nitrogen, total chromium (optional) digestion mode
- Alarm mode
- buzzer
- custom time
- 5-999Min adjustable
- custom temperature
- 90~200 ℃ adjustable, target temperature thermostatic control
- Temperature control Accuracy
- ±1℃
- Heating rate
- Room temperature -165 ° C, 12 minutes
- Environment temperature
- （-10-40）℃
- Environment temperature
- Relative Humidity < 85% (non-condensing)
TR-6B
Digestion instrument
12 minutes rapid heating to 165 ℃, temperature control accuracy of +/- 1 ℃, support 5-999 minutes custom time, 90-200 ℃ temperature adjustable, equipped with transparent protective cover and security alarm function.
Features
There are standard working procedures for COD, total phosphorus and total nitrogen, and users can also set the digestion temperature and time by themselves;
Using the new temperature control calculation method, the heating is uniform and the time is fast, and it only takes 12min to raise the temperature to the target time;
Color page LCD screen full Chinese display, in line with the use habits of domestic (CN) users;
One-button operation, users only need to press the OK button to complete the entire digestion process;
It is equipped with an automatic alarm function, which will automatically alarm when the target temperature is reached or after the digestion is completed.
It is equipped with a transparent protective cover, which can observe the water sample during the digestion process and ensure the safety of digestion.

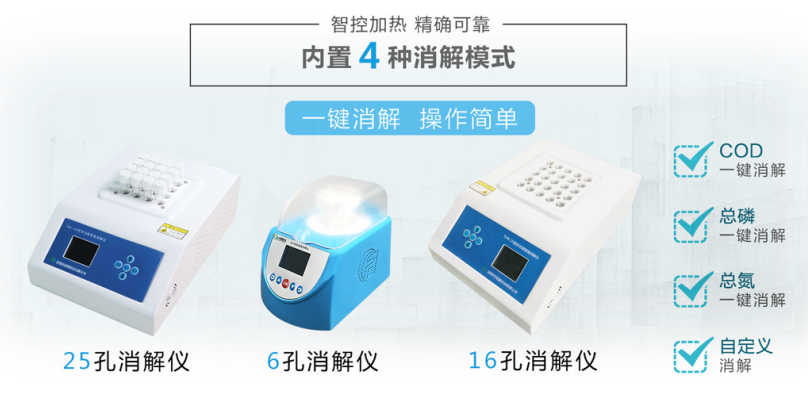

Digestion instrument series parameters
| Instrument model | TR-6B (standard) | TDR-16A (optional) | TDR-25 (optional) |
| Number of digester wells | 6 wells | 16 wells | 25 wells |
| Operator interface | Chinese/English (optional) | Full Chinese display | |
| Rated Voltage | DC 12V/10A | AC 220V±10%/50Hz | |
| Power supply mode | Adapters, power banks, cars | 220V AC | |
| Maximum power | 120W | 650W | |
| Dimensions | 185*120*155（mm） | 230*340*130（mm） | |
| Instrument weight | 1.37kg | 6kg | |
| Digestion pore size/depth | 16mm/65mm | ||
| On-screen display | TFT LCD display | ||
| Digestion mode is standard | COD, total phosphorus, total nitrogen, total chromium (optional) digestion mode | ||
| Alarm mode | buzzer | ||
| Custom time | 5-999min adjustable | ||
| Custom temperature | 90~200°C adjustable, target temperature constant temperature control | ||
| Temperature control accuracy | ±1℃ | ||
| Heating rate | Room temperature -165 °C for 12 min | ||
| Ambient temperature | （-10-40）℃ | ||
| Ambient temperature | Relative Humidity<85% (non-condensing) | ||
