Bossio SW40-70 temperature label 40~70 ℃

Bosco SW40-70 temperature label (temperature measuring patch) temperature range is 40~70 ℃. Irreversible temperature sensing label, temperature measuring label
Model：
Certificate
Contact
Details SPEC
Similar products

Bossio SW40-70 Thermometric Paper (Thermometric Patch)SPEC

Bossio SW40-70 Thermometric Paper (Thermometric Patch)Details

Bossio SW40-70 Thermometric Paper (Thermometric Patch)Packing list

SKU
NB004050
Reversibility
Irreversible
number of temperature grids
4 squares
Measurement temperature ℃
40℃|50℃|60℃|70℃
Specifications and Dimensions
58*20mm
Temperature grid shape
Small circle
Encasement Specifications
20 pieces/sheet
Display area
f10mm
SW40-70
Thermometric Paper (Thermometric Patch)

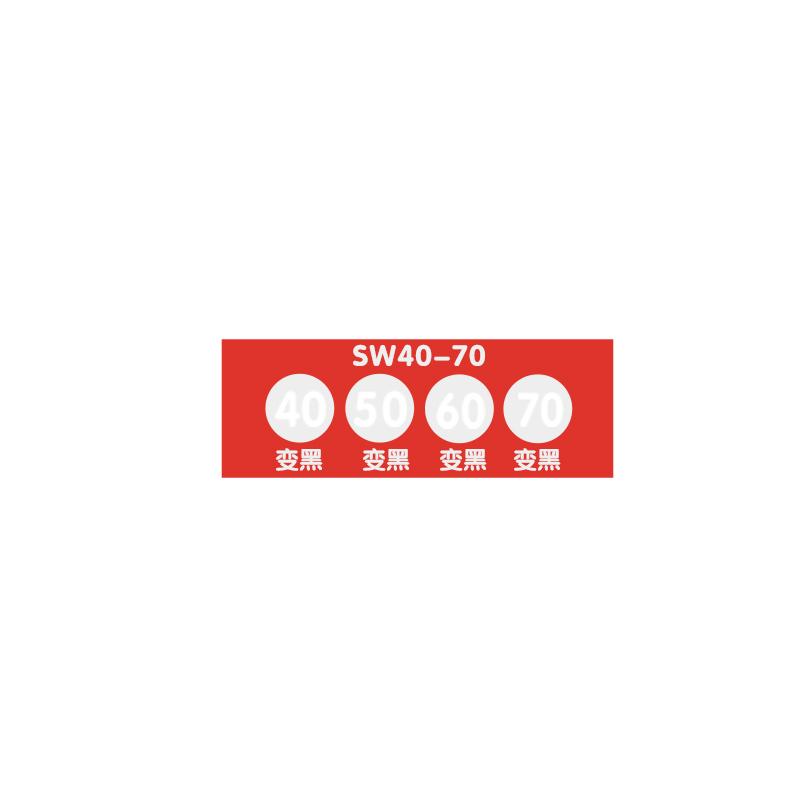

Bossio SW40-70 temperature label 40~70 ℃ Picture

Introduction

BosioSWThe 40-70 temperature tag (temperature measuring patch) is a combined power thermostat, with adhesive on the back, and the temperature grid before overheating is white, and the temperature grid of the corresponding temperature will turn black after overheating.SW40-70A temperature tag is an irreversible temperature tag with a measurement range of:40~70℃，The minimum measurement temperature is 40°C. It has the advantages of being dustproof and waterproof, and it remains for a long time after discoloration.

Concentrate:SW40-70A minimum of 5 temperature tags are sold.

Parameters

ModelMeasure the temperature rangeDimensionsDisplay areaThe number of small pieces contained in each large sheetThe number of temperature grids andshape
SW40-6540℃、45℃、50℃、55℃、60℃、65℃46x16mm4x5mm39 small tablets6 pcs.,Small rectangles
SW40-7040℃、50℃、60℃、70℃58x20mmφ10mm20 small pieces4 pcs., small circles
SW40-8040℃、50℃、60℃、70℃、80℃40x16mm4x5mm39 small tablets
5 pcs., small rectangle

Features

1. The back has its own adhesive, which is more convenient and firm than the traditional wax tablet.

2、SW40-65/SW40-70/SW40-80 temperature measuring paperAfter overheating, the discoloration is obviously contrasting, and the temperature indication is accurate.

3. It has the characteristics of dustproof, waterproof, convenient and fast.

4. The temperature measuring paper is irreversible and has a recording function.

Scope of use

SW40-65/SW40-70/SW40-80 temperature labelsIt is widely used in electrical joints, transformer busbars, motors, bearings, mechanical equipment, clothing hot pressing, printing and dyeing, plate making and other industries, as well as occasions where temperature cannot be measured by temperature measuring instruments and occasions where you only need to know how much temperature is exceeded.

Actual picture of the product

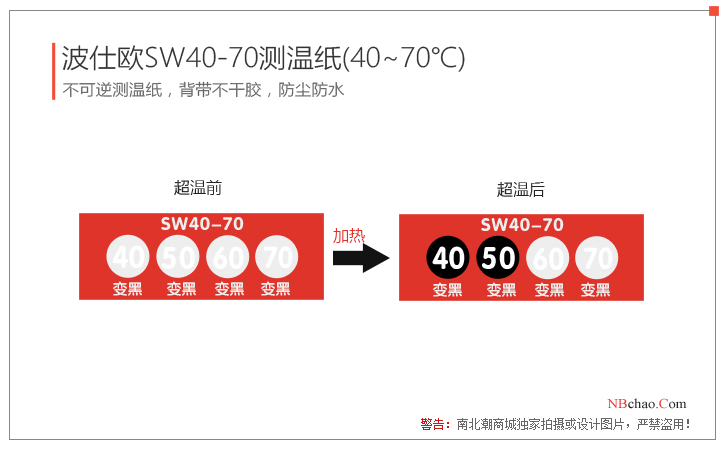

Boshio SW40-70 temperature label (temperature measurement patch) real picture


FAQ
QHow long does this Thermometric Paper need to be kept warm before it changes color?
A When the temperature of the mark is reached, the corresponding grid will change color, usually in a few seconds.
QWhy is the temperature label not measured, and it changes color after a while? SW40-70 model
A Hello, the temperature point of the SW40-70 temperature label is not high by 40 ° C. It may be stored in an environment with a temperature of 40 ° C or close to a heat source, resulting in discoloration. It is recommended that the temperature label be stored in a room temperature environment, not near a heat source.
