KORNO GT-903-NH3-Y Portable ammonia Gas Detector, measuring range 0-100PPM

SE
Pump suction type, range 0~100ppm, with USB power interface, can be charged anywhere, with dust design, with dust Filter.
$489.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI

KORNO GT-903-NH3-Y(0-100ppm) Ammonia Gas DetectorSPEC

KORNO GT-903-NH3-Y(0-100ppm) Ammonia Gas DetectorDetails

KORNO GT-903-NH3-Y(0-100ppm) Ammonia Gas DetectorPacking list

SKU
NB040539
Detection gas
Ammonia NH3
range
0~100ppm
resolution
0.1ppm
Response time
T90≤20s
linearity error
≤±1%
Detection Accuracy
≤±3%
Zero drift
≤±1%(F.S/年)
recovery time
≤20s
Sexual repeability
≤±1%
Expansion gas
Supports 1-4 Sensors
Explosion-proof sign
CNEx16.0538
Protection class
IP65
Production license
Guangdong 00001052 (CMC metrology authentication)
temperature and humidity
Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH
Sampling method
Pump suction
data storage
Real-time storage and Timer storage can be set; 120,000 groups of data can be stored
Operating Temperature
-30~60℃
Environment humidity
0~95% RH non-condensing
Operating Pressure
-30 ~ 100Kpa
Power
4000mA Rechargeable Polymer Battery
Dimensions
180*85*55mm
Net Weight
0.5Kg
Execution standards
GB3836.1-2010、GB3836.4-2010
Optional range
0~50、100、500、1000、5000ppm
GT-903-NH3-Y(0-100ppm)
Ammonia Gas Detector
Pump suction type, range 0~100ppm, with USB power interface, can be charged anywhere, with dust design, with dust Filter.

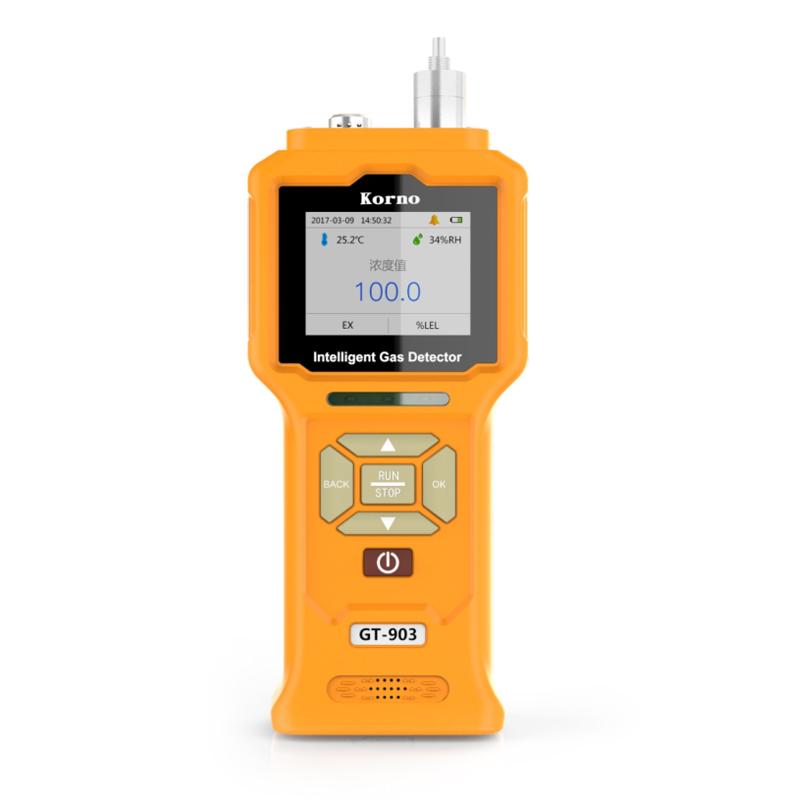

KORNO GT-903-NH3-Y Portable ammonia Gas Detector, measuring range 0-100PPM Picture

Introduction

GT-903 pump-suction ammonia Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical gas sensors and microcontroller technology, with fast response speed, high measurement accuracy, stability and repeatability Good reliability, the performance of the whole machine is at the domestic (CN) professional level, the user can customize the settings of various parameters, the operation is simple, the instrument is dust-proof design, equipped with a dust filter, and can be used in various harsh occasions.

Features


KORNO GT-903-NH3-Y(0-100ppm) Ammonia Gas Detector Details Figure 1

KORNO GT-903-NH3-Y(0-100ppm) Ammonia Gas Detector Details Figure 2

KORNO GT-903-NH3-Y(0-100ppm) Ammonia Gas Detector Details Figure 3

FAQ
QDoes the GT-903 Gas detector have a real-time Linear dispersion map?
A Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.
QCan this gas detector export measurement data?
A Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.
