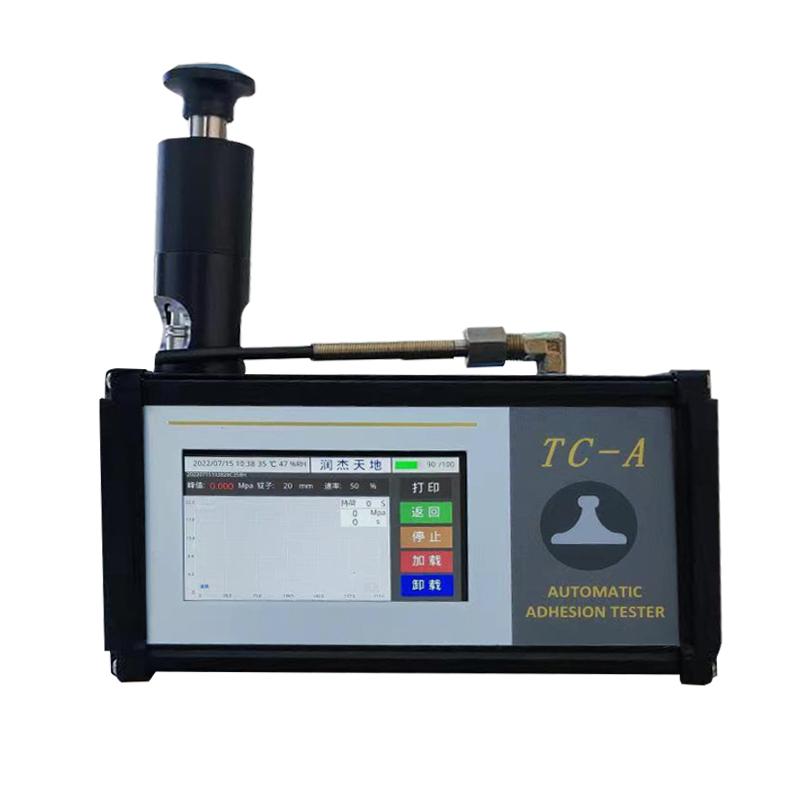

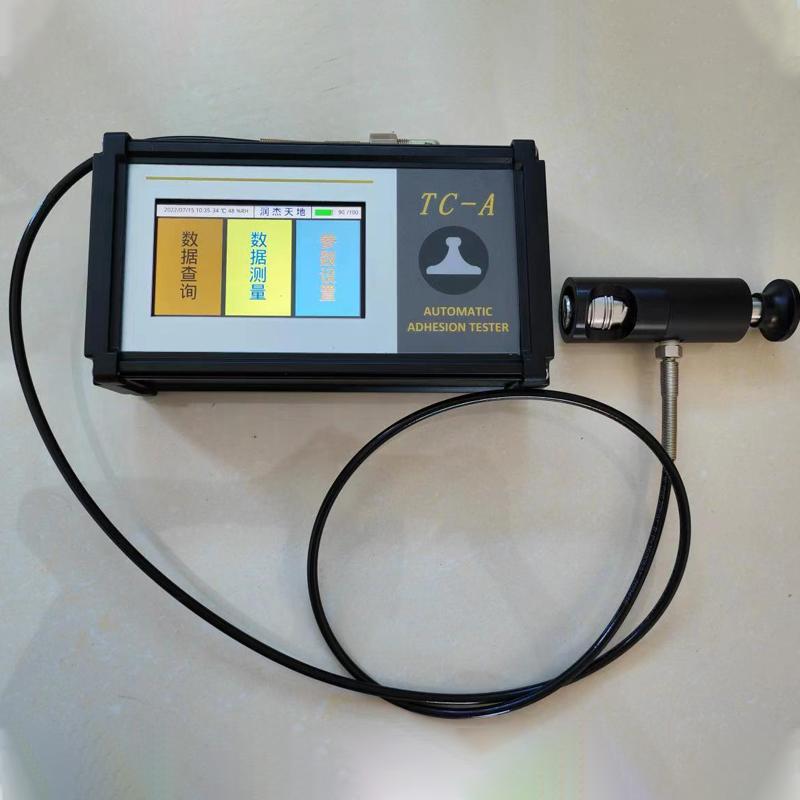

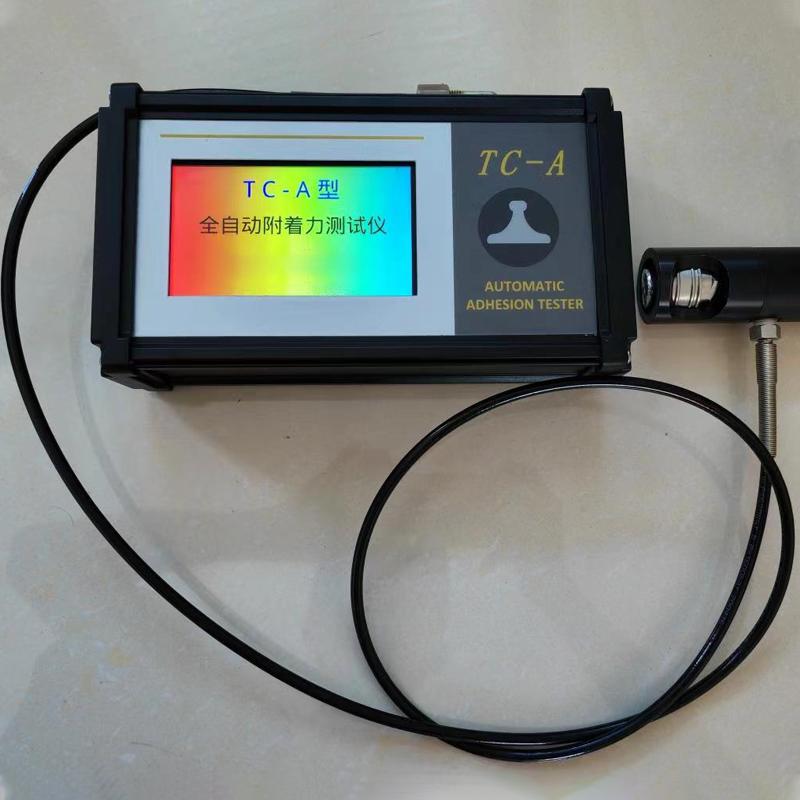

CHINA TC-A Automatic Pull-off Adhesion Tester Pull-off adhesion Tester 10mm/89.2MPa

TC-A10

Automatic Adhesion Tester

Kit size 10mm, range 0~89.2MPa, resolution 0.001MPa, error of indication ≤ +/- 1%, touch display

The TC-A automatic pull-off adhesion Tester measures the adhesion of coatings made of metal, concrete, and other materials. The working principle of the instrument is to use the hydraulic system to detach the coating of a certain diameter on the surface of the substrate to measure the adhesion of the coating, and the multi-function touch LCD screen of the Tester shows the adhesion detection process, which is displayed in MPa or kN or Psi. The product is designed and manufactured according to relevant international and Chinese standards, with reliable technology and stable performance.

Meets standards

① ISO 4624 《Paints and varnishes-Pull-offtest for adhesion》

② ASTM D 4541 《StandardTest Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers》

③ ASTM D7234 《Standard Test Method for Pull-OffAdhesion Strength of Coatings on Concrete Using Portable Pull-Off Adhesion Testers》

(4) GB/T 5210-2006

TB-T2965-2011

Features

1. 1280*720 high-definition IPS touch screen.

2. Automatic conversion result, spindle size can be 10mm/14mm/20mm/50mm (standard 20mm spindle).

3. Electric loading, adjustable rate.

4. There are three display units of kN/Mpa/Psi

5. The memory card stores the data, and the computer can be connected to view the data

6. Bluetooth printer can print test data (optional)

7. Pull-out force value-time curve display

8. Large-capacity memory card, which can store 100,000 pieces of data.

9. The load is set, and the detection surface is not damaged if the test is qualified

10. Automatic data storage, the fastest 0.2S storage of 1 data.

11. The brightness of the screen is adjustable

12. Automatic shutdown can be set

13. Switch between Chinese and English display

14. Engineering plastic packaging box, rainproof, dustproof and impact-proof.

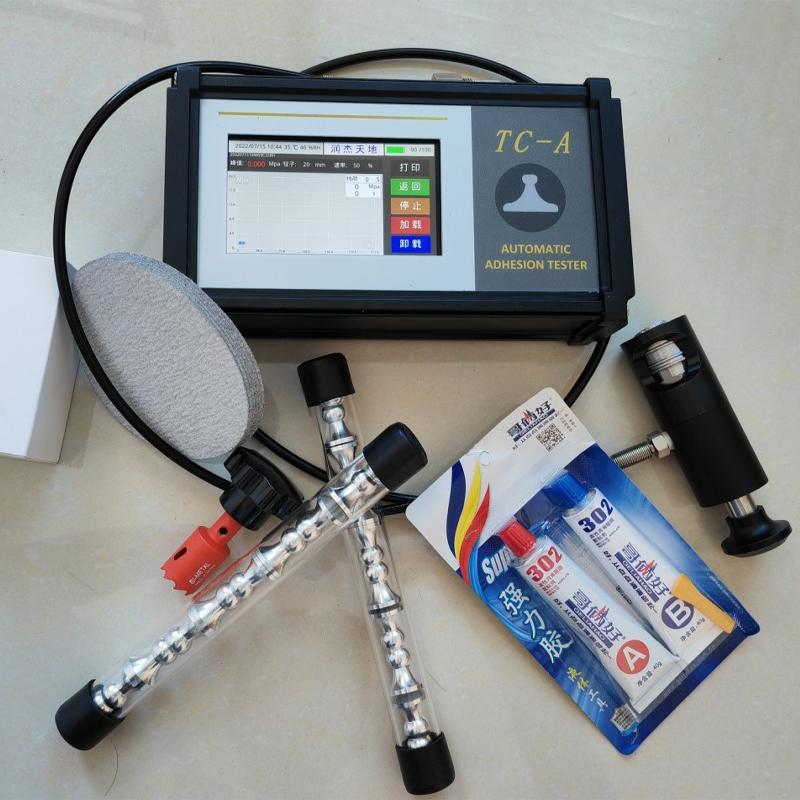

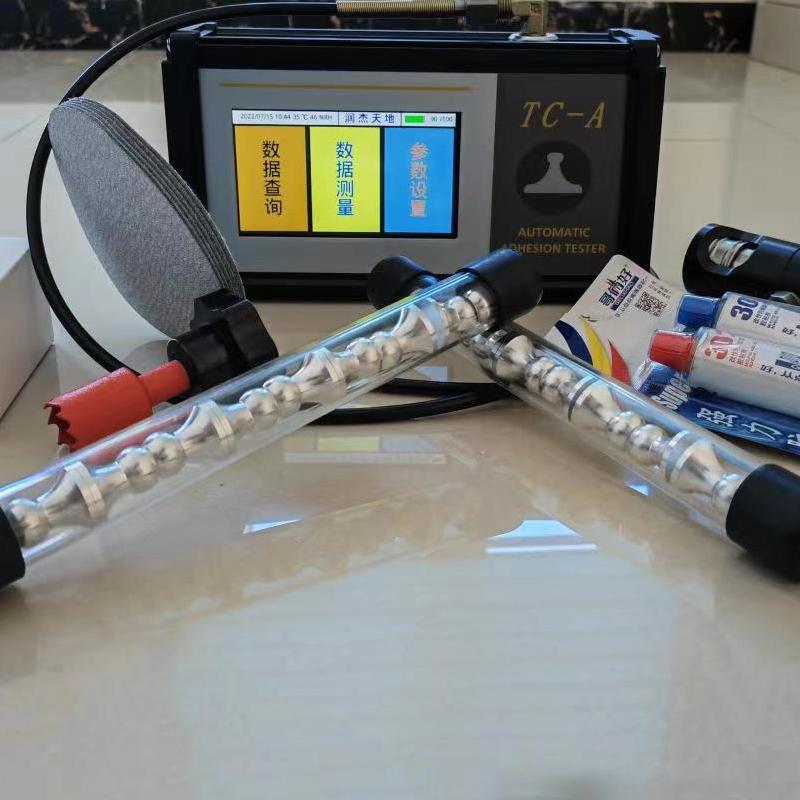

Packing list：1 automatic drawing instrument host, 1 charger, 6 drawing blocks, 1 pull head, 1 suitcase, 1 manual, certificate of conformity, and 1 packing list each

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
