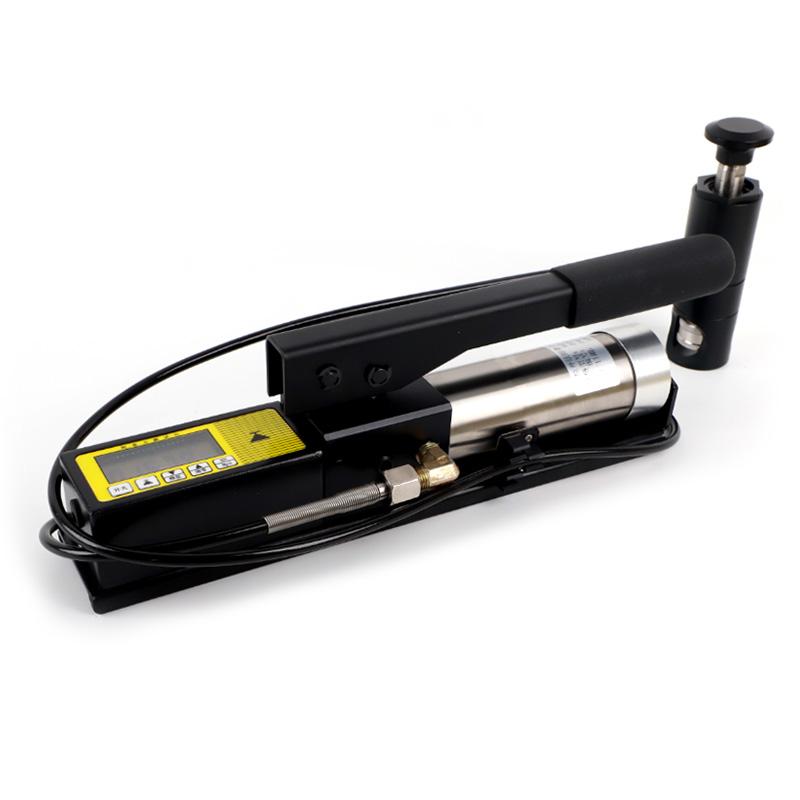

CHINA Pull-off adhesion Detector NBC-M kit 10mm

NBC-M 10mm

Pull method adhesion Detector

Range 0-10KN, measurement of metal, concrete and Miscellaneous material coating adhesion, piston stroke 10mm, optional 14mm, 20mm and 50mm kit.

Introduction

The NBC-M pull-apart adhesion Tester can measure the adhesion of metal, concrete and other material coatings - the self-positioning feature has brought a new change to the way of measuring adhesion. The Principle of this instrument is to use the hydraulic system to detach a coating of a certain diameter from the surface of the substrate being tested to measure the adhesion of the coating. The multi-function digital display of the Tester displays the adhesion in units of MPa or KN. This product is designed and manufactured in accordance with relevant international and national standards, with advanced technology and stable performance.

Standards compliant

① ISO 4624 "Paints and varnishes-Pull-offtest for adhesion"

② ASTM D 4541 "StandardTest Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers"

③ ASTM D7234 "Standard Test Method for Pull-OffAdhesion Strength of Coatings on Concrete Using Portable Pull-Off Adhesion Testers"

④ GB/T 5210-2006 "Adhesion test of paint and varnish by pull-apart method"

Features

1. Portable handheld instrument that can be used in any place without external power supply - it can be used in both the laboratory and the field.

2. Large and easy-to-read LCD digital display

3. Press the buttons to select the spindle size, measurement unit and storage data, and automatically calculate the results according to the spindle size.

4. The portable instrument case and alloy and stainless steel body are rain-proof, dust-proof and impact-proof.

5. High-quality hydraulic pumps can be used in any occasion and have a three-year warranty.

6. The pressure and display systems have been calibrated by a standard force gauge, and the accuracy is controlled within ±1% (full scale).

7. The self-positioning spindle has no effect on the measurement results on both smooth and rough surfaces.

8. High-grade industrial pressure sensors ensure continuous high accuracy.

9. Optional 10mm, 14mm, 20mm and 50mm spindles.

10. LCD display, you can press the button to select MPa or KN unit.

Packing list：Host X1, quick pull sleeve X1, charger X1, standard 10mm kit X20, cutter X1, grinding pad X6, adhesive X1, certificate X1, manual X1, portable instrument case X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
