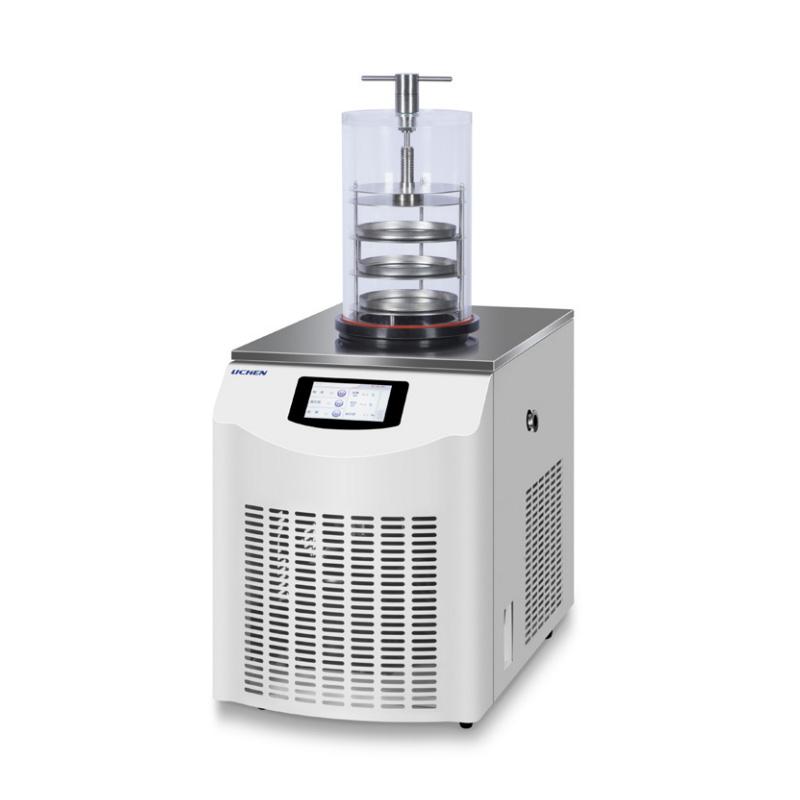

LICHEN LC-12N-80B vertical freeze dryer, lyophilized area 0.094 m2

LC-12N-80B

Vertical freeze dryer

Vertical, temperature control < -80 ℃, European imported compressor, with anti-return oil Vacuum Pump, built-in heat exchanger, cold trap with pre-freezing function, can display temperature, vacuum degree, Linear dispersion browsing.

Introduction

Vacuum freeze drying is a technology that uses the principle of sublimation to dry, which is to quickly freeze the dried substance at a low temperature and then use a vacuumIn the environment, the frozen water molecules are directly sublimated into water vapor and escaped. The substance is always at a low temperature (frozen) until drying, and the ice crystals are evenly distributed in the substance.The sublimation process will not concentrate due to dehydration, avoid side effects such as foam and oxidation caused by water vapor, and the dry substance is dry sponge porous and volume-basedIt is unchanged and easily soluble in water to restore its original state, which prevents the physical and biological denaturation of dry matter to a greater extent.

Features

▪ 7-inch color LCD screen, PID control, display temperature, vacuum degree, curve browsing, clear and intuitive

▪ The drying room adopts a colorless transparent plexiglass cover, which can observe the whole process of lyophilization

▪ It is equipped with an anti-oil backflow Vacuum Pump, and the connection with the host adopts international standard KF quick connectors, which is simple and reliable

▪ The compressor imported from Europe, with mixed environmentally friendly refrigerant, refrigerates quickly and has a low freezing temperature

▪ The cold trap has a pre-freezing function and can be used as an alternative to a cryogenic freezer

▪ Internal heat exchanger, effectively reduce the temperature of the cold trap, strong water capture capacity

▪ Nitrogen gas inflation valve, which can be filled with nitrogen or inert gas for drying and retention

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
