EVERFINE HACA-3650 Industrial-grade high-precision Color Analyzer, compatible with industrial-grade selection for reflection Color measurement
HACA-3650
EVERFINE HACA-3650 High-Precision Color Analyzer (Industrial Grade)SPEC
EVERFINE HACA-3650 High-Precision Color Analyzer (Industrial Grade)Details
EVERFINE HACA-3650 High-Precision Color Analyzer (Industrial Grade)Packing list
- SKU
- NB040626
- Measurement function
- Color, color difference, color intensity, Light spectrum reflectance Linear dispersion, Light spectrum Transmittance Linear dispersion, light transmitance
- Color parameter
- L*a*b、L*C*h、Yxy、Luv、Hunter Lab 、XYZ、RGB、△E*ab、△E*94、△E*00、CMC （2：1）、CMC（1：1）、MI、WI（ASTM313/CIE）、YI（ASTM 313/ASTM D1925）等参数；
- Measurement geometry
- Transmission: d/0 (diffuse illumination/0 ° reception), reflection: d/8 (diffuse illumination/8 ° reception); SCE and SCI modes optional
- Measurement caliber
- Transmission measurement diameter: 〇20mm reflection measurement diameter: LAV: 〇28mm; MAV: 〇11mm; SAV: 5 × 7mm;
- Wavelength range
- 380-780nm
- Reflectance Measurement Range
- 0~200%, resolution 0.01%
- Repeatability
- Chromatic value standard deviation Delta E * ab is less than 0.015 (after whiteboard correction, white correction board measurement 30 times at 10 second intervals)
- Inter-instrument Agreement
- ΔE*ab<0.15
- Interface
- USB和 RS232
- Remarks
- Colorimetric dishes for liquid, particle and powder measurement
HACA-3650 high-precision color analyzer adopts excellent optical system, which can realize high-precision measurement of color, chromatic aberration, whiteness, yellowness, spectral reflectance, reflectivity, spectral transmittance, transmittance and other parameters, and refers to the measurement requirements of international standards such as CIE, ISO, ASTM, DIN, JIS and national standards such as GB/T, which is the preferred solution for high-precision color measurement.
Features
High color measurement accuracy: Nearly 30 years of experience in spectrometer R&D and production, dozens of technologies, so that the system has excellent spectrophotometric color measurement performance.
Excellent dark color gamut measurement performance, in dark materials, it still has high accuracy and repeatability;
Dual beam feedback system, real-time monitoring and compensation of light source fluctuations;
Auto-zoom function, which can achieve automatic zoom according to different measurement apertures;
Compatible with reflection and transmission measurements, SCI and SCE test modes are available;
UV correction function, which can effectively control the UV composition of the light source, is suitable for the measurement of fluorescent colors;
Measured repeatability ΔE*ab less than 0.015;

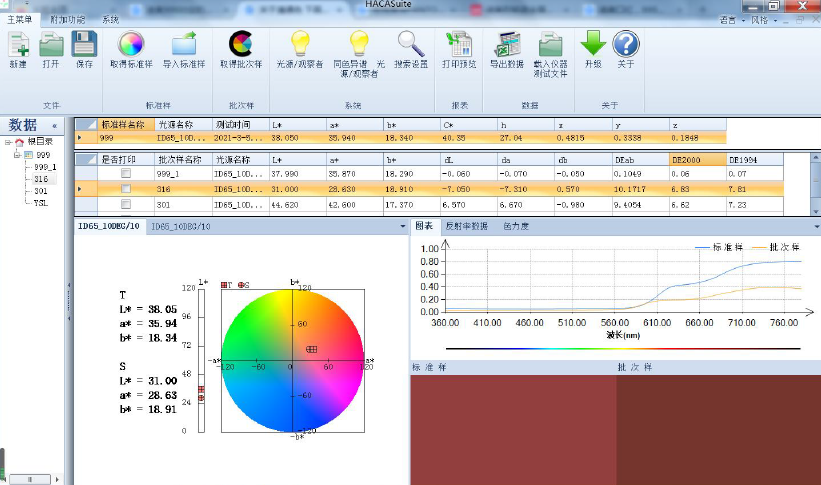

Versatile management and analysis software: including color, reflectance, transmittance, and opacity measurements, as well as statistical analysis functions.
Typical Applications
Consumer electronics, plastics, coatings, textile printing and dyeing, packaging materials
