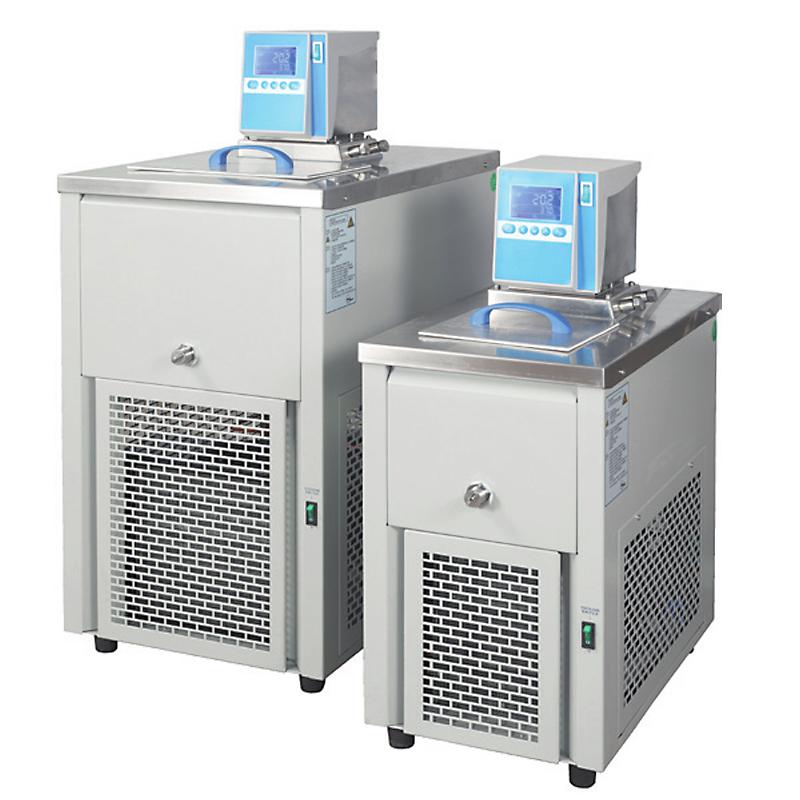

YIHENG MPG-10C thermostatic Water Bath temperature range -10~100 ℃

MPG-10C

Heating circulation tank

Temperature range -10~100 ℃, Temperature fluctuation +/- 0.2 ℃, working tank volume 13L, slot opening size 240 * 170mm, working bath depth 200mm, temperature control mode microcomputer PID control, circulation mode internal/external circulation, Total power 2250W

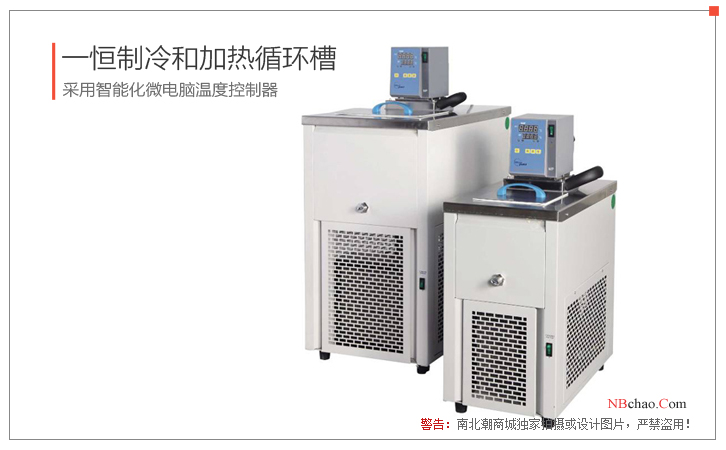

Introduction of MPG-10C constant temperature Water Bath

Yiheng MPG-10C constant temperature Water Bath is a constant temperature Water Bath with intelligent microcomputer temperature controller, which has dual functions of heating and cooling. MPG-10C constant temperature Water Bath has a temperature range of -10~100°C, a liquid filling volume of 13L, and has an audible and visual alarm function for over-temperature and low-temperature.

Features

1. Intelligent microcomputer temperature controller, high temperature control accuracy, environmentally friendly refrigerant, key components such as compressor, circulation pump and heater are all imported products.

2. Over-temperature, low-temperature sound-light tracking alarm and liquid level protection function, so that the sample is reliably protected and no accidents occur.

3. Equipped with a powerful pressure suction pump to provide a constant temperature source for the peripheral tank.

4.MPG-10C constant temperature Water BathEquipped with a connection port for connecting to an external bathtub.

5. Convenient data processing (optional): It can be connected to a printer, 485 communication interface or USB data transfer interface (U disk), and record temperature and time curves with a computer and printer, providing a strong guarantee for data storage and playback during the test .

6. Multi-segment programmable LCD controller: (optional)

1) 15 sections and 30 steps can be preset, and the setting time of each section is 1-99 hours and 59 minutes. The speed of the Circulating Chiller is adjustable.

2) The temperature, time and heating rate are controlled by the microcomputer program, and the constant temperature test is carried out at an extremely fast speed.

Optional

1. Multi-segment programmable LCD controller

2. German Julabo controller ED, MB

Note: The delivery time of optional parts needs to be increased by 7 days

Pictures

Packing list：host x1, instruction manual x1, packing list x1, warranty x1, warranty card x1, fuse x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
