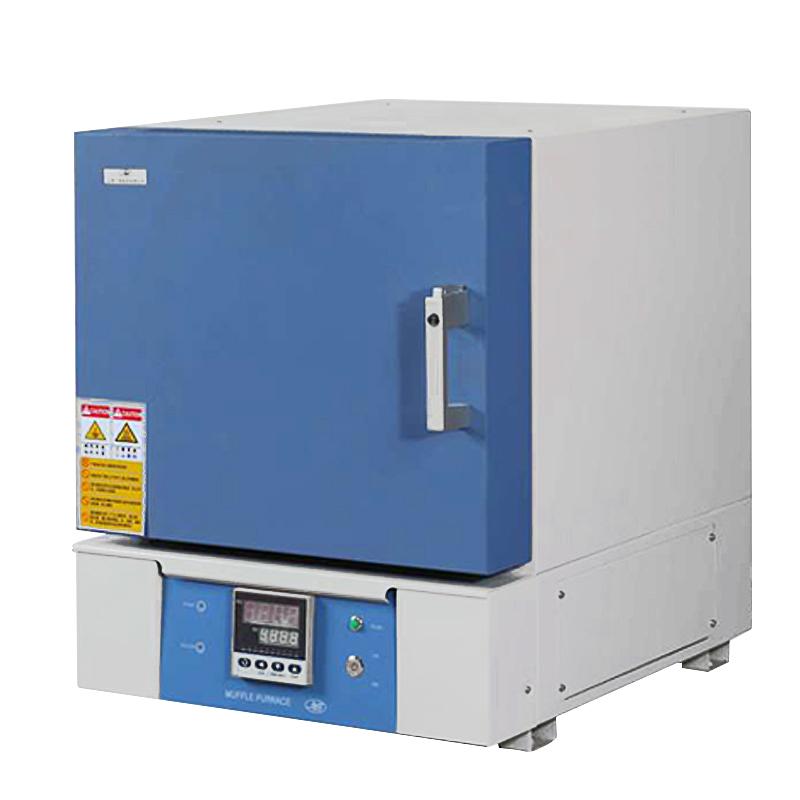

YIHENG SX2 - 2.5-10 TP muffle furnace design temperature 1000 ℃ Volume 2L

SX2-2.5-10TP

Box-Type Resistance Furnace (programmable)

Maximum temperature 1000 ℃, heating workpiece wirecoil for heater, furnace volume 2L, heating power 2.5KW, furnace size 120 * 200 * 80mm, Power Supply 220V 50Hz, dimensions 400 * 580 * 610mm

SX2-2.5-10TP muffle furnace overview

Yiheng SX2-2.5-10TP muffle furnace is a programmable box-type Resistance Furnace with a design temperature up to 1000°C and a volume of 2L. The hearth of SX2-2.5-10TP muffle furnace is ceramic fiber, the heating element is high-quality electric furnace wire, and it is controlled by microcomputer PID controller.

Features

1. SX2-2.5-10TP muffle furnace adopts multi-segment programmable controller, 30-segment programs, each segment can be set to heat up or stay, and provide programmed temperature, time, and heating power cycle functions to realize automatic control and operation. .

2. The liner and box panels in the furnace are made of stainless steel, which has the advantages of corrosion resistance, not easy to rust, and no deformation at high temperature.

3. The furnace door of SX2-2.5-10TP muffle furnace is uniquely designed, and the door opening operation is safe and simple, and it also ensures that the high-temperature hot gas in the furnace will not leak out.

4. The door is well sealed so that the heat loss is extremely small, and at the same time increases the uniformity of the temperature in the furnace.

How safe is it?

1. For SX2-2.5-10TP muffle furnace , when the operator opens the furnace door, the safety switch of the furnace door will automatically cut off the heating power to ensure the safety of the operation.

2. The muffle furnace is equipped with a variety of safety protection measures, such as overcurrent, overVoltage, overheating, etc., to ensure the safety of the Resistance Furnace.

3. Ceramic fiber board can be used as heat insulation material, which has good heat insulation effect and low surface temperature of enclosure.

Applications

SX2-2.5-10TP muffle furnace is suitable for industrial and mining enterprises, scientific research institutions, pharmaceutical chemistry, metal processing industry, ceramic industry and other industries.

Pictures

Packing list：host x1, instruction manual x1, packing list x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
