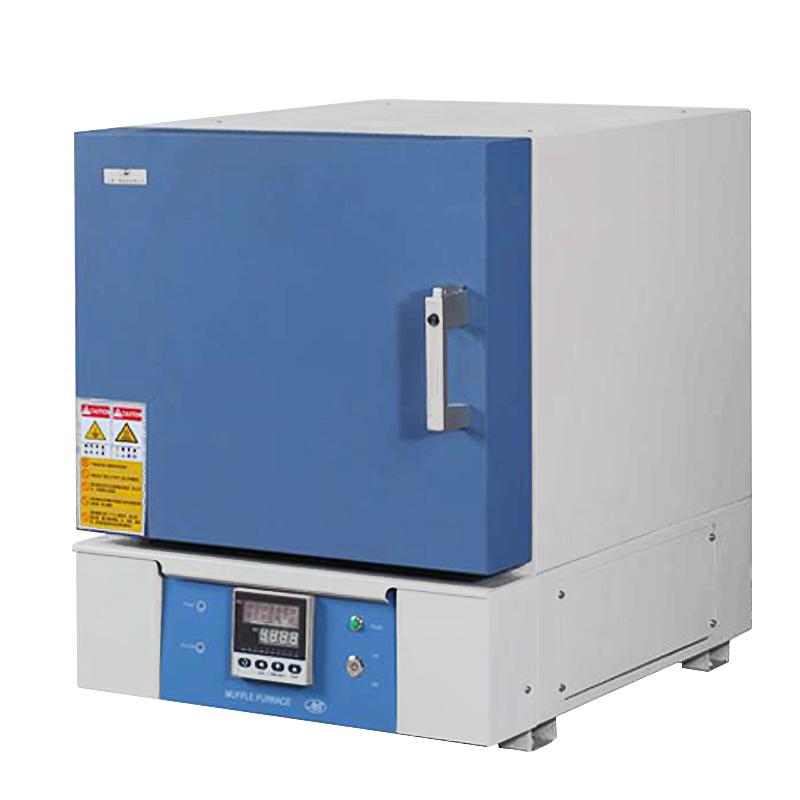

YIHENG SX 2 - 2.5-12 NP muffle furnace 1200 ℃ design temperature, input power 2.5KW

SX2-2.5-12NP

Box-Type Resistance Furnace (programmable)

Maximum temperature 1200 ℃, heating workpiece nickel-chrome wire, furnace volume 2L, heating power 2.5KW, furnace size 120 * 200 * 80mm, Power Supply 220V 50Hz, dimensions 400 * 580 * 610mm

SX2-2.5-12NP muffle furnace overview

Yiheng SX2-2.5-12NP muffle furnace has a unique two-way design, which can ensure that the high-temperature hot gas in the furnace does not leak out. The hearth of SX2-2.5-12NP muffle furnace is corrosion-resistant, and the material is refractory brick hearth. SX2-2.5-12NP muffle furnace has a maximum temperature of 1200°C, a volume of 7L, and an input power of 2.5KW. It is suitable for chemical element analysis and high-temperature heat treatment in laboratories.

Pictures

feature of product

1. Higher security. When the furnace door is opened, the safety switch will automatically cut off the heating power supply; overcurrent, overVoltage, overheating and other safety protection measures make the operation of the muffle furnace safer.

2. Yiheng SX2-2.5-12NP muffle furnace adopts 30-segment multi-segment programmable control, and each segment can be set to heat up or stay, realizing the cycle of programmed temperature, time and heating power.

3. The heat loss is very small. The tight door seal and unique furnace door design ensure that the high-temperature hot air in the furnace does not leak out and the furnace temperature uniformity is good.

4. The furnace door liner and box panel are made of stainless steel, which has the advantages of corrosion resistance and high temperature unchanged.

Packing list：host x1, instruction manual x1, packing list x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
