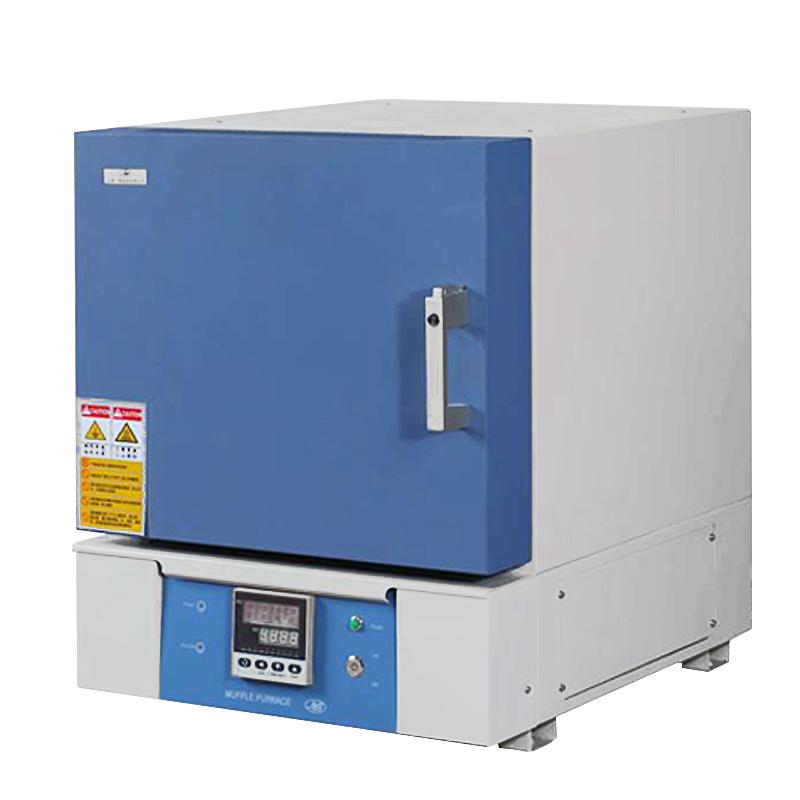

YIHENG SX2-5-12NP programmable muffle furnace input power 5KW temperature up to 1200 ℃

SX2-5-12NP

Box-Type Resistance Furnace (programmable)

Maximum temperature 1200 ℃, heating workpiece nickel-chrome wire, furnace volume 7L, heating power 5KW, furnace size 200 * 300 * 120mm, Power Supply 380V 50Hz, dimensions 520 * 650 * 660mm

Overview of SX2-5-12NP Programmable Muffle Furnace

Yiheng SX2-5-12NP programmable muffle furnace, also known as programmable box-type Resistance Furnace, has multi-stage programmable control and can realize automatic control operation. SX2-5-12NP programmable muffle furnace adopts refractory brick hearth, light weight and corrosion resistance. The input power of SX2-5-12NP programmable muffle furnace is 5KW, and the heating element is nickel-chrome wire.

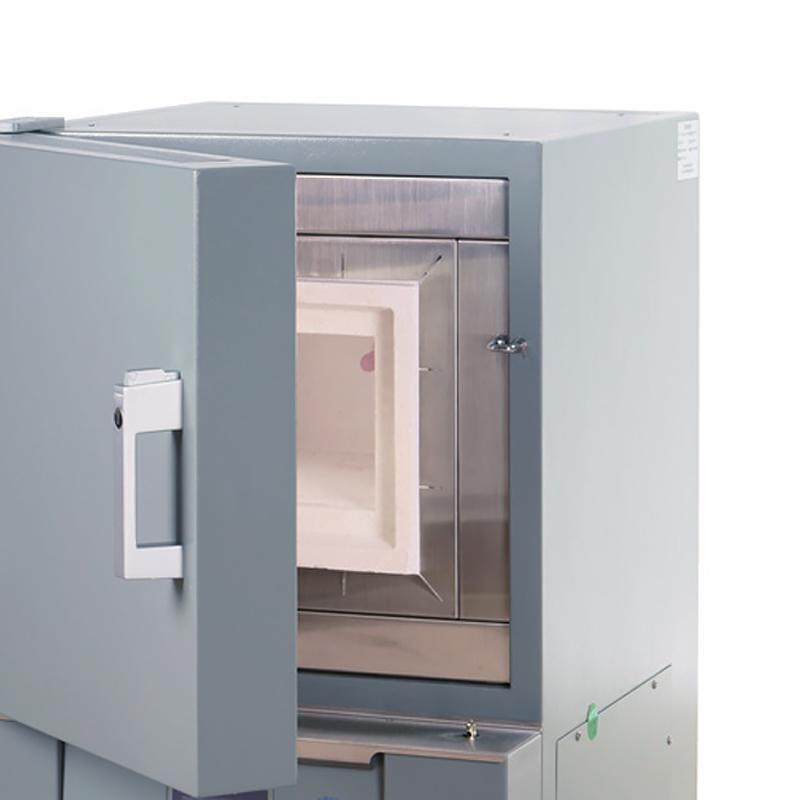

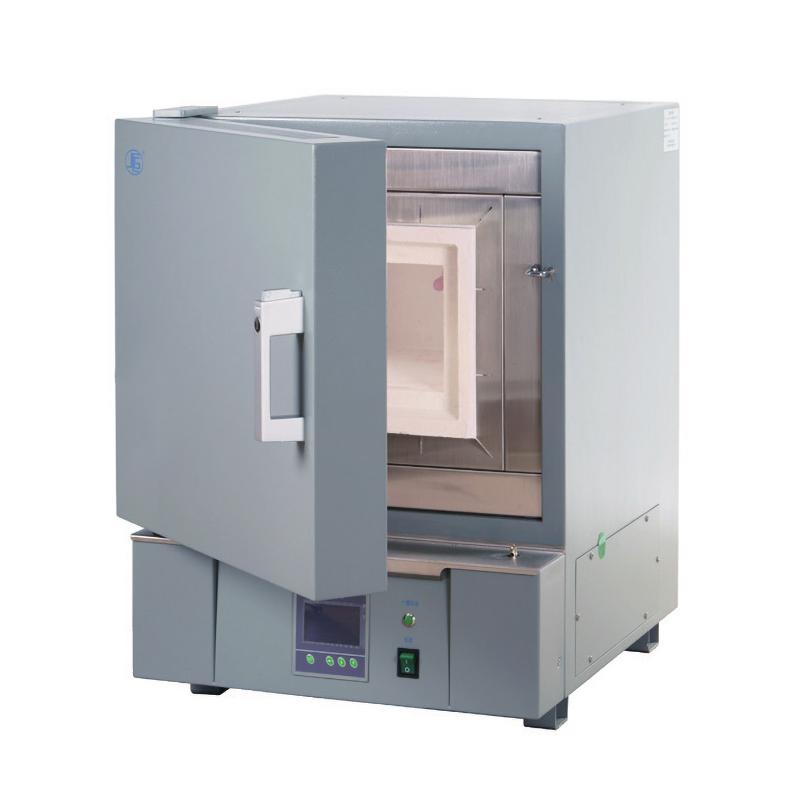

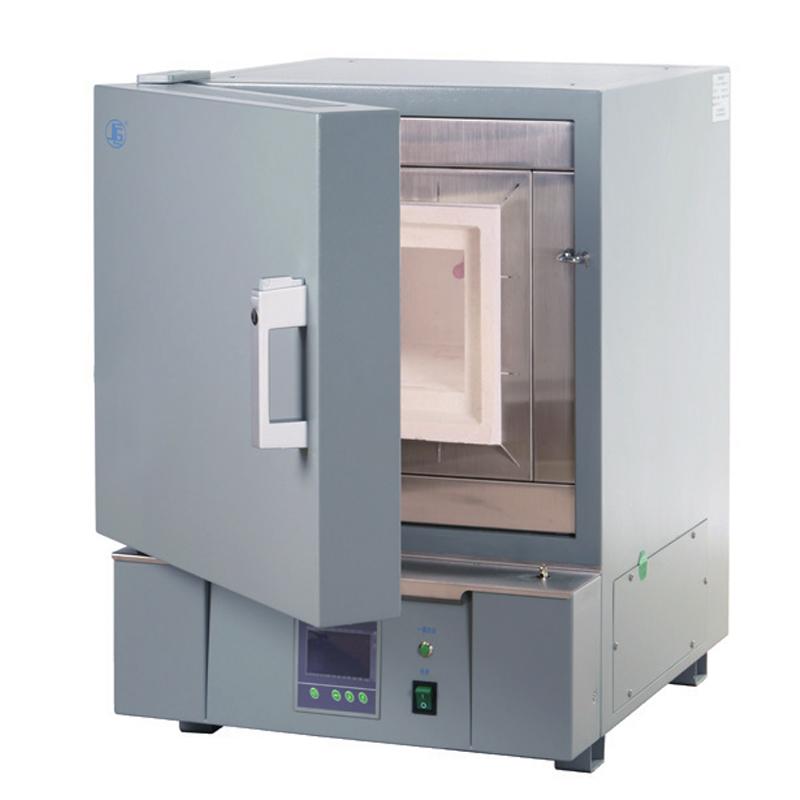

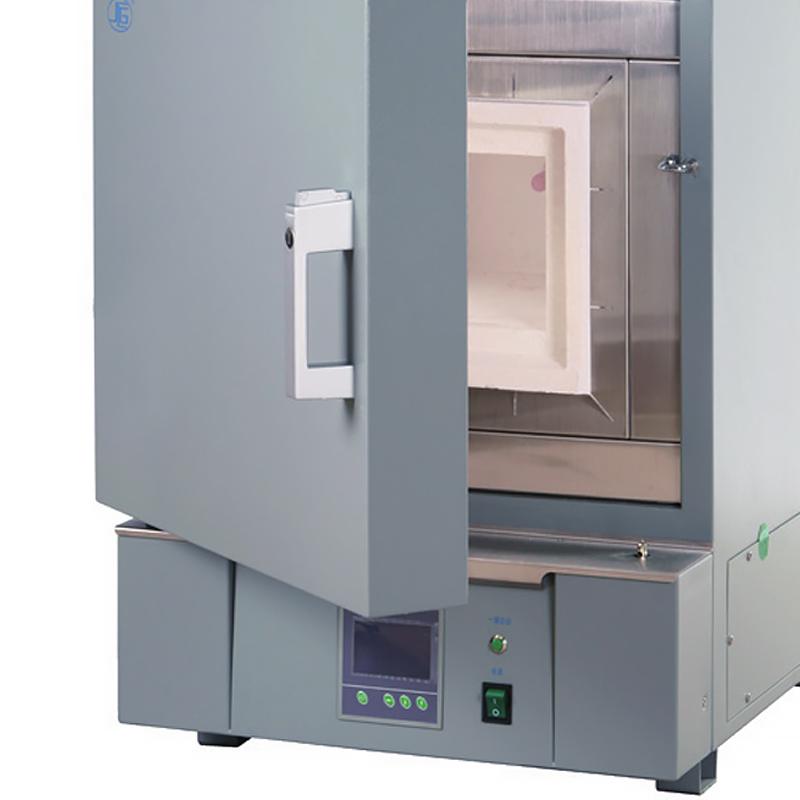

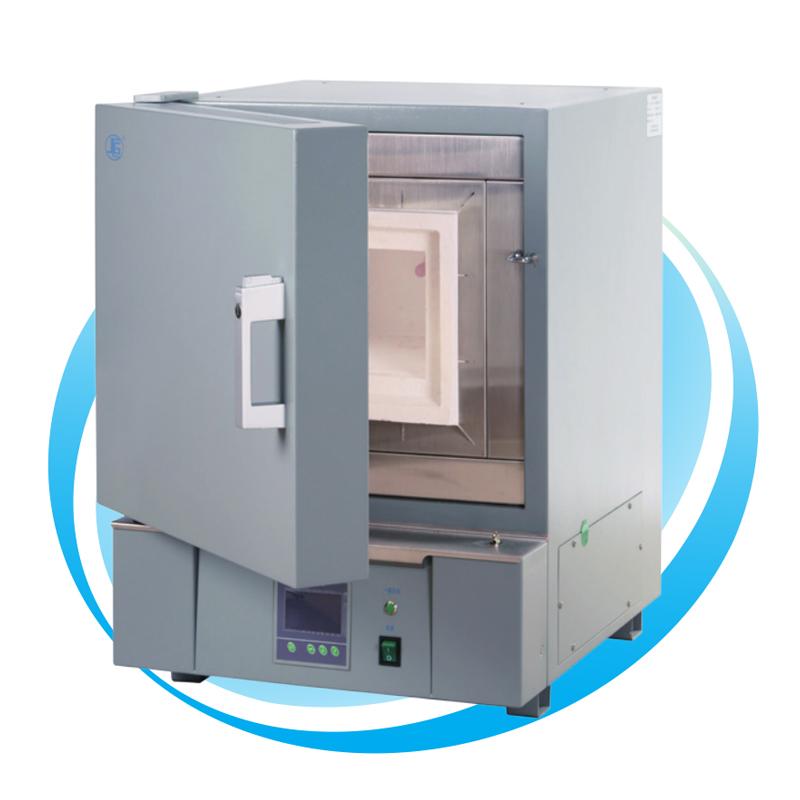

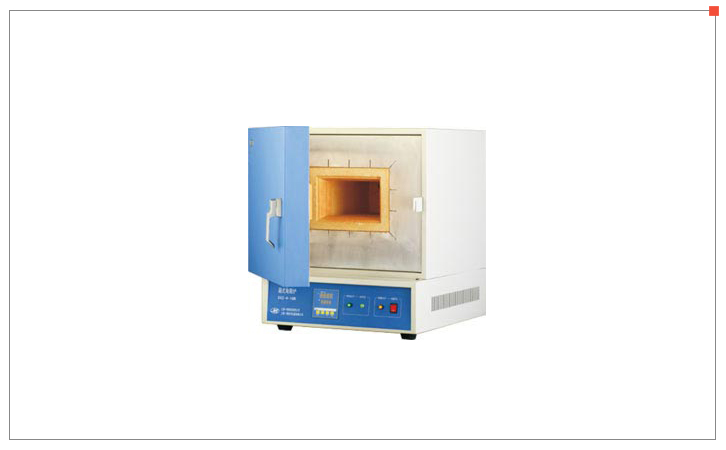

Pictures

feature of product

1. Higher security. When the furnace door is opened, the safety switch will automatically cut off the heating power supply; overcurrent, overVoltage, overheating and other safety protection measures make the operation of the muffle furnace safer.

2. Yiheng SX2-5-12NP programmable muffle furnace adopts 30-segment multi-segment programmable control, and each segment can be set to heat up or stay, realizing the cycle of programmed temperature, time and heating power.

3. The heat loss is very small. The tight door seal and unique furnace door design ensure that the high-temperature hot air in the furnace does not leak out and the furnace temperature uniformity is good.

4. The furnace door liner and box panel are made of stainless steel, which has the advantages of corrosion resistance and high temperature unchanged.

Packing list：host x1, instruction manual x1, packing list x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
