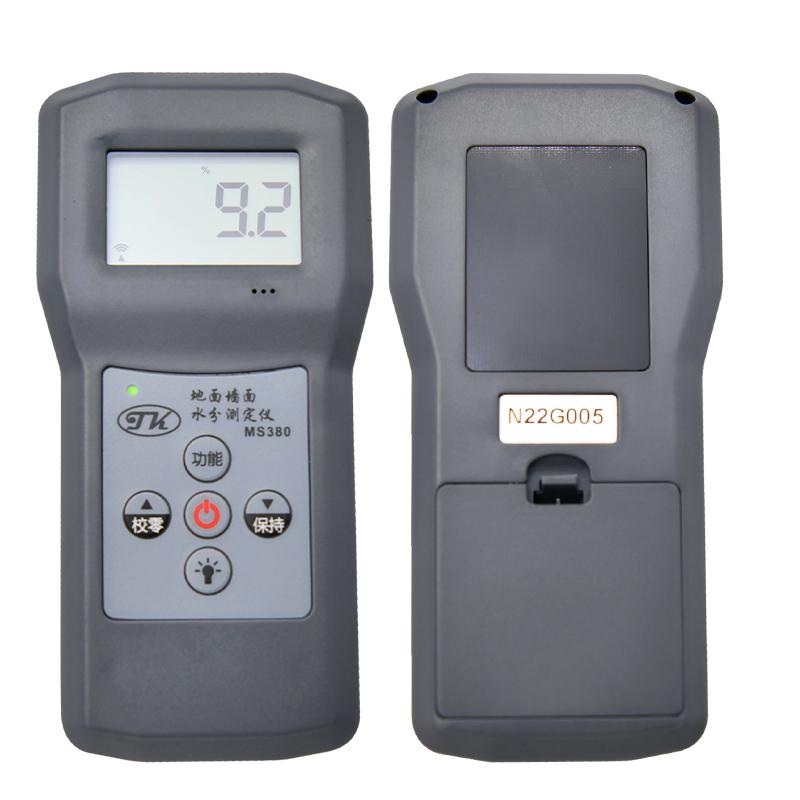

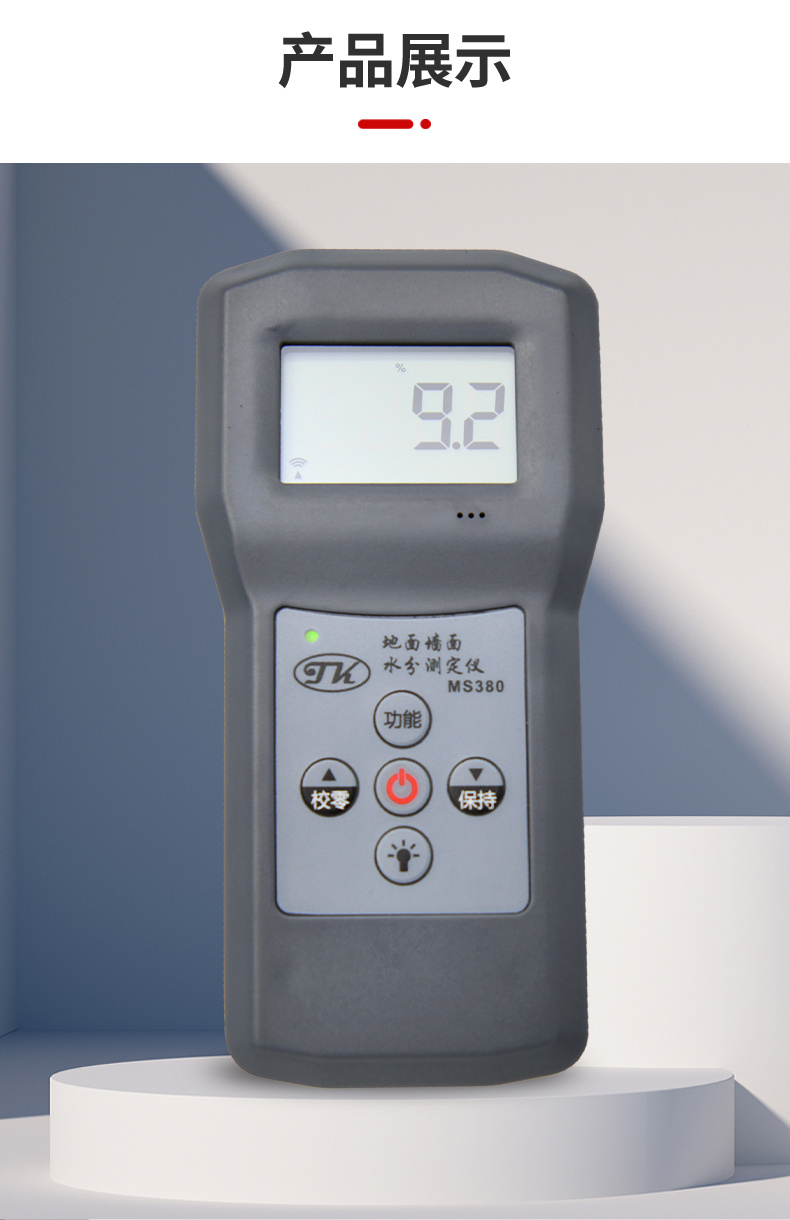

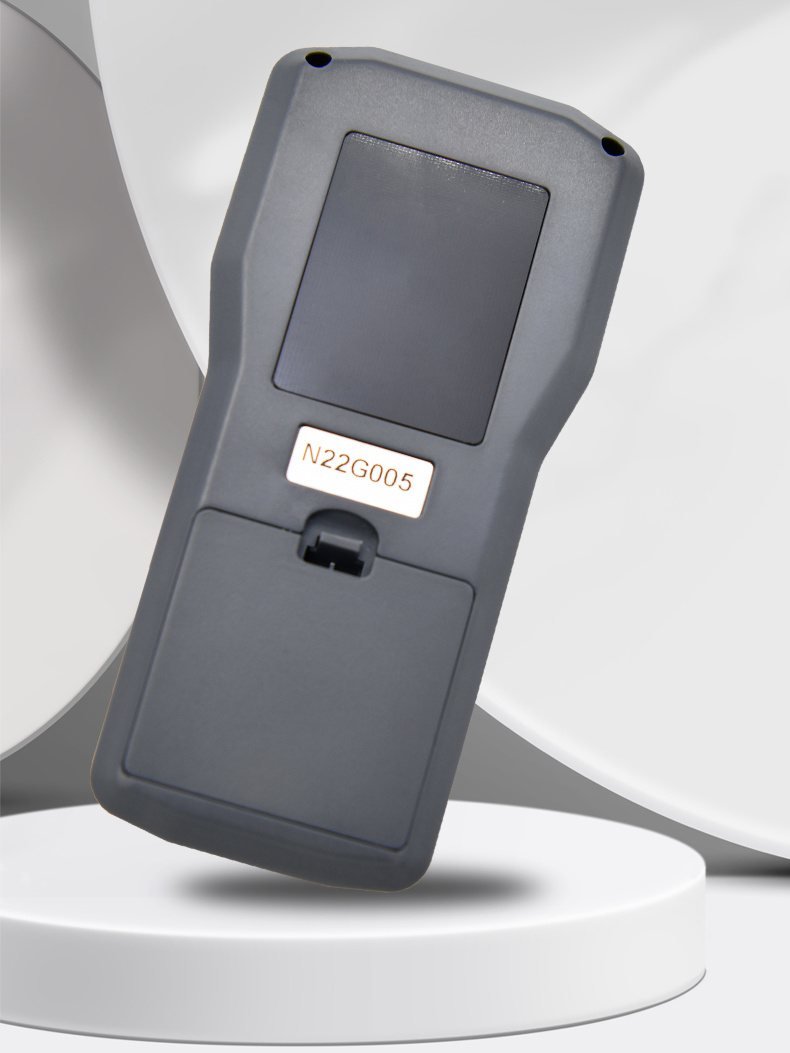

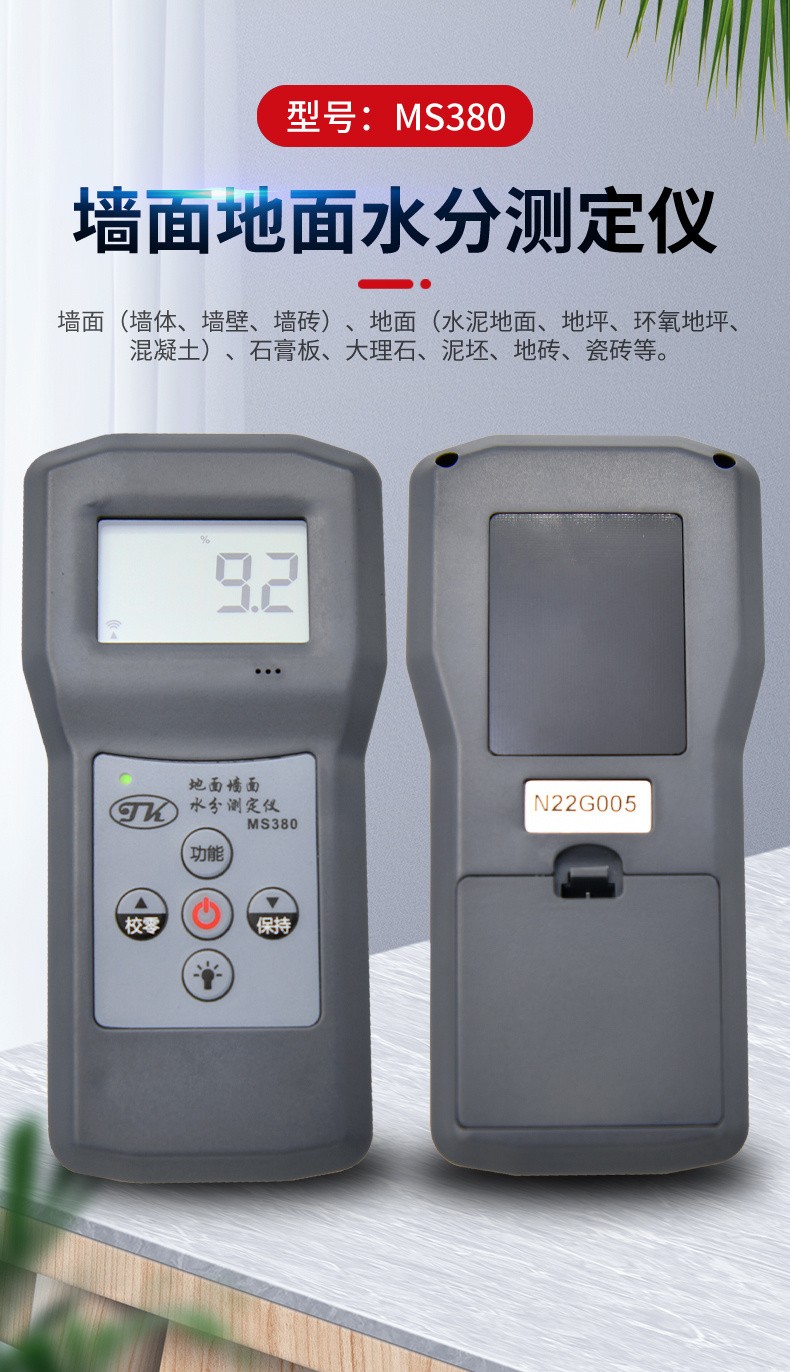

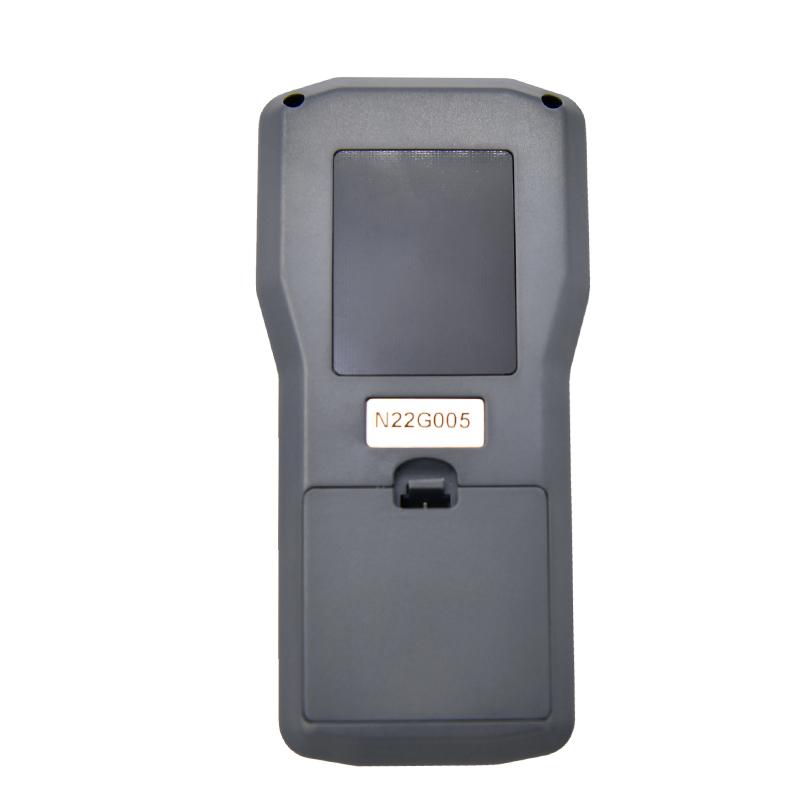

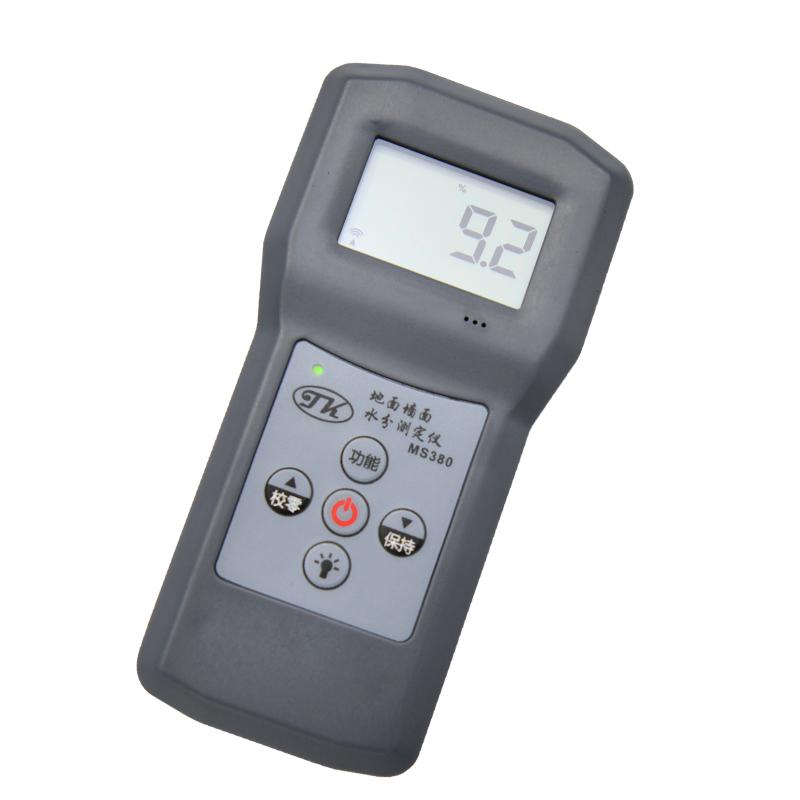

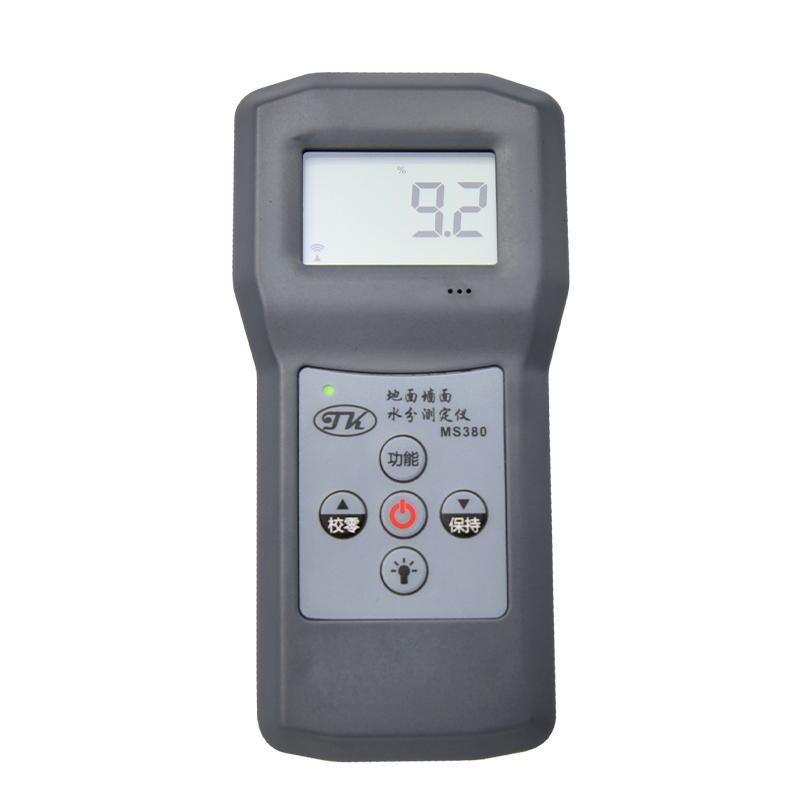

TSINGTAO TOKY MS380 Floor Wall Moisture meter Range 0~70%
SE
MS380
TSINGTAO TOKY MS380 Floor wall Moisture meterSPEC
TSINGTAO TOKY MS380 Floor wall Moisture meterDetails

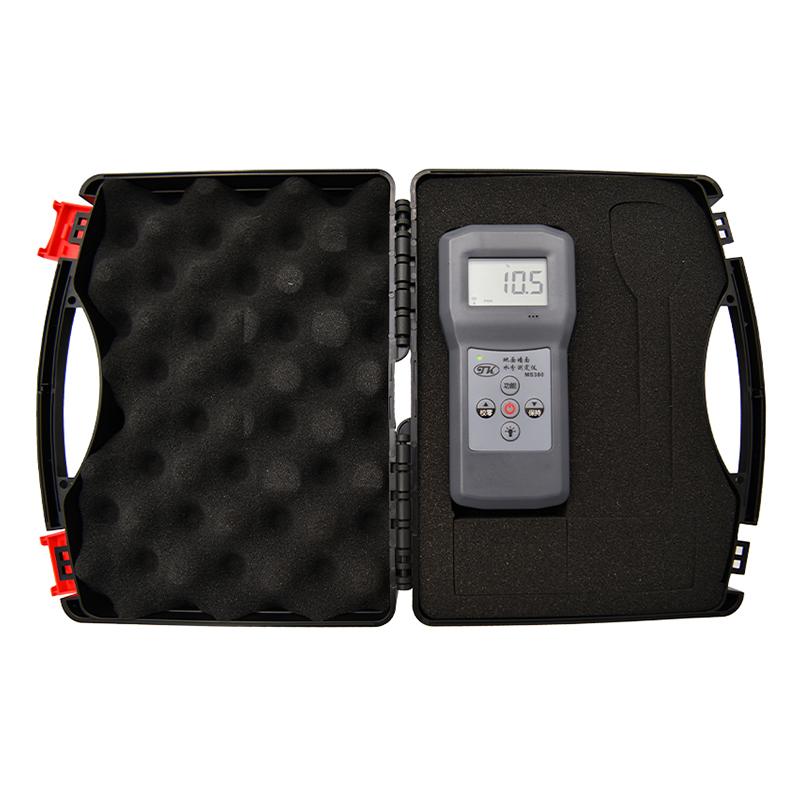

TSINGTAO TOKY MS380 Floor wall Moisture meterPacking list

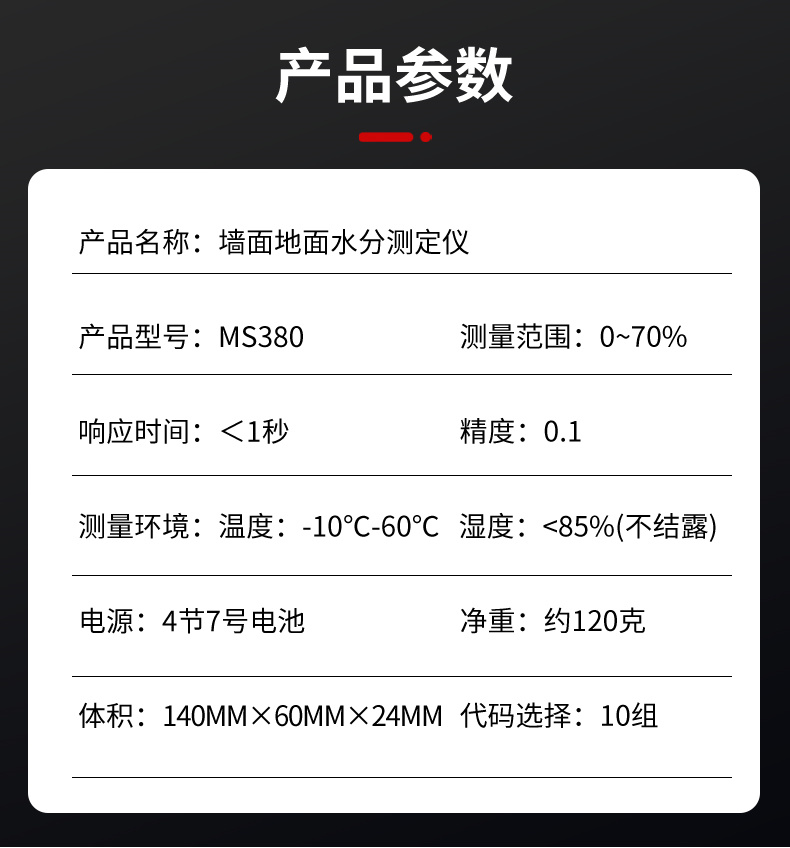

- SKU
- NB040820
- Measuring range
- 0~70%
- precision
- 0.1
- Dimensions
- 140mm×60mm×24mm
- Power
- 4 AA batteries
- Display
- 4-Bit backlit LCD liquid crystal display
- Measurement environment
- Temperature: -10 ℃~ 60 ℃; Humidity: 5%~ 90% (no condensation)
- Response time
- < 1 second
- Accuracy
- ±0.5％
- Net Weight
- About 120 grams
- Measurement principle
- High frequency principle, temperature compensation
- Code selection
- 10 kinds
Applications
MS380 Wall and Floor Moisture Meter: This instrument is mainly used in the process of floor laying, paint painting, floor painting, building decoration, and construction site. The instrument is usually called wall Moisture Meter, ground Moisture Meter, concrete Moisture Meter, gypsum board Moisture Meter and so on by customers of different users. The instrument can measure moisture in a wide range of products, mainly in the following categories: wall (wall, wall, wall tiles), ground (cement floor, floor, epoxy floor, concrete), gypsum board, marble, mud Blanks, floor tiles, ceramic tiles, etc.
Features

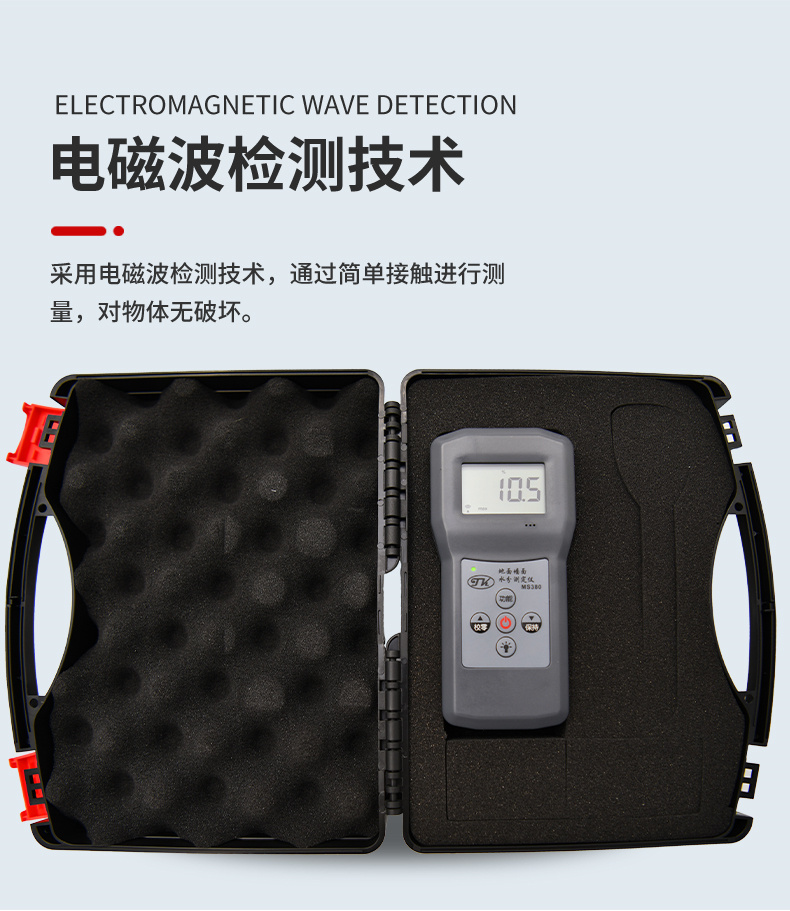

Electromagnetic wave detection technology is used to measure through simple contact without damage to objects.

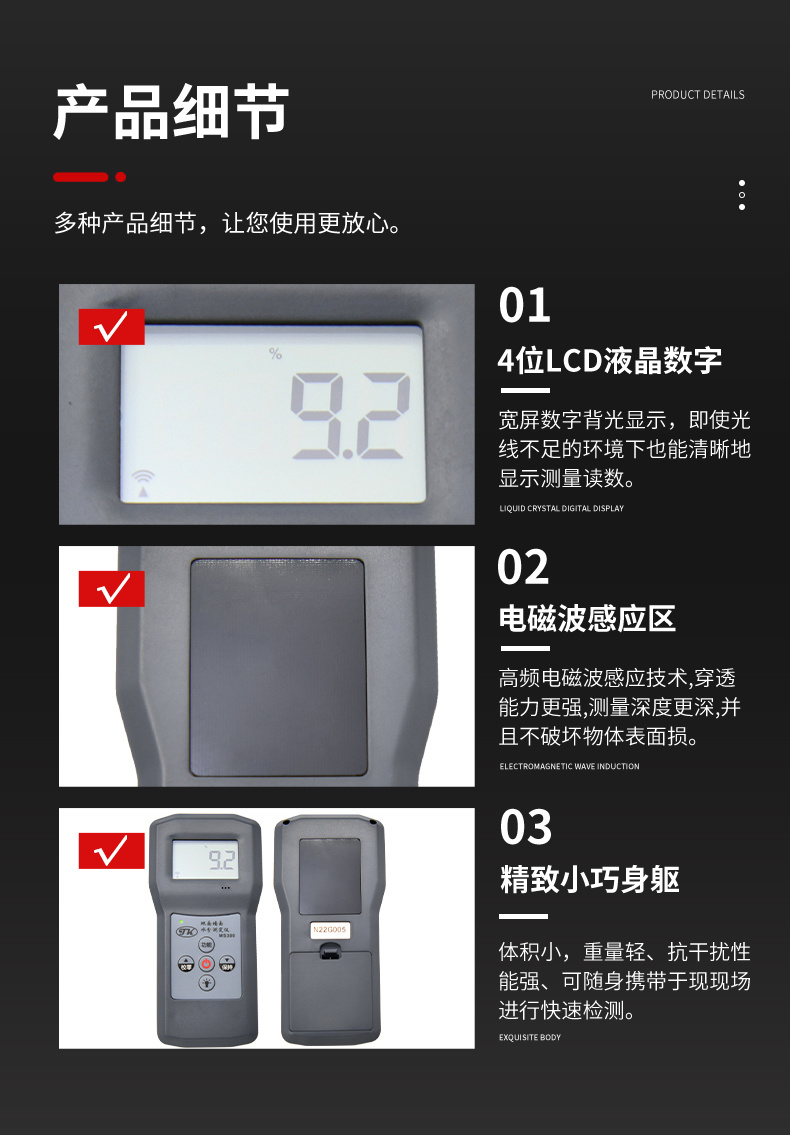

The wide-screen digital backlight display can clearly display the measurement readings even in low-light environments.
The measurement speed is fast, which can replace the traditional oven method, shorten the moisture determination time, the whole process operation is less than 1 minute, and the measured value is displayed immediately, which greatly saves the precious time of the testing personnel.

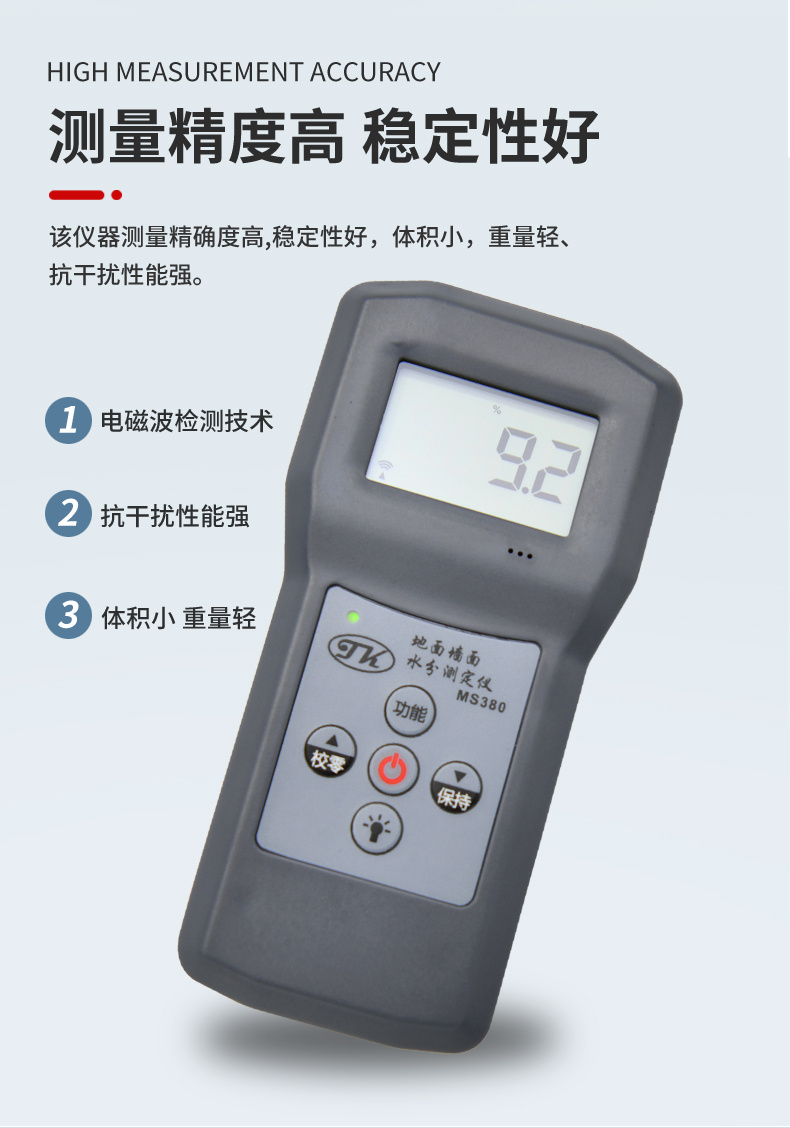

Small size, light weight, strong anti-interference performance, can be carried on-site for rapid detection.

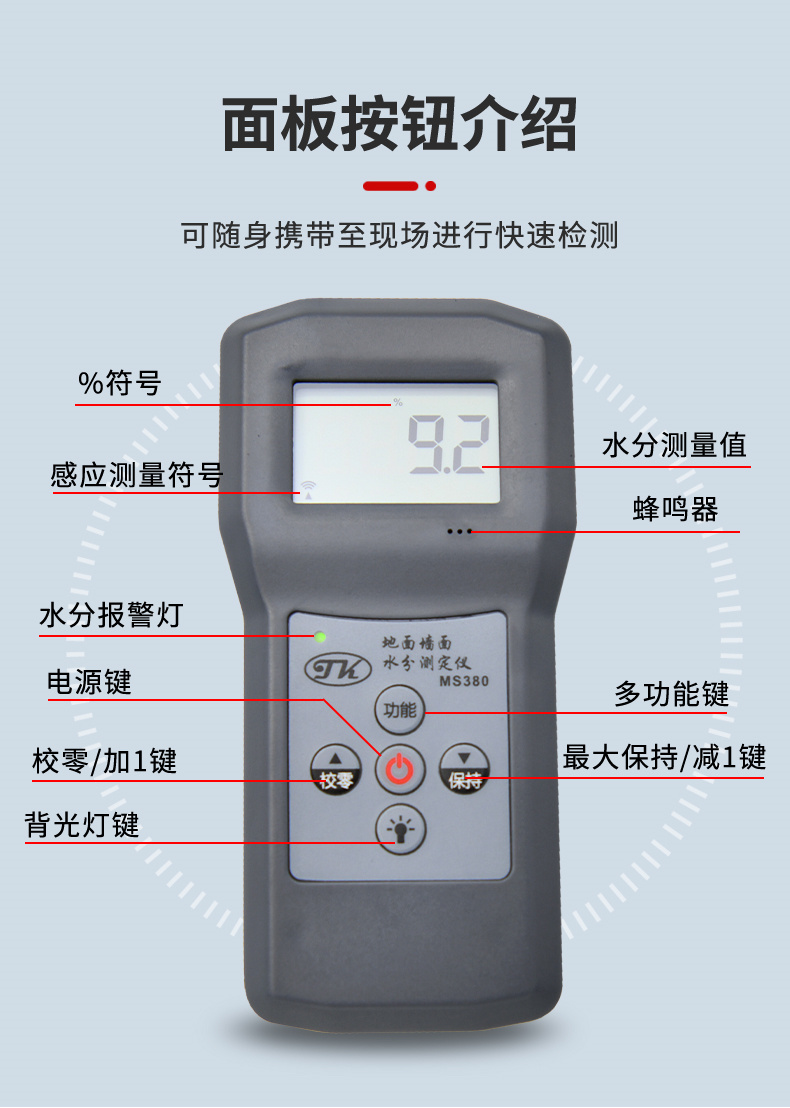

Alarm function, the function of holding the maximum value of the measured value.
Different codes are selected according to different species, which greatly improves the accuracy of measurement.
Auto power off function.
- 1ASTM C1789《Standard Test Method for Calibration of Hand-Held Moisture Meters on Gypsum Panels》
- 2ASTM D7438《Standard Practice for Field Calibration and Application of Hand-Held Moisture Meters》
- 3ASTM D7438《Standard Practice for Field Calibration and Application of Hand-Held Moisture Meters》
- 4GB/T 44420-2024《Method for rapid determination of moisture content of bamboo and wood collection》
