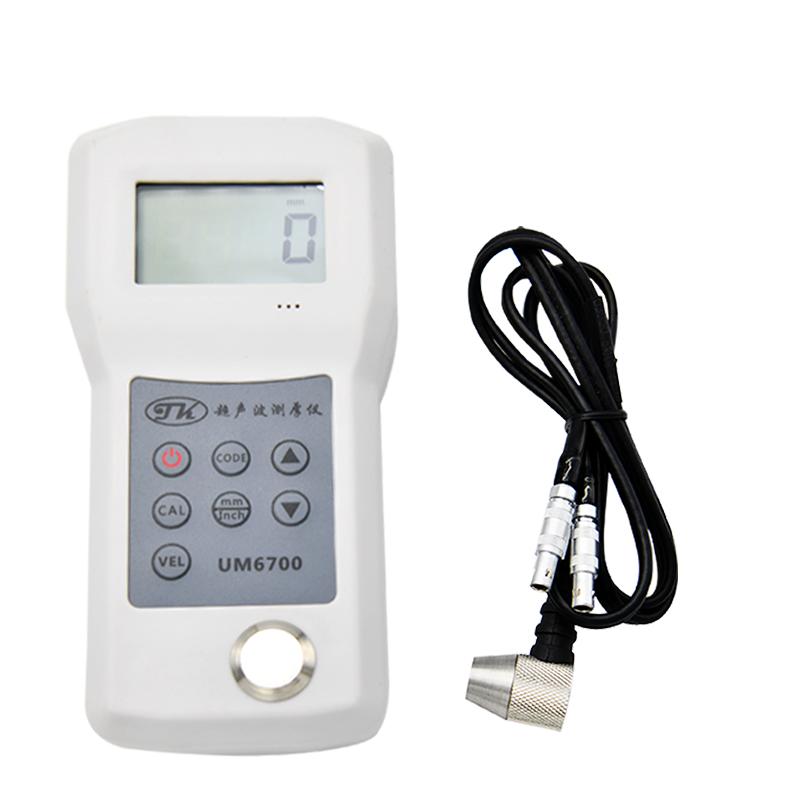

TSINGTAO TOKY UM6700 Portable Ultrasonic Thickness Gauge 1.0~300mm
SE
UM6700
-
IPRE UT150 Ultrasonic Thickness Gauge measurement range 1~ 225mm$ 234.00SE -
LEEB331 Metal Ultrasonic Thickness Gauge Speed of sound adjustable$ 332.00SE -
TSINGTAO TOKY UM6500 Ultrasonic Thickness Gauge 1.0~300mm$ 161.00SE -
TSINGTAO TOKY UM6800 Ultrasonic Thickness Gauge Accuracy 0.05mm$ 270.00SE -
PRUT210 Ultrasonic Thickness Gauge Film thickness range 0.75~ 225mm
TSINGTAO TOKY UM6700 Ultrasonic Thickness GaugeSPEC
TSINGTAO TOKY UM6700 Ultrasonic Thickness GaugeDetails
TSINGTAO TOKY UM6700 Ultrasonic Thickness GaugePacking list
- SKU
- NB040834
- Measuring range
- 1.0~300mm (determined by the probe, special requirements can be customized)
- Measurement error
- ±(0.5%n+0.1)
- Display resolution
- 0.1mm
- Sound speed range
- 500-9000m/s
- Display
- Large screen backlit LCD digital liquid crystal display
- Operating Temperature
- 0-40℃
- Operating Humidity
- ≤90%RH
- Power
- 4 AA batteries
- Host size
- 140mm×60mm×24mm
- Weight
- 185g
- Material code
- 11 groups
Applications
Used for non-destructive measurement of various plates and various processed parts, and can monitor various pipelines and pressure vessels in production equipment, and monitor their thinning degree after being corroded during use.
Widely used in various fields such as petroleum, chemical industry, power station, metallurgy, shipbuilding, aviation, aerospace, machine manufacturing and pressure vessels, chemical equipment boilers, oil storage tanks, etc.
Measurable materials: thickness of steel, cast steel, aluminum, brass, zinc, quartz glass, polyethylene, gray cast iron, ductile iron, ceramics, plastics and any other good conductors of ultrasonic waves.
Features
Large-screen LCD digital display with high-brightness backlight is convenient for use in dimly lit environments.
Metric and imperial free conversion function.
Coupling status prompt function.
Low battery indication function.
Automatic shutdown power saving function.
If the thickness is known, the speed of sound can be reversely measured to improve the measurement accuracy.
Optional RS232/USB/Bluetooth data transmission.
