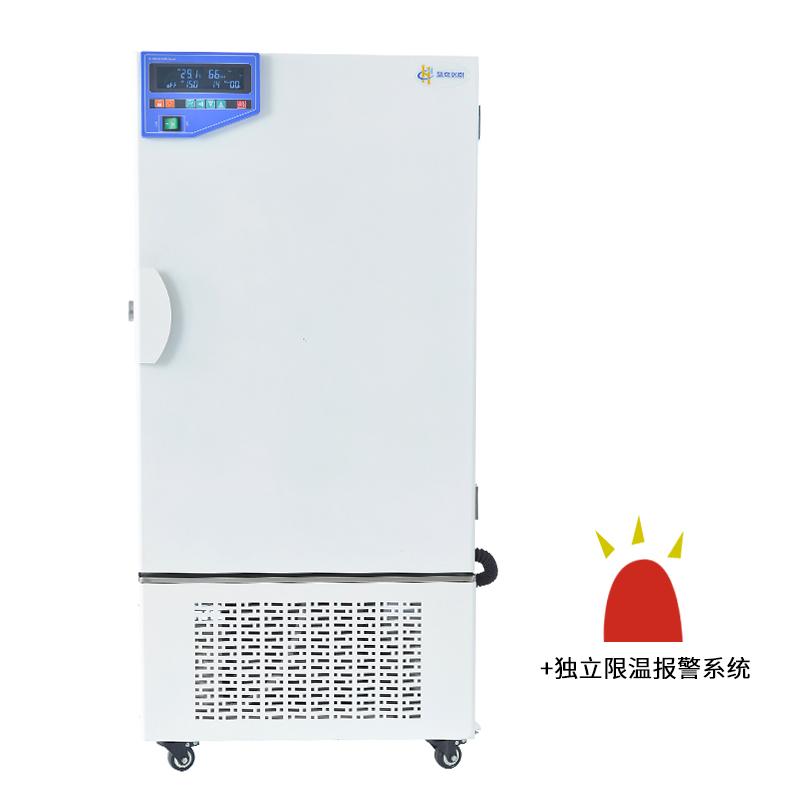

Huitai LHS-250SCN constant temperature and Humidity Test Chamber 0~65 ℃/250L with independent temperature limit alarm system

LHS-250SCN + independent temperature limit alarm system

Constant temperature and Humidity Chamber

With independent temperature limit alarm system, double door structure, temperature control 0~65 ℃, humidity control 40~95% RH, volume 250L, PID temperature control, international brand compressor and humidity Sensors.

Overview

The constant temperature and Humidity Chamber has a precise temperature and humidity control system. It provides various environmental simulation conditions for industrial research and biotechnology testing. Therefore, it can be widely used in sterility tests and stability checks in pharmaceuticals, textiles, and food processing. As well as testing of raw material properties, product packaging, and product life of industrial products.

Features

humanized design

Large-screen LCD display, multi-group data display on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)

Use 134 a fluorine-free refrigerant, effective, energy-saving, and make the environment healthier!

It adopts mirror stainless steel liner, the semi-circular arc design of the four corners is easy to clean, and the distance between the shelves in the box can be adjusted.

The wind speed of the equipment fan can be adjusted in "fast and slow" gears to prevent the customer from causing the sample to lose too fast due to water loss during use, and the experiment fails.

The instrument control of the whole machine is placed in the upper left corner of the door panel, the whole machine is beautiful and generous, saving the space for product placement.

The double-layer door structure has good heat insulation performance, and the temperature inside the box will not be affected when observing the situation inside the box.

There is a test hole with a diameter of 25mm on the left side of the box, which is convenient for experimental operation and temperature measurement.

The overall surface of the box is sandblasted, which is not easy to scratch and easy to clean.

Quality Assurance

International brand compressors are used, and the self-developed compressor cooling system can effectively prolong the service life of the compressor.

The JAKEL tube flow circulation fan is used, coupled with a uniquely designed air duct structure, to create a good air circulation system and effectively ensure the temperature uniformity in the box.

It adopts the internationally famous brand humidity sensor and the self-designed built-in Water Tank electric heating tube humidification system to effectively ensure the humidity deviation.

PID control method, accurate temperature control and humidity control with little fluctuation, menu-style operation page, easy to understand and easy to operate.

The program has 99 cycles, each cycle is divided into 30 segments, and each cycle is 99 hours and 59 minutes, which can meet almost all complicated experimental procedures.

Independent temperature limit alarm system ( standard configuration )

If the temperature exceeds the limit, the operation will be automatically interrupted, and the audible and visual alarm will prompt the operator. Ensure the safe operation of the experiment without accidents.

Convenient data processing (optional)

With USB or RS485 interface, it can be connected to a printer or computer, and can record the change of temperature parameters. (optional)

Optional

Intelligent program controller

Independent temperature limit controller

BOD special socket

Embedded printer

RS485 interface and special software

Box door observation window

Test hole 25mm/50mm

Packing list：Host X1, fuse X2, rack X2, water tank X1, certificate X1, manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
