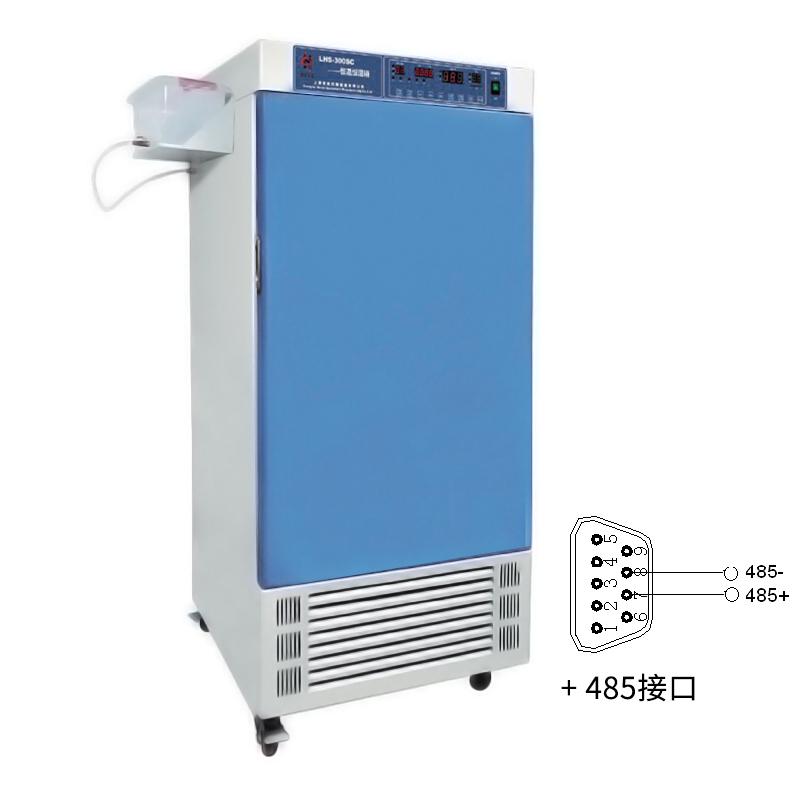

HUITAI LHS-250HC Programmable constant temperature and Humidity Test Chamber -5~ 80 ℃/250L

LHS-250HC + RS485 interface

Constant Temperature and Humidity Chamber

With RS485 interface can connect printers and computers, volume 250L, temperature control -5~ 80 ℃, humidity control 40~85% R.H, standard 3 shelves, PID temperature control, international brand compressor, programmable control.

Overview

The input power of Huitai LHS-250HC constant temperature and Humidity Chamber is 1950W, the volume is 250L, and the temperature control range is -5~80°C. It adopts large-screen LCD display, mirror stainless steel liner, double-layer door structure, and has good thermal insulation effect.The temperature control of the constant temperature and Humidity Chamber is PID control, and the accuracy of temperature and humidity control fluctuates little.

productsuse

HuitaiLHS-250HC constant temperature and Humidity ChamberWith an accurate temperature and humidity control system, it provides various environmental simulation conditions required for industrial research and biotechnology testing, so it can be widely used in sterility testing, stability testing, and raw material performance, product packaging, and product life testing of industrial products such as textiles and food processing.

Features

1. Humanized design

●Large-screen LCD display, multi-group data display on one screen, menu-type operation interface, simple and easy to understand, easy to operate. (Standard)

●The use of 134 A, 406 A fluorine-free refrigerant is effective, energy-saving, and makes the environment healthier!

●It adopts a mirrored stainless steel liner, the four-corner semi-circular arc design is easy to clean, and the shelf spacing in the box is adjustable.

●It adopts double-layer door structure, which has good thermal insulation performance, and does not affect the temperature in the box when observing the situation in the box.

●There is a 25mm/50mm diameter test hole on the left side of the cabinet, which is convenient for experimental operation and temperature measurement. (Optional)

●Optional door viewing window (except optional, SC)

2. Quality assurance

●The use of international brand compressors, self-developed compressor cooling system, can effectively extend the service life of the compressor.

●JAKEL pipe flow circulation fan, with a unique design of air duct structure, creates a good air circulation system, effectively ensuring the temperature uniformity in the box.

●The humidity sensor of the international good brand and the self-designed built-in Water Tank electric heating pipe humidification system can effectively ensure the humidity deviation.

●PID control mode, temperature control, humidity control accurate fluctuation small, menu-style operation page, simple and easy to understand, easy to operate.

●With 99 cycles of programming, each cycle is divided into 30 segments, each section is 99 hours and 99 minutes of cycle steps, which can meet almost all complex experimental processes.

3. Independent temperature limit alarm system (optional)

●If the limit temperature is exceeded, the operation will be automatically interrupted, and the operator will be alerted by sound and light alarm. Ensure the safe operation of the experiment without accidents.

4. Convenient data processing (standard)

●With RS485 interface, it can be connected to a printer or computer, and can record the change of temperature parameters.

Optional

Intelligent program controller

Independent temperature limiting controller

BOD dedicated socket

Embedded printers

RS485 interface and dedicated software

Door viewing window (except SC)

Test hole 25mm/50mm

Comparison table of parameters of LHS series constant temperature and Humidity Chamber

Note: The performance parameters are tested under no-load conditions, without strong magnetism and vibration, and the ambient temperature is 20°C, and the ambient humidity is 50%RH.

1000L and other customized non-standard Incubators can be customized according to user needs.

Packing list：host X1, fuse X2, rack X2, water tank X1, certificate X1, manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
