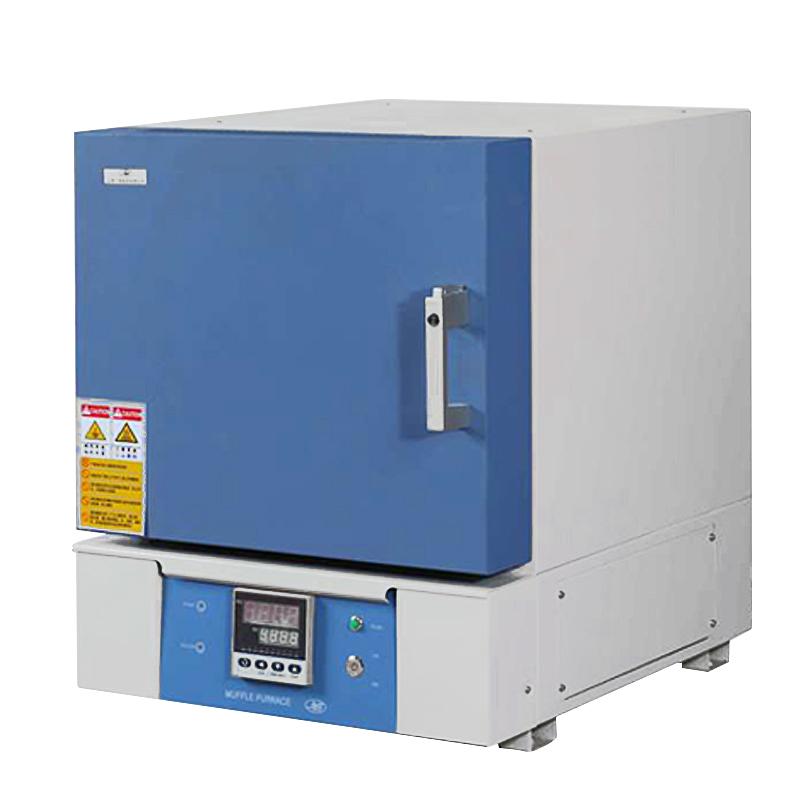

YIHENG SX2-4-10N Resistance Box Furnace input power 4KW refractory brick furnace

SX2-4-10N

Box Furnace

Maximum temperature 1000 ℃, heating workpiece wirecoil for heater, furnace volume 7L, heating power 4KW, furnace size 200 * 300 * 120mm, Power Supply 220V 50Hz, dimensions 520 * 650 * 660mm

Introduction of SX2-4-10N Box-Type Resistance Furnace

SX2-4-10N box-type Resistance Furnace is a box-type Resistance Furnace with refractory brick hearth, which has the advantages of wide application, long life and high cost performance. Controlled by intelligent microcomputer PID, simple, safe, accurate and reliable. The SX2-4-10N box-type Resistance Furnace has an input power of 4KW and a temperature of up to 1000 degrees Celsius, using high-quality electric furnace wire heating elements.

Features

1. The SX2-4-10N box-type Resistance Furnace adopts a unique furnace door design, which is not only easy and safe to open the door, but also the high-temperature gas in the furnace will not leak out.

2. The muffle furnace is controlled by a microcomputer PID controller, and the operation is simple, safe and reliable.

3. The light furnace is not only fire-resistant but also corrosion-resistant, and durable.

4. The SX2-4-10N box-type Resistance Furnace adopts excellent door sealing to make the heat loss very small and increase the uniformity of the temperature in the furnace.

5. When the operator opens the furnace door, the muffle furnace will automatically cut off the heating power with a safety switch to ensure the safety of the operator.

6. SX2-4-10N box-type Resistance Furnace is equipped with various safety protection measures such as over-current, over-Voltage and over-heating to ensure sufficient safety during use.

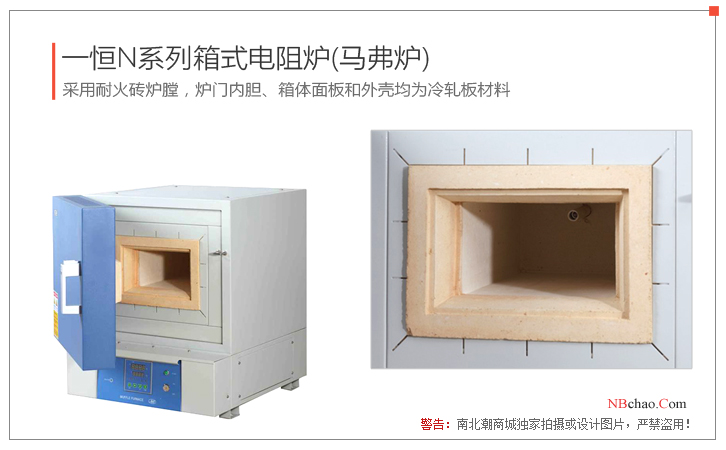

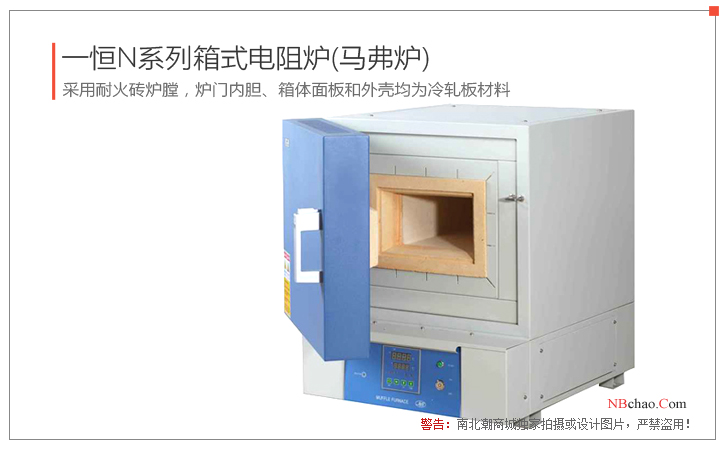

Pictures

Packing list：host x1, instruction manual x1, packing list x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
