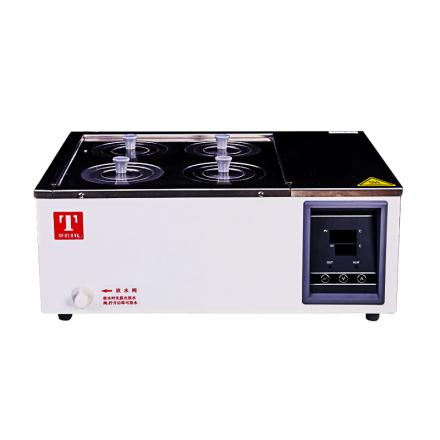

TaiSiTe DK-98-Ⅱ A (double row four holes) Electric thermostatic Water Bath Specifications
Search
Brand：TaiSiTe
Model：DK-98-Ⅱ A (double row four holes)
Name：Electric thermostatic Water Bath
Specifications
| Number of holes | Double row four holes |
| Tank Size | 325*325*120mm |
| Tank Volume | 12.7L |
| Tank Depth | 120mm |
| Temperature range | RT+5~100°C |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Uniformity | ±1.0℃ |
| Total Power | 1.0Kw |
| Timer | 0~999Min (with Timer and waiting function) |
| Dimensions | 515*380*198mm |
| Tank Material | stainless steel plate |
| Display mode | Single digital |
| Power | AC220V/4.5A 50/60Hz |
| Box material | Cold rolled steel plate, surface resistance painting |
| Packing size | 550*480*240mm |
| Temperature setting | Touch key settings |
| Temperature representation | Measuring temperature display: 3-digit digital upper display, setting temperature display: 3-digit digital lower display |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory |
| Sensors | CU50 |
| Safety Devices | Overrise alarm |
| Shelf load bearing | 5kg |
| Shelf Layers | 1st floor |
| Net Weight | 7kg |
| Gross Weight | 8kg |
| Thermal insulation material | Polyurethane |
| heater | Stainless steel heating tube |
| Temperature control mode | PID |
Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
