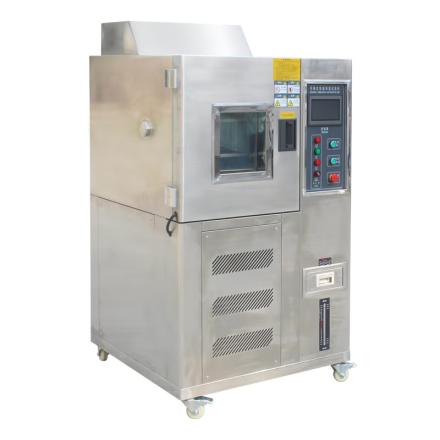

AISRY ASR-50L-40 Programmable Constant Temperature & Humidity Test Chamber Specifications
Search
Brand：AISRY
Model：ASR-50L-40
Name：Programmable Constant Temperature & Humidity Test Chamber
Specifications
| Interior size | 350*300*500mm |
| Dimensions | 870*850*1370m |
| Temperature range | -40~150℃ |
| Temperature control Accuracy | ±0.1℃ |
| Temperature Fluctuation | ±0.5-1℃ |
| Temperature Uniformity | ±1.5-2℃ |
| Humidity Control Range | 20~98%R.H |
| Humidity Control Accuracy | ±0.1℃ |
| Humidity stability | ±1-2%R.H |
| Humidity Uniformity | ±1-3.0%R.H |
| Heating rate | 3 ℃/min nonlinear no-load |
| Cooling rate | 1 ℃/min (no-load nonlinear) |
| Total Weight | 130KG |
| operating Voltage | 220V/50HZ |
| Permissible Voltage Variation | ±10% |
| Maximum Power | 5kw |
| Chamber material | Mirror stainless steel plate (SUS #304) |
| Enclosure Material | Mirror stainless steel plate (SUS #304) |
| top opening | Laser cutting and opening according to the test sample drawings provided by the customer |
| Insulation material | German Bayer polyurethane rigid foam + high density fiberglass |
| Shelf | 1 layer (punching treatment of high-strength SUS304 #stainless steel plate) |
| Maximum number of shelves | 4 layers (shelf spacing is adjustable) |
| Shelf Weight | 20KG |
| Test chamber door | Single door, double-decked door, left opening |
| test hole | A 50mm diameter test hole is opened on the left, and the durability, parcel and protection of the wiring harness far exceed that of domestic ordinary materials |
| Display | Imported 7-inch color touch screen display (touch screen operation control) |
| Temperature Resolution | ±0.1℃ |
| Humidity resolution | ±0.1%R.H |
| Temperature Control system | 9 groups of P.I.D control parameter setting, P.I.D automatic calculation |
| Main components | Air Switch: Japan, Push Button Switch: Taiwan, China, Phase Sequence Protector: Taiwan, China, Time Relay: Taiwan, China, Intermediate Relay: Japan, AC Contactor: Taiwan, China, Solid State Relay: Japan, Sensors: Taiwan, China |
| Environmental temperature | 0~30℃ |
| Specification Environment | 5~25℃ |
| Environmental requirements | Miscellaneous items should not be placed within 60CM around the instrument, and the installation ground should not be severely tilted |
Packing list
machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/40986/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
