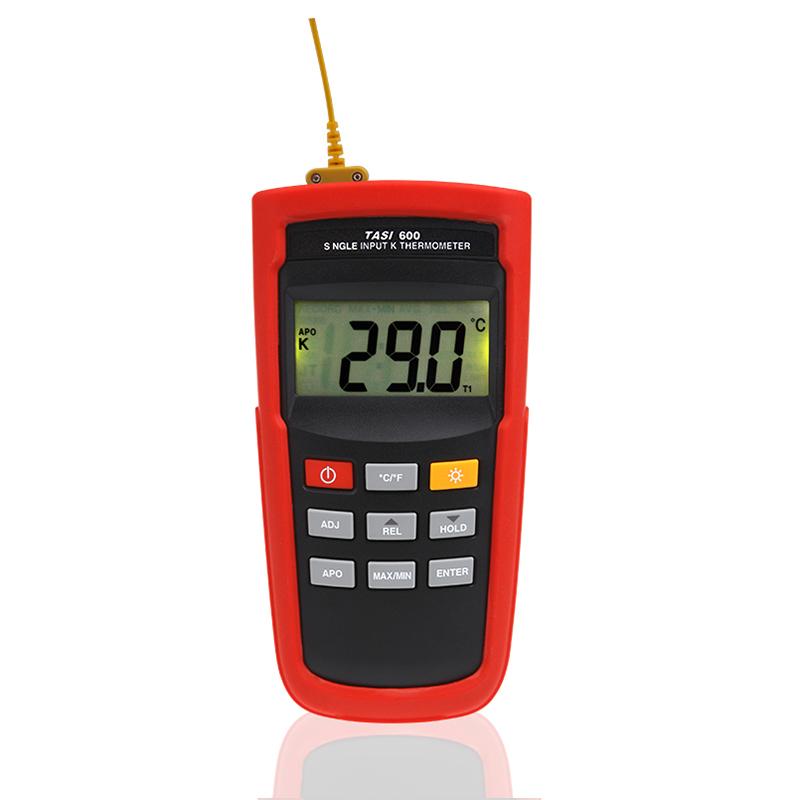

TASI /TASI TASI-600 Thermometer Measurement range: -200 ℃~ 1372 ℃ single channel

TASI-600

Thermocouple Thermometer

Features

1. K-type, single-channel input.

2. The thermoelectric coupling line temperature compensation adjustment reduces the error of the thermocouple line, and the compensation temperature adjustment range ±6°C (±10.8°F).

3. °C and °F unit switching function.

4. Automatic shift 0.1°C/1°C.

5. It has the function of automatic shutdown and backlight display.

6. Maximum, minimum, average, relative reading and reading value retention functions.

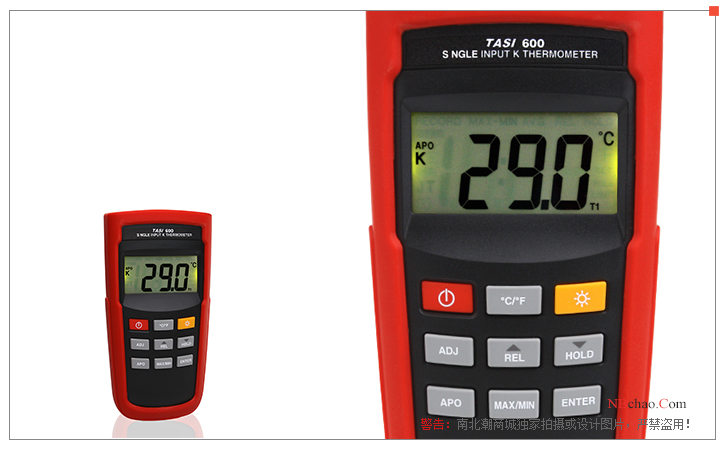

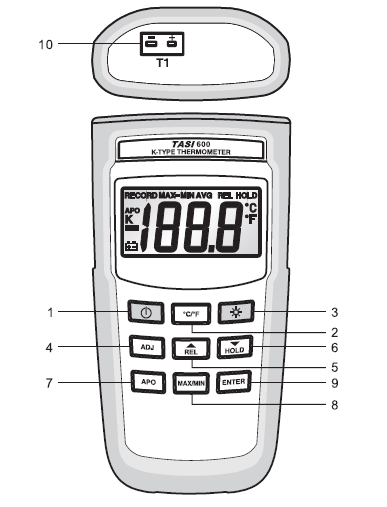

Structural function diagram

1. Power switch button

2. "°C/°F" button: unit switch key

3. "☀" key: backlight function key

4. "ADJ" key: adjust the thermocouple offset value

5. "▲/REL" button: turn on the relative mode of measured values

6. "▼/HOLD" button: enter the measurement value lock mode

7. "APO" key: APO function

8. "MAX/MIN" button: enter MAX and MIN recording mode

9. "ENTER" key: confirm key

10. T1 input of "T1" channel

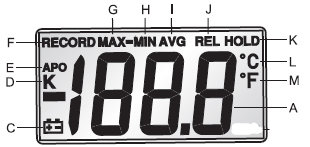

A- Temperature measurement results;C - Low Voltage symbol;D-Hot spot element input type

E - Auto Shutdown Symbol;F - Record Indicator Symbol;G - maximum value indication symbol;

H - Minimum indicator, I - Mean indicator, J - Relative indicator；

K - Readings retain the indicator, L - Celsius temperature unit symbol, and M - Fahrenheit temperature unit symbol

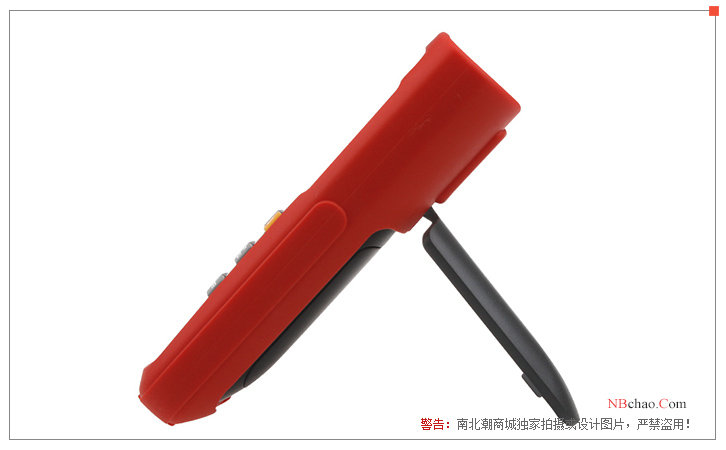

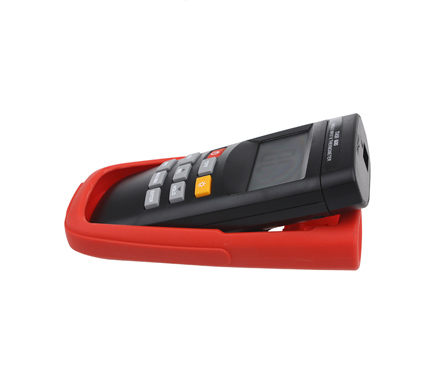

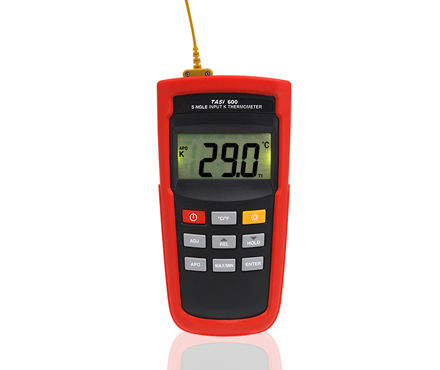

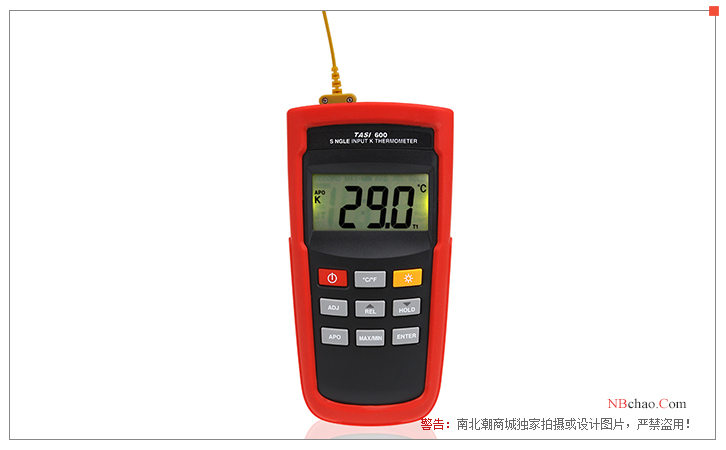

Product display diagram

Precautions for use

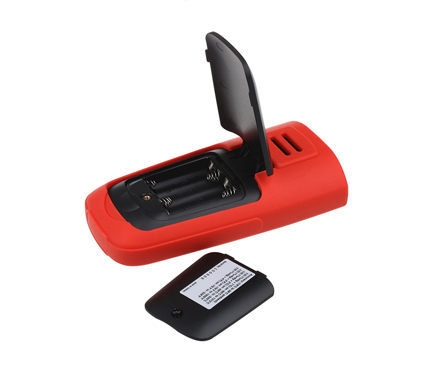

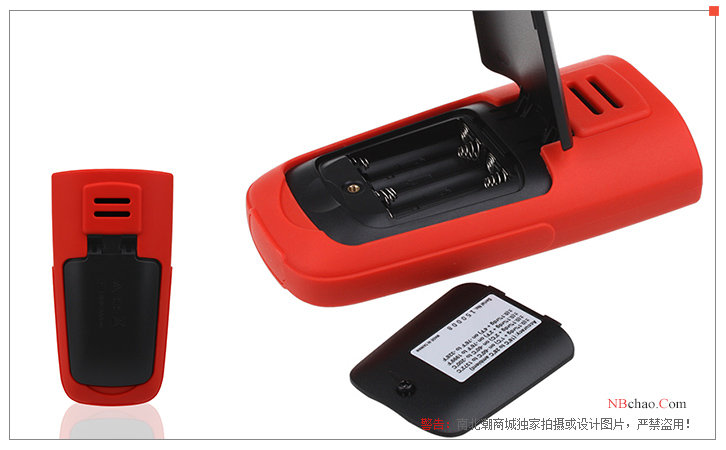

1. If the battery is insufficient, please replace the battery to maintain the accuracy of the test.

2. When the thermometer is not used for a long time, please remove the battery from the thermometer and avoid storing it in a high temperature place. 3. Regularly use a soft damp cloth dipped in neutral detergent to gently wipe the shell, not use an abrasive cloth or solvent with soluble ability to wipe.

3. Repeatedly bending the thermocouple line will break it. Avoiding bending thermocouple wires, especially near corners, can extend the life of thermocouple wires.

Place of use

Greenhouses, offices, laboratories, environmental research, climate monitoring, art galleries, department stores, factories

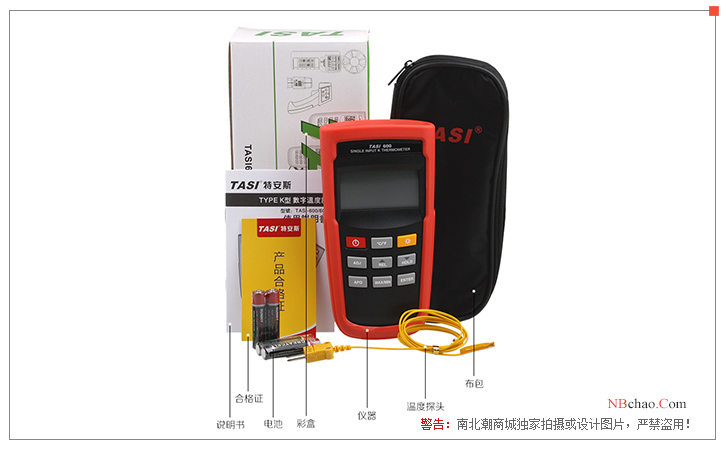

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
