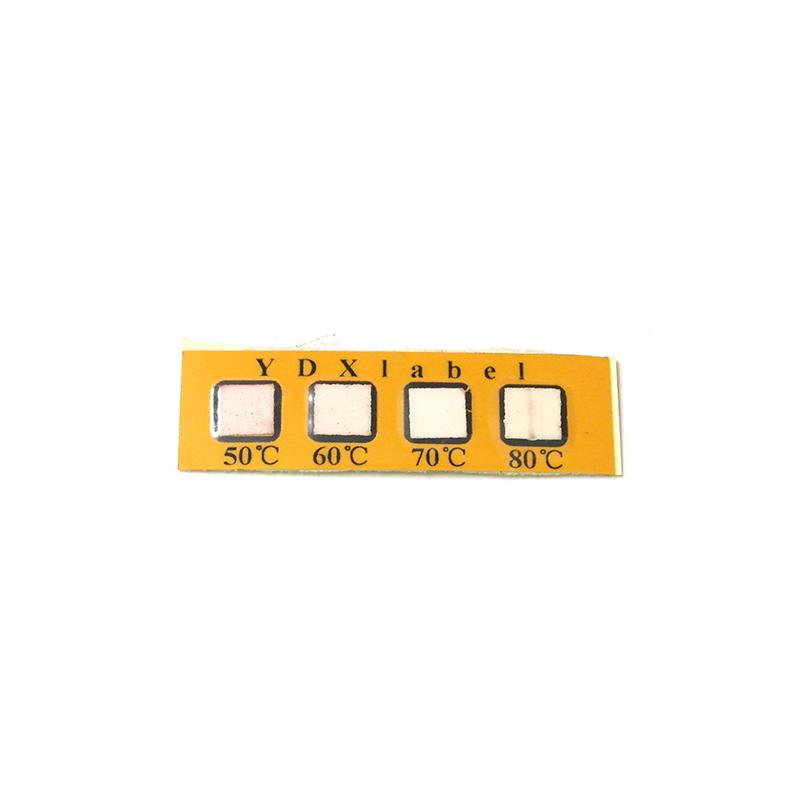

Thermometric Paper Yadongxing DW-4 (50.70.85.120) Thermometric Stickers (90 pieces)

SE
Yadongxing DW-4 Thermometric Paper is a 4-grid color-changing temperature paper, with temperature strips/temperature stickers with various temperature combinations of 50 ℃, 70 ℃, 85 ℃, and 120 ℃
$140.00/sheet
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con

YDX DW-4 ( 50.70.85.120 (AP) — A member of the U.S. Thermometric PaperSPEC

YDX DW-4 ( 50.70.85.120 (AP) — A member of the U.S. Thermometric PaperDetails

YDX DW-4 ( 50.70.85.120 (AP) — A member of the U.S. Thermometric PaperPacking list

SKU
NB004100
Reversibility
Irreversible
number of temperature grids
4 squares
Measurement temperature ℃
50℃|70℃|85℃|120℃
Specifications and Dimensions
12*40mm
Temperature grid shape
rectangle
Encasement Specifications
90 pieces/sheet
DW-4 ( 50.70.85.120 (AP) — A member of the U.S.
Thermometric Paper
Thermometric Paper Yadongxing DW-4 (50.70.85.120) Thermometric Stickers (90 pieces) Picture

product description

Yadongxing DW-4 temperature measuring paper is a temperature measuring paper that can be freely combined from the temperatures of 50°C, 70°C, 85 °C, and 120 °C . This DW-4 type temperature measuring paper is a temperature measuring paper with a temperature starting at 50°C. There are three types (50.60.70.80)/(50.65.80.120)/( 50.70.85.120 ), the specification is 12x40mm, and each sheet has 90 small pieces. DW-4 temperature measuring paper will change from white to red or other colors when it is overheated, and the change is washed, and the contrast is strong.

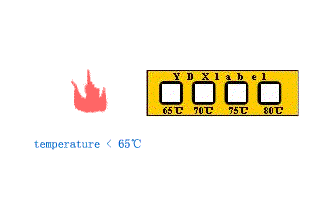

Yadongxing DW-4 temperature measuring paper temperature change animation

Product parameters

modeltemperature rangeNumber of temperature gridsSheets per sheetSize of each piece
DW-4 (50.60.70.80)50 °C, 60 °C, 70 °C , 80 °C4 cells90 tablets12x40mm
DW-4 (50.65.80.120)50 °C, 65 °C, 80 °C , 120 °C4 cells90 tablets12x40mm
DW-4 (50.70.85.120)50 °C, 70 °C, 85 °C , 120 °C4 cells90 tablets12x40mm

Features and advantages

1. DW-4 temperature measuring paper has 4 temperature grid windows, and the specification is 12x40mm/piece.

2. Yadongxing DW-4 (50.60.70.80)/(50.65.80.120)/( 50.70.85.120 ) temperature measuring paper is a fully sealed protective film, which has a strong waterproof and oil-draining function.

3. The temperature measuring paper is small and light, with the function of recording temperature, which is convenient for monitoring and low cost.

4. The temperature measuring paper is irreversible. Once the color changes, it cannot return to the original white.

Pictures

Yadongxing DW-4 (50.60.70.80)/(50.65.80.120)/(50.70.85.120) real shot of temperature measuring paper 1

Yadongxing DW-4 (50.60.70.80)/(50.65.80.120)/(50.70.85.120) real photo of temperature measuring paper

Comparison chart of Yadongxing DW-4(50.60.70.80)/(50.65.80.120)/(50.70.85.120) temperature measuring paper before and after overheating

Comparison chart of Yadongxing DW-4(50.60.70.80)/(50.65.80.120)/(50.70.85.120) temperature measuring paper before and after overheating

Yadongxing DW-4(50.60.70.80)/(50.65.80.120)/(50.70.85.120) temperature measuring paper surface with protective film details

Yadongxing DW-4(50.60.70.80)/(50.65.80.120)/(50.70.85.120) temperature measuring paper surface with protective film details

Yadongxing DW-4(50.60.70.80)/(50.65.80.120)/(50.70.85.120) thermometer paper display

Yadongxing DW-4(50.60.70.80)/(50.65.80.120)/(50.70.85.120) thermometer paper display


Note: The above pictures are based on DW-4 (50.60.70.80) as an example. Yadongxing temperature measuring paper DW-4 can be combined at 50.55.60.65.70.75.80.85.120 degrees, such as 50.60.70.80 or 55.65. 75.85 combination etc. A sheet of 90 pieces, long in shape, each with four temperatures (can be customized).

FAQ
QHow long does this Thermometric Paper need to be kept warm before it changes color?
A When the temperature of the mark is reached, the corresponding grid will change color, usually in a few seconds.
QHow long is the lifespan of the temperature measuring patch (temperature recording label) of Yadongxing?
A Yadongxing's temperature measuring patch can last for many years as long as it is not over-heated, especially indoors. It can be stored for 4-5 years or even longer under normal environment at room temperature. Considering that the industrial site is more complicated and the environment is harsh, we stipulate that as long as the temperature measuring patch is kept white and not over-heated, it can be used for 2-3 years. Patches that have been over-heated and discolored are better replaced in time with maintenance. When storing, it should be stored in a cool and airtight place, and it is forbidden to approach high temperature to prevent over-temperature discoloration; avoid mechanical damage such as direct scratching, scratching, and smashing.
