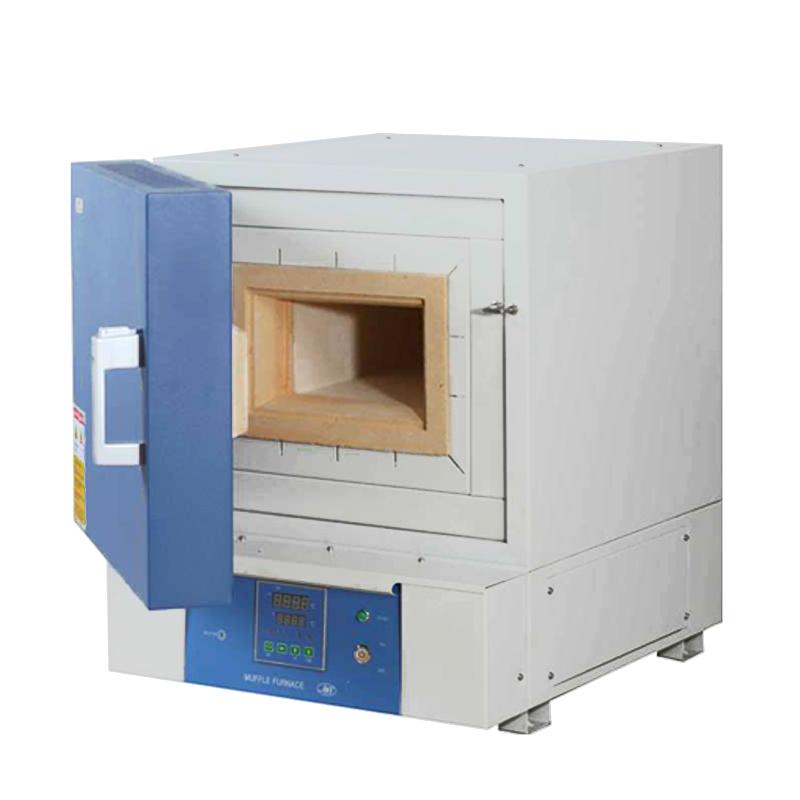

YIHENG SX2-4-10NP programmable Resistance Box Furnace input power 4KW

SX2-4-10NP

Box-Type Resistance Furnace (programmable)

Maximum temperature 1000 ℃, heating workpiece wirecoil for heater, furnace volume 7L, heating power 4KW, furnace size 200 * 300 * 120mm, Power Supply 220V 50Hz, dimensions 520 * 650 * 660mm

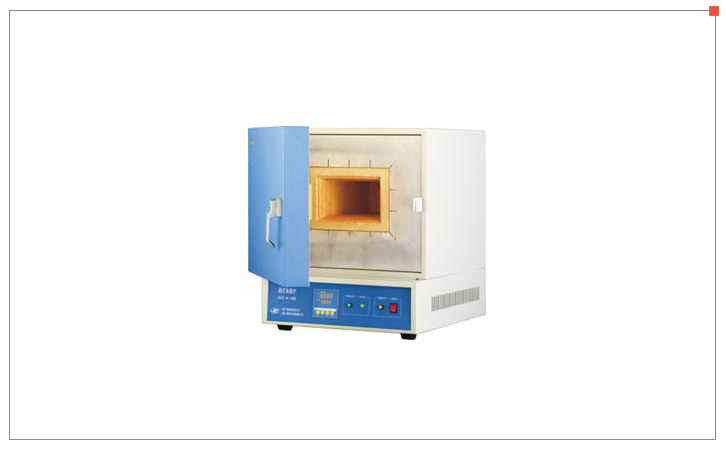

Overview of SX2-4-10NP programmable box-type Resistance Furnace

Yiheng SX2-4-10NP programmable box-type Resistance Furnace is a programmable muffle furnace with multi-stage programmable control to realize automatic control operation. The SX2-4-10NP programmable box-type Resistance Furnace has a comprehensive safety design. It can not only open the furnace door and automatically disconnect the heating power supply, but also has various safety protection measures such as overcurrent, overVoltage, and overheating to ensure the safety of the programmable box-type Resistance Furnace. Furnace operational safety. The input power of SX2-4-10NP is 4KW and the volume is 7L.

Features

1. The SX2-4-10NP programmable box-type Resistance Furnace adopts a programmable controller with 30 programs, each of which can be set to heat up or stay, and provide programmed temperature, time, and heating power cycles.

2. Through multi-stage programmable control, the complex test process is simplified and automatic control and operation are realized. The muffle furnace door liner and box panel are made of stainless steel, which has the advantages of corrosion resistance, high temperature and no deformation.

3. The unique design of the furnace door makes it easy and safe to open the door, ensuring that the high-temperature hot air in the furnace will not leak out.

4. It is controlled by microcomputer PID controller, the temperature control is accurate and reliable, and the operation is convenient and simple.

5. The door of SX2-4-10NP programmable box-type Resistance Furnace is well sealed, the heat is not easy to lose, and the temperature in the furnace maintains good uniformity.

Pictures

Packing list：host x1, instruction manual x1, packing list x1, certificate x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
