Specifications
| Coating method | bar |
| Mayer Rod Thickness Range | 1-571.5 μm (Spreader thickness according to bar model) |
| Mayer Rod Accuracy | ±0.001mm |
| Coating speed | 5-200Mm/s (< 5mm/s can be customized) |
| Spreader distance control | The number can be set arbitrarily within the range of 1-1200mm |
| Substrate clamping method | Mechanical fixture |
| Control mode | Touch screen control |
| Power supply Voltage | 220V 50HZ |
| Dimension | 650 * 410 * 520Mm (length * width * height) |
| Net Weight | 45KG |
| speed control | Infinitely variable speed |
| Bottom plate material | Glass |
| Optional Accessories | Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| customizable function | Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader |
Packing list

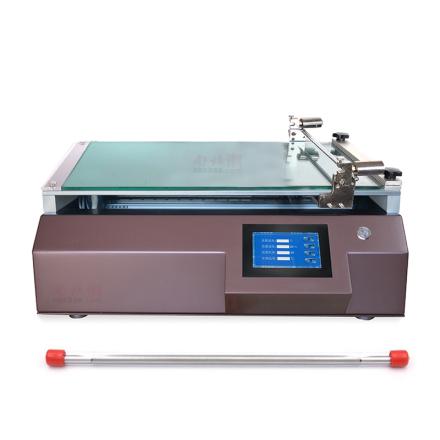

Film Applicator X1, imported bar X1, product manual X1
After-sales instructions
Warranty days: 365 days
The product is a non-standard product, non-product quality problems, does not support return and exchange services, and provides 1-year free warranty service;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/41159/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
