TASI /TASI TASI-601 K Dual channel digital thermometer Measurement range -200 ℃~ 1372 ℃

TASI-601

Thermocouple Thermometer

TASI-601 Digital Thermometer Product Features

◆ High precision thermometer, 0.1% basic accuracy

◆ T1, T2 dual input and T1-T2 function

◆ The large display screen is easy to read

◆ Thermocoupler line temperature compensation adjustment

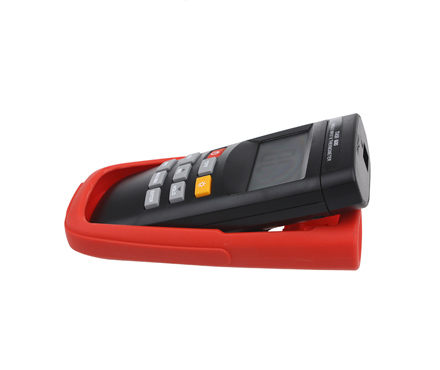

◆ Impact-resistant protective sleeve

◆ °C and °F temperature unit switching function

◆ Automatic shift 0.1°C/1°C

◆ Automatic shutdown function

◆ Backlit display function

◆ Maximum, minimum, average, relative reading and reading value retention functions

◆ Wide range of measurement, suitable for various measurement applications

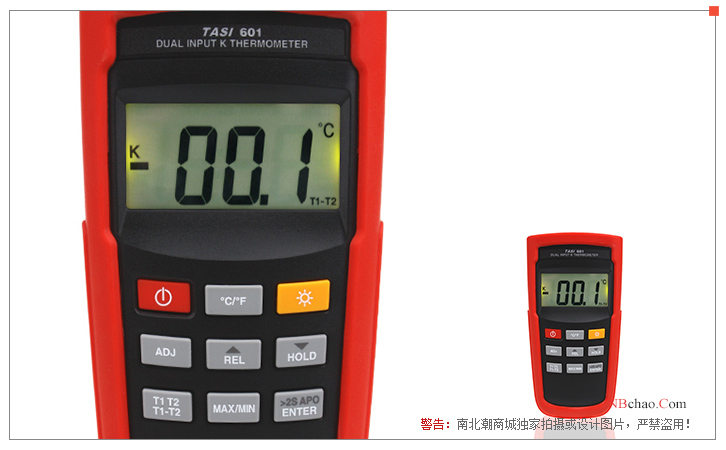

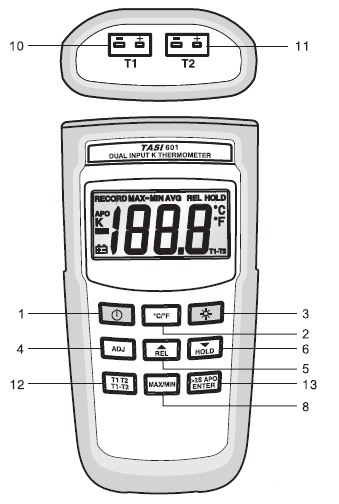

Structural function diagram

1. Power switch button

2. "°C/°F" button: unit switch key

3. "☀" key: backlight function key

4. "ADJ" key: adjust the thermocouple offset value

5. "▲/REL" button: turn on the relative mode of measured values

6. "▼/HOLD" button: enter the measurement value lock mode

7. "APO" key: APO function

8. "MAX/MIN" button: enter MAX and MIN recording mode

9. "ENTER" key: confirm key

10. T1 input of "T1" channel

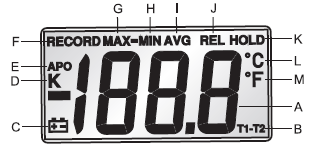

A- Temperature measurement results;C - Low Voltage symbol;D-Hot spot element input type

E - Auto Shutdown Symbol;F - Record Indicator Symbol;G - maximum value indication symbol;

H - Minimum indicator, I - Mean indicator, J - Relative indicator；

K - Readings retain the indicator, L - Celsius temperature unit symbol, and M - Fahrenheit temperature unit symbol

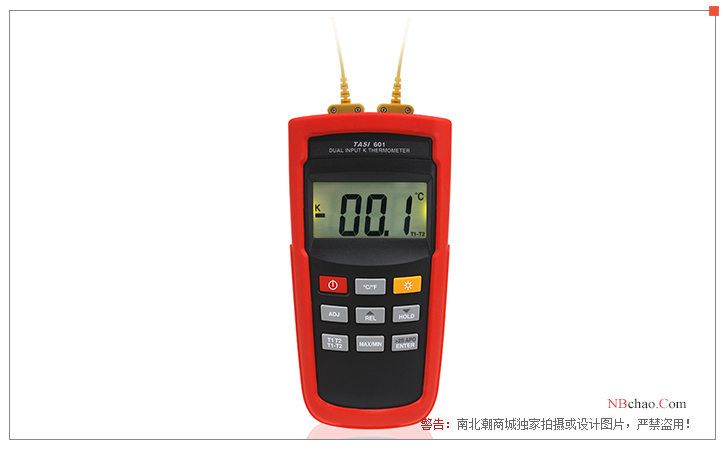

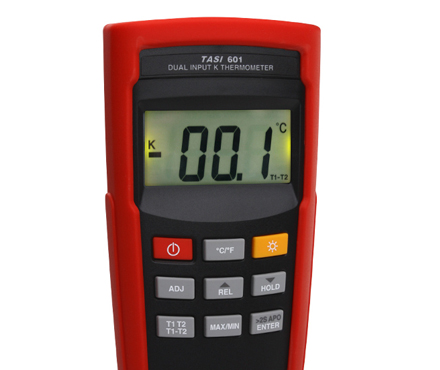

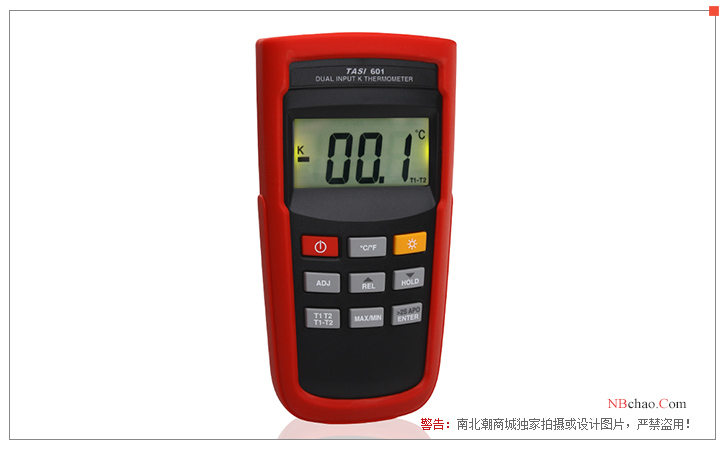

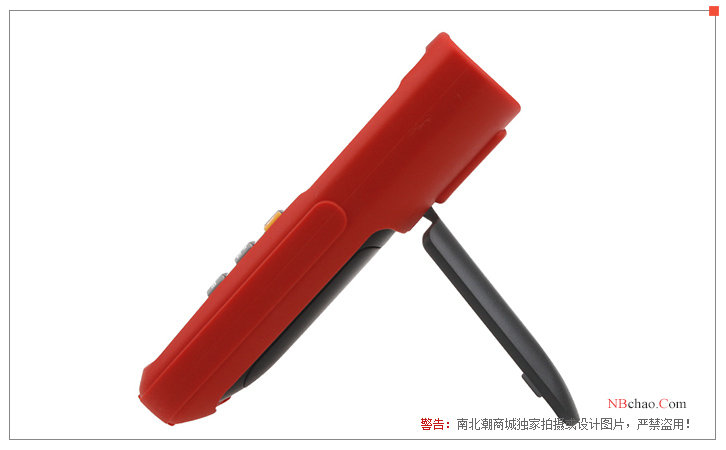

Product display diagram

Safety instructions for the operation of dual-channel digital thermometers

1. Before using the TASI-601 digital thermometer, please read the operation safety instructions and instructions.

2. When the surface measurement Voltage exceeds 24V DC/AC, the measurement needs to be stopped to avoid clicking.

3. Do not use in the microwave oven to avoid burning.

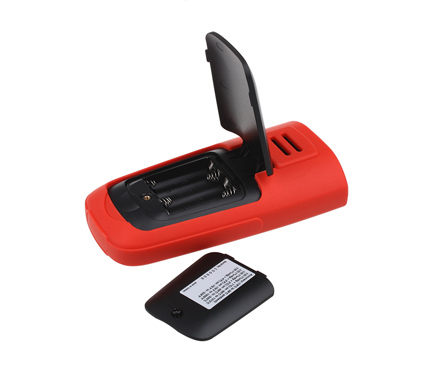

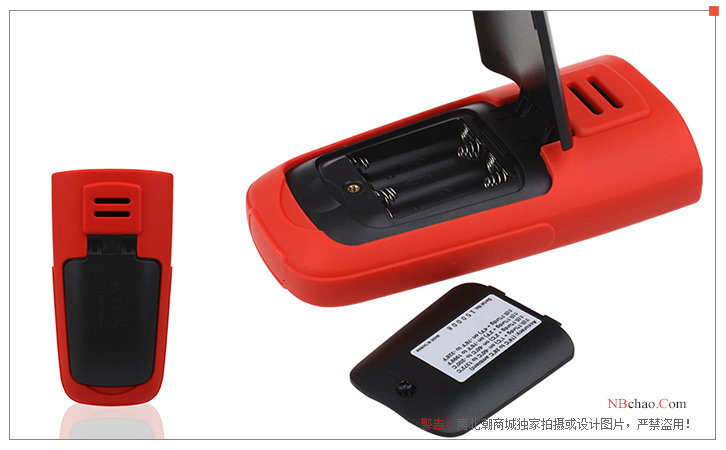

4. Before replacing the battery, be sure to unplug the temperature test wire from the thermometer to maintain safety.

Precautions for the use of digital thermometers

1. If the battery is insufficient, please replace the battery to maintain the accuracy of the test.

2. When the thermometer is not in use for a long time, please remove the battery from the TASI-601 thermometer and avoid storing it in a high temperature place. 3. Regularly use a soft damp cloth dipped in neutral detergent to gently wipe the shell, not use an abrasive cloth or solvent with soluble ability to wipe.

3. Repeatedly bending the thermocouple line will break it. Avoiding bending thermocouple wires, especially near corners, can extend the life of thermocouple wires.

Place of use

Greenhouses, offices, laboratories, environmental research, climate monitoring, art galleries, department stores, factories.

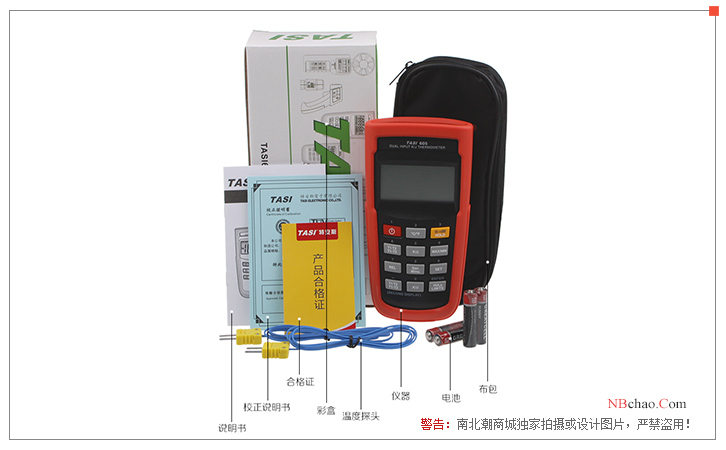

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
