Temperature Indicating Label, Yadongxing BD80 80 ℃ Single Temperature Thermometric Paper (36 pieces)

SE
Yadongxing BD80 color-changing temperature sensor patch, also known as temperature measurement sheet, the temperature range is 80 ℃, a single temperature color-changing temperature test patch with anti-fouling protection, and a special temperature-changing color test paper for equipment temperature test.
$83.00/sheet
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

YDX BD80 Thermometric PaperSPEC

YDX BD80 Thermometric PaperDetails

YDX BD80 Thermometric PaperPacking list

SKU
NB004122
Reversibility
Irreversible
number of temperature grids
1 grid
Measurement temperature ℃
80℃
Specifications and Dimensions
2.5*4mm
Temperature grid shape
rounded rectangle
Encasement Specifications
36 pieces/sheet
BD80
Thermometric Paper

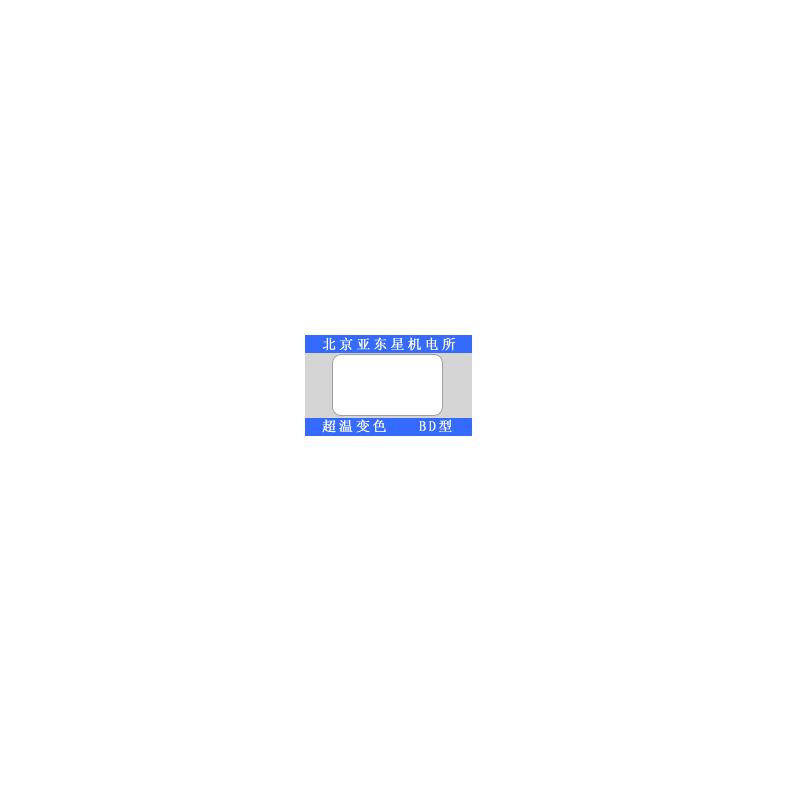

Temperature Indicating Label, Yadongxing BD80 80 ℃ Single Temperature Thermometric Paper (36 pieces) Picture

Introduction

Yadongxing BD series temperature measuring paper is a single-color color-changing temperature measuring patch, with 9 commonly used temperatures of 50°C, 55°C, 60°C, 65°C, 70°C, 75°C, 80°C , 85°C, and 120°C available. Yadongxing BD series temperature measuring paper is attached with an antifouling protective film, which can be very strong against dust, dirt, water, and oil. The window of BD50/55/60/65/70/75/ 80 /85/120 temperature measuring paper will turn red or black after overheating. Once the temperature measuring paper is overheating, it will change color for a long time, even when the temperature cools down. It will not return to its original white color after coming down. The specification of this series of temperature measuring paper is 2.5x4 cm/piece.

Product parameters

modelBD50 _B D 55B D 60B D 65B D 70B D 75B D 80B D 85B D 120
temperature50 °C55 °C60 °C65 °C70 °C75 °C80 ℃85 °C120°C
Specification2.5x4cm/piece
shapeRounded Rectangle
Sheets per sheet36 pieces

Features

1. Yadongxing BD50/55/60/65/70/75/ 80 /85/120 temperature measuring paper is a single-color color-changing temperature sticker with only one temperature point.

2. The temperature measuring paper has pressure-sensitive adhesive, which is sticky.

3. The temperature measuring paper is attached with an antifouling protective film, which has the advantages of strong waterproof, oily and dirty.

4. The size of Yadongxing BD50/55/60/65/70/75/ 80 /85/120 temperature measuring paper is 2.5x4cm/piece.

5. Irreversible temperature measuring patch.

6. Normal service life: 3 years indoors and 2 years outdoors.

Precautions for use

1. The sticking part of Yadongxing BD50/55/60/65/70/75/ 80 /85/120 temperature measuring paper should be clean and dry.

2. Do not touch the temperature measurement patch with your hands during the temperature measurement process.

3. When pasting, stick the temperature measuring paper firmly, pinch the corners tightly, and eliminate the tiny air gaps under the glue surface.

4. Temperature measuring paper BD50/55/60/65/70/75/80 / 85/120 should be stored at room temperature, away from heat sources, and avoid being pinched, folded or scratched.

Pictures

Real shot of Yadongxing BD50/55/60/65/70/75/80/85/120 temperature measuring paper

FAQ
QHow long does this Thermometric Paper need to be kept warm before it changes color?
A When the temperature of the mark is reached, the corresponding grid will change color, usually in a few seconds.
QHow to store the BD80 color-changing temperature measurement patch after purchase, is there anything I need to pay attention to?
A Hello, the color-changing temperature measurement patch should be stored at room temperature, away from heat sources, to avoid tying, folding or scratching.
QHow long is the lifespan of the temperature measuring patch (temperature recording label) of Yadongxing?
A Yadongxing's temperature measuring patch can last for many years as long as it is not over-heated, especially indoors. It can be stored for 4-5 years or even longer under normal environment at room temperature. Considering that the industrial site is more complicated and the environment is harsh, we stipulate that as long as the temperature measuring patch is kept white and not over-heated, it can be used for 2-3 years. Patches that have been over-heated and discolored are better replaced in time with maintenance. When storing, it should be stored in a cool and airtight place, and it is forbidden to approach high temperature to prevent over-temperature discoloration; avoid mechanical damage such as direct scratching, scratching, and smashing.
