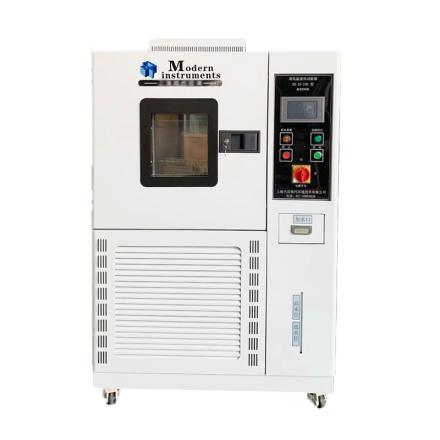

Moderner XTH-080A High-low temperature alternating (heat and humidity) Test Chamber Specifications
Search
Brand：Moderner
Model：XTH-080A
Name：High-low temperature alternating (heat and humidity) Test Chamber
Specifications
| Power | AC220V 50Hz |
| Maximum current | 23A |
| Maximum Power | 11.2KW |
| Temperature control method | Equilibrating Conditioning (BTC) |
| Temperature range | -20~150℃ |
| Humidity control range | 20~98%R.H |
| Temperature Fluctuation | ±0.5~±1℃ |
| Temperature Uniformity | ≤2℃ |
| Temperature deviation | ≤±2℃/+2~ -3%RH |
| Heating rate | 2~3℃/min |
| Cooling rate | 0.7~1.5℃/min |
| Enclosure Material | Cold rolled steel plate |
| Chamber material | SUS304 2B stainless steel plate |
| Insulation material | Rigid Polyurethane Foam (+ Ultrafine Glass Cotton) |
| refrigeration method | Single compression refrigeration (air-cooled) |
| Refrigeration system | Imported fully enclosed compressor |
| Compressor Capacity | 3HP |
| Condenser | Heat sink type chilling down (double as dehumidifier) |
| Water supply method | Electromagnetic pump |
| Water tank Capacity | 20L |
| Heating system | Nickel chromium wire heating |
| blower | centrifugal fan |
| Temperature transducer | High-precision platinum resistor (PT100) |
| Controller | UMC1200 programmable touch LCD Controller with remote monitoring and debugging software package |
| Interior Volume | 800L |
| Interior size | 1000*1000*800mm |
| Dimensions | 1460*2160*1240mm |
| Weight | 610kg |
