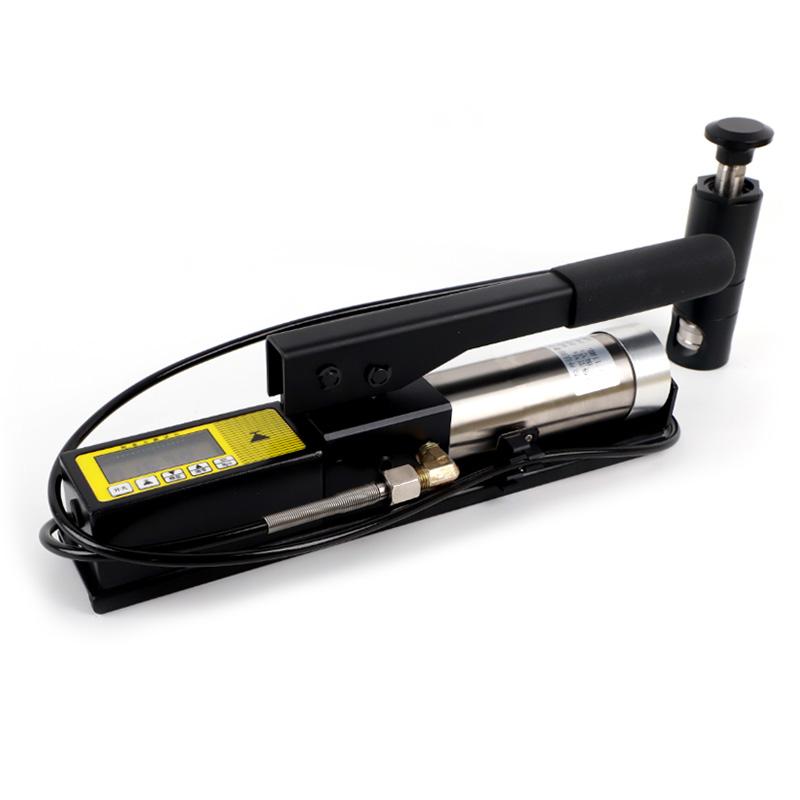

CHINA Pull-off adhesion Tester NBC-M kit 20mm

NBC-M 20mm

Pull method adhesion Detector

Range 0-31.84 MPa, can measure metal, concrete and Miscellaneous material coating adhesion, can be used in both laboratory and field.

Introduction

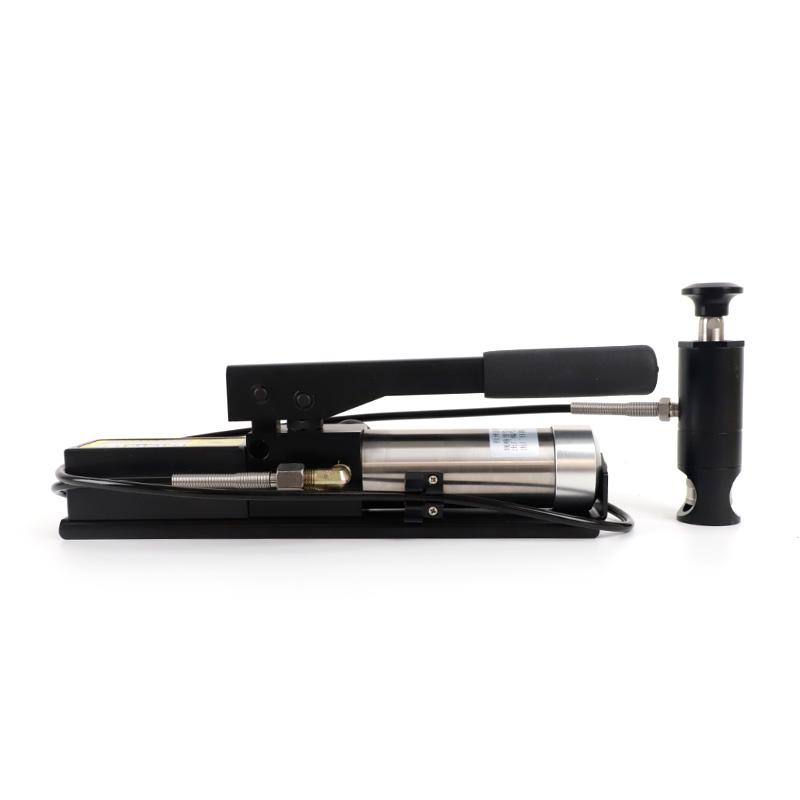

The NBC-M pull-off adhesion Tester measures the adhesion of coatings made of metal, concrete, and other materials – the self-positioning feature revolutionizes the way adhesion is measured. The working principle of the instrument is to use the hydraulic system to detach the coating of a certain diameter on the surface of the substrate to measure the adhesion of the coating, and the multi-function digital display of the Tester shows the size of the adhesion, which is displayed in MPa or KN. The product is designed and manufactured according to relevant international and national standards, with reliable technology and stable performance.

Meets standards

① ISO 4624 《Paints and varnishes-Pull-offtest for adhesion》

② ASTM D 4541 《StandardTest Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers》

③ ASTM D7234 《Standard Test Method for Pull-OffAdhesion Strength of Coatings on Concrete Using Portable Pull-Off Adhesion Testers》

(4) GB/T 5210-2006

Features

1. Portable handheld instrument, which can be used in any place without external power supply - it can be used in both laboratory and field.

2. Large and easy-to-read LCD digital display

3. Press the button to select the spindle size, measurement unit and storage data, and automatically calculate the result according to the spindle size.

4. Portable instrument case with alloy and stainless steel body, rainproof, dustproof and impact-proof.

5. The high-quality hydraulic pump can be applied to any occasion with a three-year warranty.

6. The pressure and display system are calibrated by standard dynamometers, and the accuracy is controlled within ±1% (full scale).

7. Self-positioning spindle has no effect on the measurement results on smooth and rough surfaces.

8. High-grade industrial pressure sensor to ensure continuous high precision.

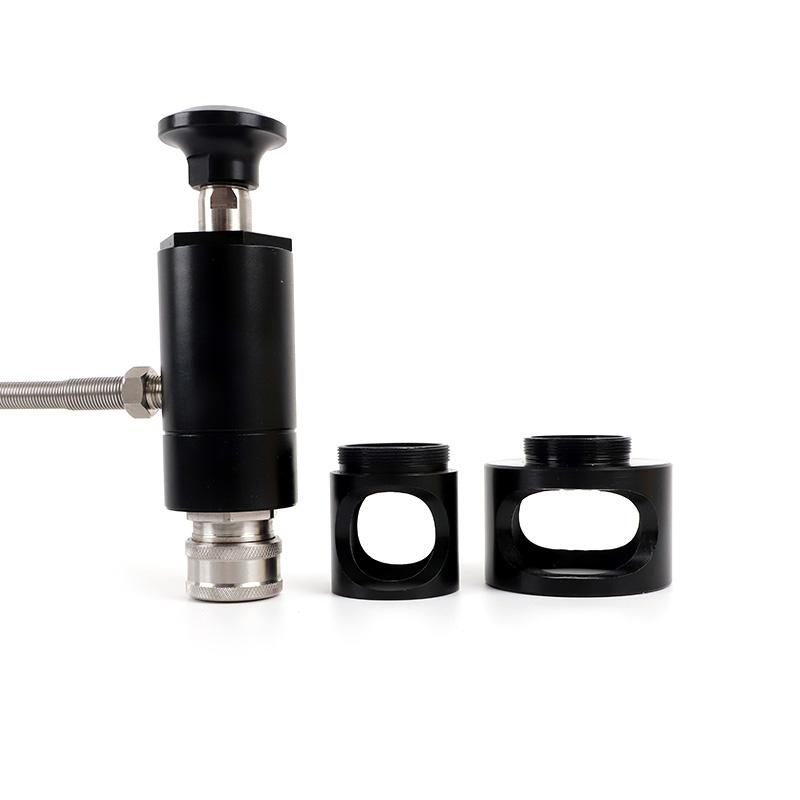

9. 10mm, 14mm, 20mm and 50mm spindles are available.

10. LCD liquid crystal display, MPa or KN unit can be selected by pressing the button.

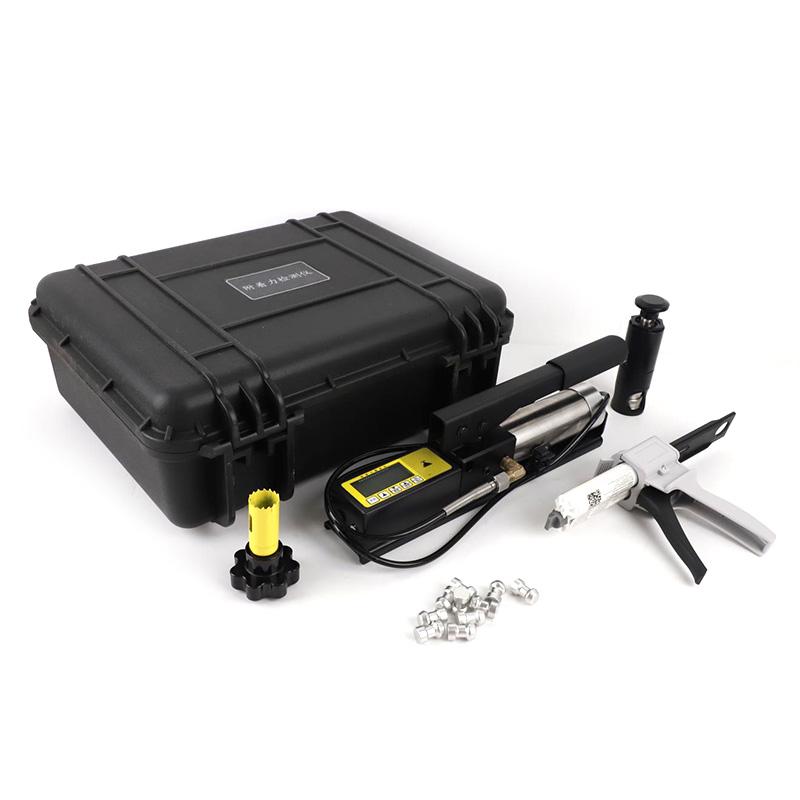

Packing list：Host X1, quick pull sleeve X1, charger X1, standard 20mm kit X20, cutter X1, grinding pad X6, adhesive X1, certificate X1, manual X1, portable instrument case X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
