CHINA Twin roll extrusion coater TBJ-SDJY-DJ formed Automatic Film Applicator

SE
Adjustable Manual Double Stick Extrusion Spreader, Chrome Plated Roller, Adjustable Range 0.3-10mm, Customized.
$3957.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con

zy TBJ-SDJY-DJ Double roll extrusion coaterSPEC

zy TBJ-SDJY-DJ Double roll extrusion coaterDetails

zy TBJ-SDJY-DJ Double roll extrusion coaterPacking list

SKU
NB041339
Coating method
Adjustable roller coating
Effective application width
0-400mm
Coating speed
0~5m/min
Host Power
220V 50Hz
Roll surface width
0-400mm
Extrusion unit - extrusion method
Double roll extrusion
Extrusion Unit - Double Roll Material
chrome roller
Extrusion Unit - Adjustable Range
0.3-10mm
Extrusion Unit - Spreader Thickness
0.3-10mm
Extrusion Unit - Spreader Adjustment
Handwheel adjustment, dial indicator display
Extrusion unit - Spreader Accuracy
±0.05mm
Extrusion Unit - Dip Tray Material
304 stainless steel
TBJ-SDJY-DJ
Double roll extrusion coater
Adjustable Manual Double Stick Extrusion Spreader, Chrome Plated Roller, Adjustable Range 0.3-10mm, Customized.

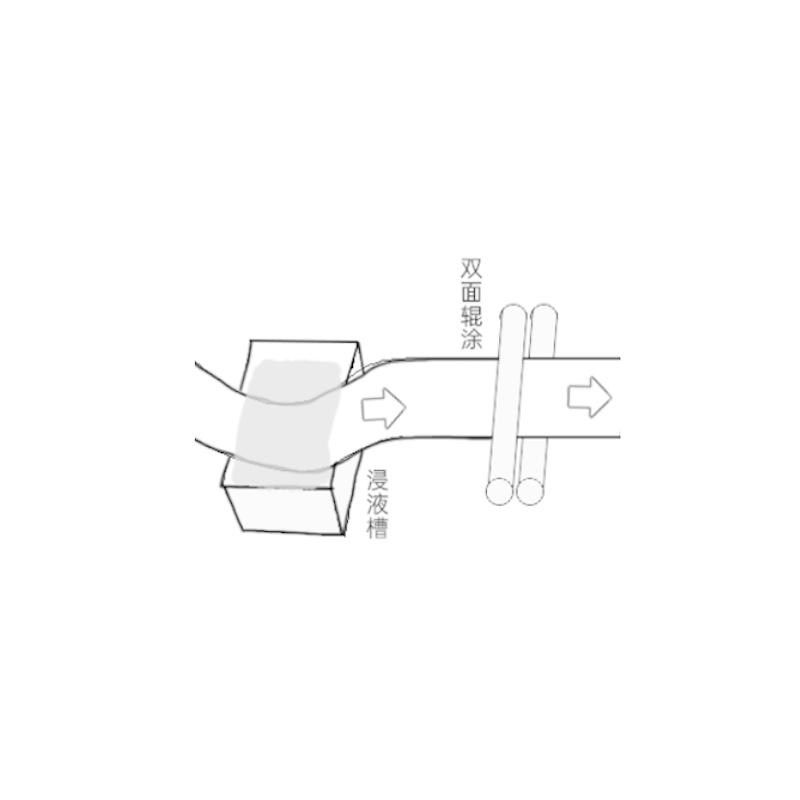

CHINA Twin roll extrusion coater TBJ-SDJY-DJ formed Automatic Film Applicator Picture

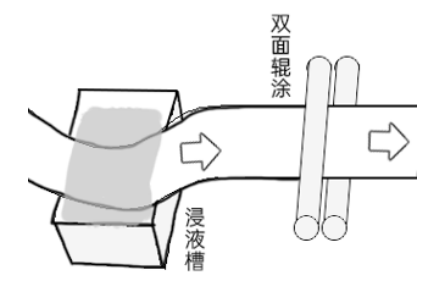

Chinese TBJ-SDJY-DJ double-roll extrusion coating machine details Figure 1

main part configuration

(1) Extrusion unit

Extrusion method: double roll extrusion

Double roll material: chrome plated roll

Adjustable range: 0.3-10mm

Coating thickness: 0.3-10mm

Coating adjustment: hand wheel adjustment, dial gauge display

Coating accuracy: ±0.05mm

Dip tray material: 304 stainless steel

FAQ
QBubble dishes, a few millimeters, Slurry, extrusion, stoving Process requirements Soak, squeeze, dry, 300mm width
A Customized, TBJ-SDJY-DJ double roll extrusion coater
