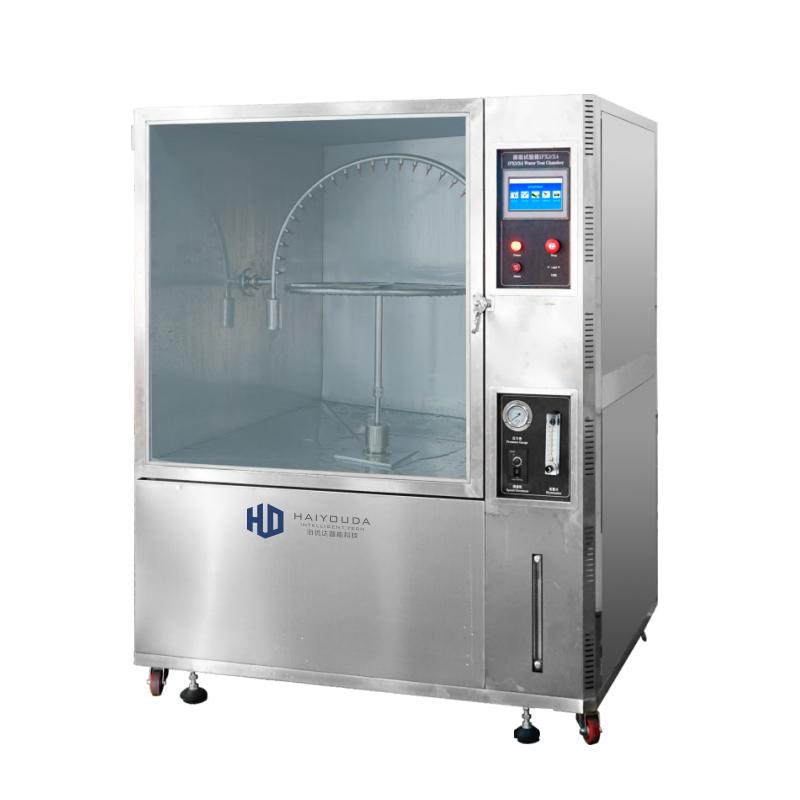

HUDA dripping Test Chamber QD-E710-IPX34-225 Inner volume 225L

QD-E710-IPX34-225

Drip Test Chamber

Stainless steel plate, volume 500 × 750 × 600mm, with 350-degree pendulum pipe and 360-degree rotary rod water spray device, water spray ring radius 300mm, suitable for electrical product testing.

HUD-E710 is suitable for testing whether electrical products, casings and seals can ensure good performance of equipment and components in rainy environments. This product adopts scientific design, which enables the device to realistically simulate various environments such as dripping, pouring, splashing, and spraying.

Features

• The outer shell of the box is made of stainless steel plate with hairline treatment, and the inner tank material is made of stainless steel light plate.

• The large-area visible glass door is convenient for observing the condition of the tested sample in the Test Chamber.

• Using high-quality fixed PU movable wheels, it is convenient for users to move

• It has a 350-degree swing tube and a 360-degree rotary rod water spray device, and a sample stage with adjustable speed.

• The comprehensive control system and the adoption of frequency conversion technology enable the rotation angle of the rainfall test sample rack, the swing angle of the water spray pendulum and the swing frequency of the water spray volume to be automatically adjusted.

Standards

GB/T4208, EC60529, GB2423,38-90, GB4706.32-2004, IEC-5129.

test application

For the IPX4 water spray test, select a pendulum tube with an appropriate radius, so that the height of the sample table is at the diameter of the pendulum tube, and place the sample on the sample table so that the distance from the top of the sample to the water nozzle of the sample is not greater than 200mm; Test conditions: water flow Calculated according to the number of spray holes of the swing pipe, each hole is 0.07 L/min. The water spraying area is the water spraying holes in the 90° arcs on both sides of the midpoint of the pendulum pipe to the samples. The sample to be tested is placed in the center of the semicircle of the swing tube. The swing pipe swings 180° along both sides of the vertical, a total of about 360° (IPX3 swings 60°, a total of 120°), test time: continuous watering for 10 minutes. The test is completed to verify whether the product meets the standard requirements.

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
