China Bar Coater TBJ-A1-DJ4 Draw-Down Applicator customized film area 450 * 500mm

Simple coater, single bar type, suitable for low viscosity samples or ultra-thin film high-precision Spreader, standard imported high-precision bar; Glass baseplate, effective coating area 450 * 500mm, touch screen operation.

$2403.00/set

PromotionLoading...

Coupon

Model：

TBJ-A1-DJ4

Manufacturer authorization

Contact

Details SPEC Con CAT OI

zy TBJ-A1-DJ4 Automatic Film ApplicatorSPEC

zy TBJ-A1-DJ4 Automatic Film ApplicatorDetails

zy TBJ-A1-DJ4 Automatic Film ApplicatorPacking list

SKU: NB041461

Coating method: bar

Mayer Rod Thickness Range: 1-571.5 μm (Spreader thickness according to bar model)

Mayer Rod Accuracy: ±0.001mm

Coating speed: 5-200Mm/s (< 5mm/s can be customized)

Spreader distance control: Numbers can be set arbitrarily within the range of 1-500mm

Substrate clamping method: Mechanical fixture

Control mode: Touch screen control

Power supply Voltage: 220V 50HZ

Dimension: 750 * 510 * 520Mm (length * width * height)

speed control: Infinitely variable speed

Bottom plate material: aluminum alloy

Optional Accessories: Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle

customizable function: Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader

TBJ-A1-DJ4

Automatic Film Applicator

product description

The touch laboratory TBJ-A1 wire rod coating testing machine is a newly upgraded product that is carefully designed to coat precise wet films on different substrates. It can repeatedly and continuously prepare smooth, flat and flawless coatings. After testing samples, the equipment has been favored by many familiar companies, research and development institutions, and colleges and universities after it was put into the market.

This automatic coating machine comes standard with one domestic (CN) wire rod and one imported wire rod with a precision up to 1μm.

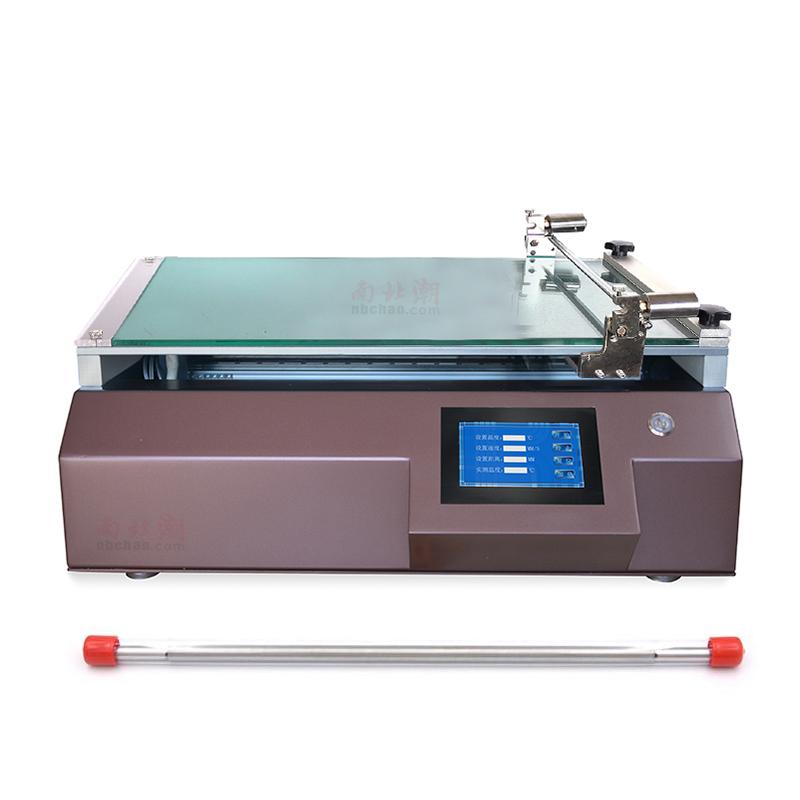

CHINA Wire Applicator TBJ-A1-DJ4 Customized film area 450 * 500mm Figure 1
