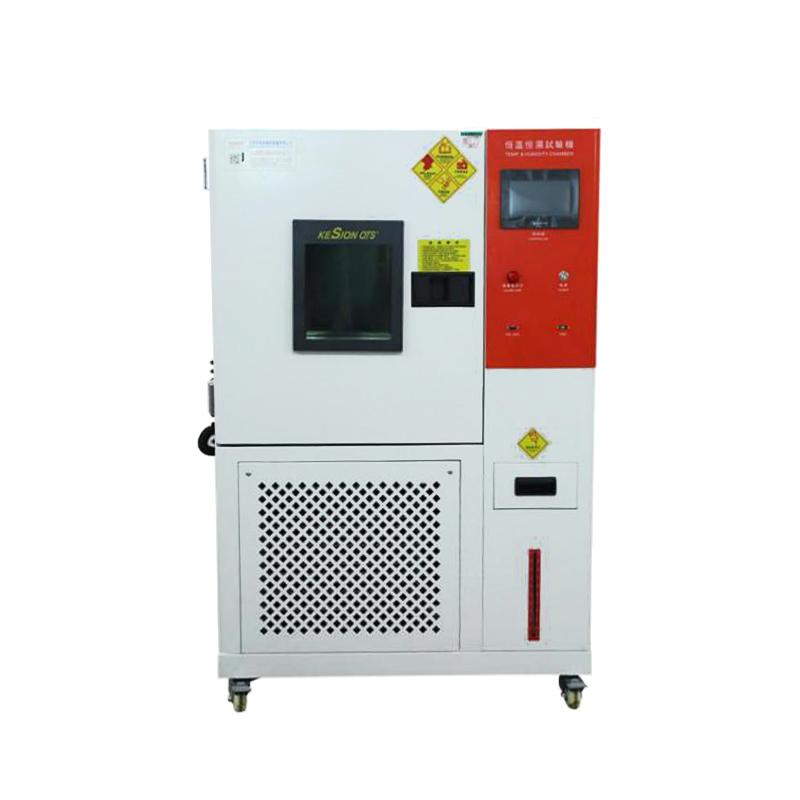

KESIONOTS KS-HW1000F ultra-low temperature humidity chamber -60~ 150 ℃/1000L

KS-HW1000F(150℃)

humidity chamber

Programmable control, temperature control -60~ 150 ℃, humidity control 20%~ 98% R.H, volume 1000L, nano paint outer box, Korean touch screen controller, wind/Water-Cooled double stage refrigeration compressor.

Introduction

The temperature and Humidity Test Chamber can accurately simulate the complex natural environment of low temperature, high temperature, high temperature and high humidity, low temperature and low humidity, and is suitable for product reliability testing in various industries such as plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials, etc.

Equipment features:

1. It has the function of automatic calculation;

2. It has the function of setting the fixed temperature and slope;

3. It has the functions of holding, jumping, standby and two sets of time signal output;

4. It has the function of starting the cold machine/hot engine;

5. It has the function of temperature display value correction;

6. It has the function of temperature sensor body correction;

7. It has the function of automatic stop of compressor;

8. It has the function of starting / stopping the operation by appointment;

9. With power failure memory function: when the power is off, the program data memory can be maintained for 6 months;

10. It has powerful network monitoring and control network functions;

11. It has a capacity of 1000 programs, each section can cycle 999 steps, and the maximum value of each section is set to 99 hours and 59 minutes;

12. It has the function of fault alarm and cause and processing prompt;

13. It has the function of upper and lower limit temperature protection;

14. It has the function of self-diagnosis;

15. With PC link empty energy;

Control system features

This machine uses: TH-1200C/TEM880 programmable 5.7-inch LCD color LCD screen.System capacity: 120 groups of programs X100 segments, the number of segments required for each group of programs can be arbitrarily divided, and each group of programs can be freely connected with each other. Cycle setting: Each group of running programs can be executed, 9999 times or countless cycles of repeated execution, and can be divided into 5 more blocks to execute additional part of the cycle to this extent. Operation mode: three operation modes such as fixed value/program/connection can meet the execution of various temperature test conditions.

1. Control mode: intelligent microcomputer PID+SSR/SCR automatic forward and reverse two-way synchronous output.

2. Data setting: built-in program directory management, which is convenient for the establishment, change, query or operation of various test names and program data.

3. Curve drawing: After the data setting is completed, the setting curve of the relevant data can be obtained immediately, and the drawing screen of the actual operation curve can also be obtained during operation

4. Sequencing control: 2 sets of sequential output control interfaces, with 10 kinds of Timer Control modes, can be used by external logic drive components to perform start/stop timing planning.

5. Scheduled start: All test conditions can be set to schedule the function of boot operation.

6. Operation locking: The functional conditions of start and stop can be locked to prevent other personnel from accidentally touching and affecting the experimental results.

7. Power failure recovery: restart mode with power-off memory device and power recovery time platform1. BREAK 2.COLD 3.HOT start).

8. Safety detection: Built-in 15 full-function system detection and perception devices to ensure the safe operation of the machine, when sensing abnormal faults, immediately cut off the control power of the machine, and automatically display the fault occurrence time, abnormal items and abnormal traceability: it can display the historical data of abnormal faults.

9. External protection: an electronic over-temperature protection device independent of the controller.

10. Communication interface: RS-232 standard communication interface device, which can be connected to personal computer (PC) at the same time for multi-machine control and management

11. Display switching: Chinese/English display subtitles, can be switched freely.

12. Humidification system box type water supply, manual water addition 20L each time

13. The weight of the product rack should be within 20 kg

14. 2 product test racks

Refrigeration system

The refrigeration system is one of the key components of the comprehensive Test Chamber. Generally speaking, the refrigeration methods are mechanical refrigeration and auxiliary liquid nitrogen refrigeration, mechanical refrigeration adopts vapor compression refrigeration, which is mainly composed of compressor, condenser, throttle mechanism and evaporator. If the low temperature of our test should reach -55 °C, it is difficult to meet the requirements of single-stage refrigeration, so the refrigeration method of constant temperature and Humidity Chamber generally adopts cascade refrigeration. The refrigeration system of the constant temperature and Humidity Chamber is composed of two parts, which are called the high temperature part and the low temperature part, and each part is a relatively independent refrigeration system. The evaporation of the refrigerant in the high-temperature part absorbs the heat from the refrigerant in the low-temperature part and vaporizes; The evaporation of the refrigerant at low temperatures draws heat from the cooled object (the air inside the chamber) to obtain the cooling capacity. The high temperature part and the low temperature part are connected by an evaporative condenser, which is both the condenser of the high temperature part and the condenser of the low temperature part.

Heating system

The heating system of the Test Chamber is relatively simple compared to the refrigeration system. It is mainly composed of high-power resistance wires, because the temperature rise rate required by the Test Chamber is larger, so the heating system power of the Test Chamber is relatively large, and the bottom plate of the Test Chamber is also equipped with a heater.

6. Temperature and humidity system

The temperature system is divided into two subsystems: humidification and dehumidification.

The humidification method generally adopts the steam humidification method, that is, the low-pressure steam is directly injected into the test space for humidification. This humidification method has a high humidification capacity and fast humidification control, especially when cooling down, it is easy to achieve forced humidification.

There are two types of dehumidification: mechanical refrigeration dehumidification and dry dehumidification. The dehumidification principle of mechanical refrigeration dehumidification is to cool the air below the dew point temperature, so that the water vapor greater than the saturated moisture content condenses and precipitates, so that the humidity is reduced. Dryer dehumidification is to use an air pump to pump out the air in the Test Chamber, inject the dry air, and at the same time send the moist air to the recyclable drying for drying, and then send it into the Test Chamber after drying, so that the cycle is repeated for dehumidification. At present, most of the comprehensive Test Chambers adopt the former dehumidification method, and the latter dehumidification method, which can make the dew point temperature reach 0 °C. It is suitable for occasions with special requirements, but the cost is more expensive.

Sensor systems

The sensors are mainly temperature and humidity sensors. Temperature sensors are mostly used in platinum electric groups and thermocouples. There are two methods for measuring humidity: the psychrometer thermometer method and the solid-state electronic sensor direct measurement method. Due to the low accuracy of the wet and dry bulb method, the current constant temperature and Humidity Chamber is gradually replacing the wet and dry bulb with solid-state sensors for humidity measurement.

Relevant standards

The performance indicators of the constant temperature and Humidity Chamber meet the requirements of GB5170, 2, 3, 5, 6-95 "Basic Parameter Verification Method for Environmental Test Equipment for Electrical and Electronic Products Low Temperature, High Temperature, Constant Damp Heat, Alternating Damp Heat Test Equipment":

Basic Environmental Test Regulations for Electrical and Electronic Products Test A: Low Temperature Test Method GB2423.1-89 (IEC68-2-1)

Basic Environmental Test Regulations for Electrical and Electronic Products Test B: High Temperature Test Method GB2423.2-89 (IEC68-2-2)

Basic Environmental Test Regulations for Electrical and Electronic Products Test Ca: Constant Damp Heat Test Method GB/T2423.3-93 (IEC68-2-3)

Basic environmental test procedures for electrical and electronic products Test Da: Alternating damp heat test method GB/T423.4-93 (IEC68-2-30)

GJB150.3 (ML-STD0-810D) High Temperature Test Method

GJB150.4 (MIL-STD-810D) Low Temperature Test Method

GJB150.9-1986 "Environmental Test Methods for Military Equipment: Damp Heat Test"

GJB4.6-1983

GJB367.2-1987 "Environmental Test Methods for General Technical Conditions of Military Communication Equipment" 411 Damp Heat Test

GJB4.5-1983

GB10592-93 Technical Conditions for High and Low Temperature Test Chambers

GB10586-93 Technical Conditions for Damp Heat Test Chambers

GJB360.8-87 (MIL-STD-202f) High Temperature Life Test

GB/T5170.2-96

GB/T5170.5-96

YD1268-2003 "Safety Requirements for Mobile Communication Handheld File Batteries and Chargers Standard High Temperature Performance Test, Temperature Cycle Test, Thermal Shock Test"

UL1642 "Lithium Battery Standard Environmental Test - Heating and Thermal Cycling Test Methods and Requirements"

UN38.3 Standard Regulations for the Testing of Lithium Batteries and Batteries – Temperature Tests

GB/T18287-2000

GB8897.4-2002 "Primary Batteries Part 4: Environmental Test of Safety Requirements for Lithium Batteries - Thermal Shock and Thermal Abuse Test"

UL2054-2005 "Environmental Test in Battery Standard - Heating and Thermal Cycling Test"

SJ/T 11169-1998

GB8897.4-2002 "Primary Batteries Part 4: Environmental Test of Safety Requirements for Lithium Batteries - Thermal Shock, High and Low Tests"

SJ/T11170-1998

YD1268.2-2003

QC/T743-2006 "Standard Heating Test for Nickel Hydride Batteries for Electric Vehicles"

QC/T744-2006 "Standard Heating Test of Nickel Metal Hydride Batteries for Electric Vehicles"

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
