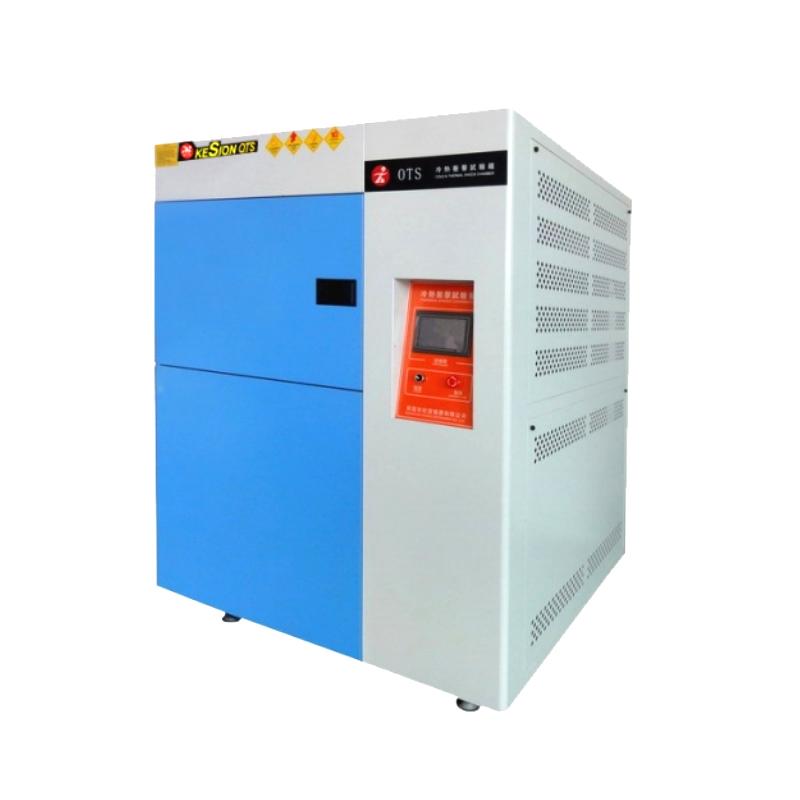

KESIONOTS Three Box Thermal Shock Test Chamber KS-OTS-LR50LA Low Temperature -45 ℃/50L
SEHigh temperature zone, low temperature zone, test zone three boxes, volume 50L, stainless steel inner box material, suitable for testing material structure or composite, temperature control accuracy +/- 0.5 ℃.
$9939.00/set
PromotionLoading...
Coupon
Model：
KS-OTS-LR50LA
kesionots KS-OTS-LR50LA Thermal Shock Test ChamberSPEC
kesionots KS-OTS-LR50LA Thermal Shock Test ChamberDetails
kesionots KS-OTS-LR50LA Thermal Shock Test ChamberPacking list
- SKU
- NB041539
- Temperature range
- High temperature zone: 60 ℃~ 150 ℃; low temperature zone: -10 ℃~ -45 ℃
- Heating rate
- RT-200 ℃ takes about 35min
- Cooling rate
- RT-70°C≈85min
- Liner size
- 360*400*350mm
- Dimensions
- 1380*1800*1550mm
- Temperature recovery time
- Within ≤ 5min
- Temperature transition time
- ≤ 10s
- Temperature control Accuracy
- ±0.5℃
- Temperature Uniformity
- ±2.0℃
- Liner material
- stainless steel
- Enclosure Material
- The whole machine is SUS304 #stainless steel plate matte surface treatment or cold-drawn steel plate nanotechnology advanced baking paint
- Thermal insulation material
- High temperature resistant high density formic acid vinegar foam insulator material
- system
- P.I.D + S.S.R + microcomputer equilibrate temperature Control system
- Chill down the system
- Semi-hermetic double-stage compressor (water-cooled)/fully hermetic double-stage compressor (air-cooled)
- protection device
- Fuseless switch, compressor high and low Voltage protection switch, refrigerant high Voltage protection switch, fault warning system, electronic alarm
- Accessories
- viewing window (special optional type), two Upper/Lower adjustable partitions, power-on measuring holes, casters, horizontal brackets
- Power
- AC 380V 50HZ/60HZ
- Weight
- 700kg
- Controller
- South Korea "TEMI" South Korea "TEMI" or Japan "OYO" card
- Refrigeration system
- French "Taikang" brand or German BITZER
KS-OTS-LR50LA
Thermal Shock Test Chamber
High temperature zone, low temperature zone, test zone three boxes, volume 50L, stainless steel inner box material, suitable for testing material structure or composite, temperature control accuracy +/- 0.5 ℃.
Introduction
Thermal shock testing machine, used to test the material structure or composite material, in an instant through the extreme high temperature and extremely low temperature continuous environment, so as to test the chemical changes caused by thermal expansion and contraction in the shortest time or physical damage. Applicable objects include metal, plastic, rubber, electronics... and other materials, which can be used as the basis or reference for product improvement.
Three-Chamber equipment structure
◆High-temperature zone, low-temperature zone, and test zone. The test product is placed in the test zone. During impact, the temperature of the high-temperature zone or low-temperature zone rushes into the test zone for impact. The test product is static.
*Adopt the touch-control graphical operation interface, which is easy to operate.
*The impact method uses the wind circuit switching method to introduce the temperature into the test area, and do the cold and heat impact test.
FAQ
QOur company mainly does the Reliability test of electronic products. We are looking for a test chamber that can quickly perform high and low temperature Impact. Do you have any recommendations?
A
The KS-OTS-LR50LA Thermal Shock Test Chamber adopts a three-box structure, with samples statically placed in the test area. It can quickly switch between high and low temperatures through the wind path, and the temperature conversion time is less than or equal to 10 seconds. It can simulate extremely fast temperature changes, making it ideal for testing the tolerance of electronic products under instantaneous Thermal Shock conditions, helping you quickly detect potential material defects.
QWe need to test small metal parts. Is there an impact test chamber of the right size and precise temperature control?
A
KESIONOTS KS-OTS-LR50LA liner size is 360 * 400 * 350mm, the shape is relatively compact, suitable for small sample testing. Temperature control accuracy of +/- 0.5 ℃, distribution accuracy of +/- 2.0 ℃, can ensure that the metal parts in the range of -45 ℃ to 150 ℃ fertilized Thermal Shock, verify its thermal expansion and contraction performance, and the equipment is easy to operate, using touch interface.
QWe need to do the Thermal Impact Test of the Rubber Material, requiring fast and stable temperature recovery. Which model is more suitable?
A
KESIONOTS KS-OTS-LR50LA can be considered. Its temperature recovery time is less than or equal to 5 minutes, and it can quickly stabilize to the set temperature, ensuring that the test conditions of rubber samples are consistent when they are continuously impacted in the high and low temperature range. Using the P.I.D microcomputer equilibrate temperature control system and high-quality refrigeration components (such as the French Taikang compressor), the operation is stable, and it is very suitable for the physical and chemical damage assessment of materials such as rubber under severe temperature changes.
