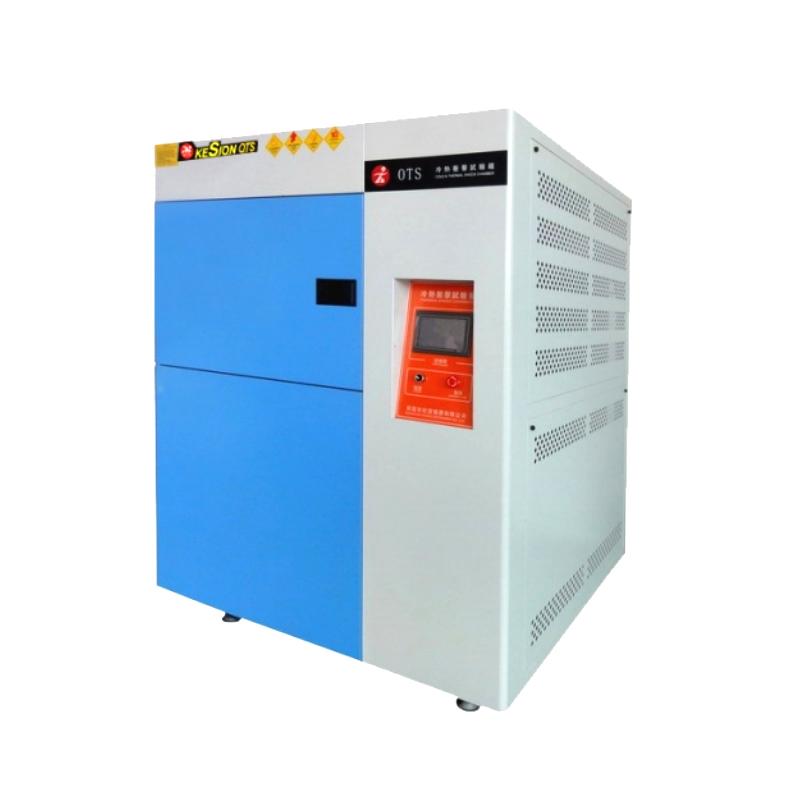

KESIONOTS Three Box Thermal Shock Test Chamber KS-OTS-LR80LA Low Temperature -45 ℃/80L
SEHigh temperature zone, low temperature zone, test zone three boxes, volume 80L, stainless steel inner box material, suitable for testing material structure or composite, temperature control accuracy +/- 0.5 ℃.
$16267.00/set
PromotionLoading...
Coupon
Model：
KS-OTS-LR80LA
kesionots KS-OTS-LR80LA Thermal Shock Test ChamberSPEC
kesionots KS-OTS-LR80LA Thermal Shock Test ChamberDetails
kesionots KS-OTS-LR80LA Thermal Shock Test ChamberPacking list
- SKU
- NB041540
- Temperature range
- High temperature zone: 60 ℃~ 150 ℃; low temperature zone: -10 ℃~ -45 ℃
- Heating rate
- RT-200 ℃ takes about 35min
- Cooling rate
- RT-70°C≈85min
- Liner size
- 400*500*400mm
- Dimensions
- 1500*1900*1600mm
- Temperature recovery time
- Within ≤ 5min
- Temperature transition time
- ≤ 10s
- Temperature control Accuracy
- ±0.5℃
- Temperature Uniformity
- ±2.0℃
- Liner material
- stainless steel
- Enclosure Material
- The whole machine is SUS304 #stainless steel plate matte surface treatment or cold-drawn steel plate nanotechnology advanced baking paint
- Thermal insulation material
- High temperature resistant high density formic acid vinegar foam insulator material
- system
- P.I.D + S.S.R + microcomputer equilibrate temperature Control system
- Chill down the system
- Semi-hermetic double-stage compressor (water-cooled)/fully hermetic double-stage compressor (air-cooled)
- protection device
- Fuseless switch, compressor high and low Voltage protection switch, refrigerant high Voltage protection switch, fault warning system, electronic alarm
- Accessories
- viewing window (special optional type), two Upper/Lower adjustable partitions, power-on measuring holes, casters, horizontal brackets
- Power
- AC 380V 50HZ/60HZ
- Weight
- 900kg
- Controller
- South Korea "TEMI" South Korea "TEMI" or Japan "OYO" card
- Refrigeration system
- French "Taikang" brand or German BITZER
KS-OTS-LR80LA
Thermal Shock Test Chamber
High temperature zone, low temperature zone, test zone three boxes, volume 80L, stainless steel inner box material, suitable for testing material structure or composite, temperature control accuracy +/- 0.5 ℃.
Introduction
Thermal shock testing machine, used to test the material structure or composite material, in an instant through the extreme high temperature and extremely low temperature continuous environment, so as to test the chemical changes caused by thermal expansion and contraction in the shortest time or physical damage. Applicable objects include metal, plastic, rubber, electronics... and other materials, which can be used as the basis or reference for product improvement.
Three-Chamber equipment structure
◆High-temperature zone, low-temperature zone, and test zone. The test product is placed in the test zone. During impact, the temperature of the high-temperature zone or low-temperature zone rushes into the test zone for impact. The test product is static.
*Adopt the touch-control graphical operation interface, which is easy to operate.
*The impact method uses the wind circuit switching method to introduce the temperature into the test area, and do the cold and heat impact test.
FAQ
QOur company is doing Electronic Products Research & Development, and we need to test the Reliability of products under extreme temperature changes. Do you have any recommended equipment?
A
KESIONOTS 'KS-OTS-LR80LA Thermal Shock Test Chamber is designed to simulate instantaneous extremely high temperature and extremely low temperature environments to test the thermal expansion and contraction resistance of materials (such as electronic products you mentioned), and can quickly detect potential physical damage or chemical changes, providing a reliable basis for product improvement.
QWhat test scenarios is this Thermal Shock Test Chamber commonly used in? Why is it suitable for these scenarios?
A
It is widely used in Reliability testing of metals, plastics, rubber, electronics and other materials. Common scenarios include weathering resistance verification of automotive electronic components, temperature adaptability evaluation of aerospace components, and rapid temperature change testing of consumer electronics products. Because it adopts a three-box structure (high temperature zone, low temperature zone, test zone), it can achieve rapid temperature conversion (≤ 10 seconds) through air path switching, which can accurately simulate extreme temperature Impact and ensure the professionalism and efficiency of test results.
