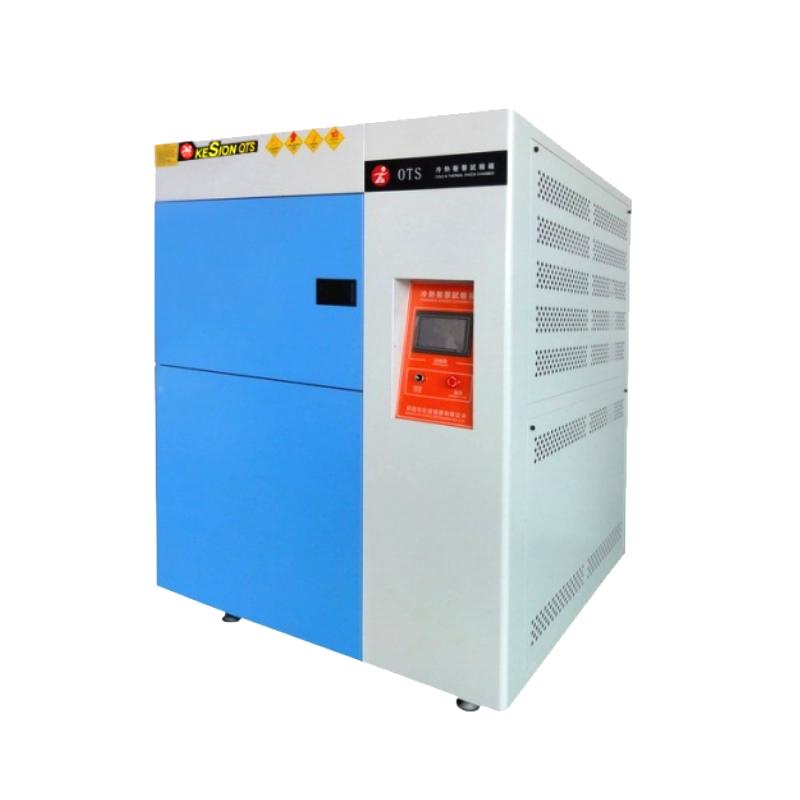

KESIONOTS Three Box Thermal Shock Test Chamber KS-OTS-LR150LA Low Temperature -45 ℃/150L
SEHigh temperature zone, low temperature zone, test zone three boxes, volume 150L, stainless steel inner box material, suitable for testing material structure or composite, temperature control accuracy +/- 0.5 ℃.
$20104.00/set
PromotionLoading...
Coupon
Model：
KS-OTS-LR150LA
kesionots KS-OTS-LR150LA Thermal Shock Test ChamberSPEC
kesionots KS-OTS-LR150LA Thermal Shock Test ChamberDetails
kesionots KS-OTS-LR150LA Thermal Shock Test ChamberPacking list
- SKU
- NB041541
- Temperature range
- High temperature zone: 60 ℃~ 150 ℃; low temperature zone: -10 ℃~ -45 ℃
- Heating rate
- RT-200 ℃ takes about 35min
- Cooling rate
- RT-70°C≈85min
- Liner size
- 500*600*500mm
- Dimensions
- 1900*2000*1950mm
- Temperature recovery time
- Within ≤ 5min
- Temperature transition time
- ≤ 10s
- Temperature control Accuracy
- ±0.5℃
- Temperature Uniformity
- ±2.0℃
- Liner material
- stainless steel
- Enclosure Material
- The whole machine is SUS304 #stainless steel plate matte surface treatment or cold-drawn steel plate nanotechnology advanced baking paint
- Thermal insulation material
- High temperature resistant high density formic acid vinegar foam insulator material
- system
- P.I.D + S.S.R + microcomputer equilibrate temperature Control system
- Chill down the system
- Semi-hermetic double-stage compressor (water-cooled)/fully hermetic double-stage compressor (air-cooled)
- protection device
- Fuseless switch, compressor high and low Voltage protection switch, refrigerant high Voltage protection switch, fault warning system, electronic alarm
- Accessories
- viewing window (special optional type), two Upper/Lower adjustable partitions, power-on measuring holes, casters, horizontal brackets
- Power
- AC 380V 50HZ/60HZ
- Weight
- 1200kg
- Controller
- South Korea "TEMI" South Korea "TEMI" or Japan "OYO" card
- Refrigeration system
- French "Taikang" brand or German BITZER
KS-OTS-LR150LA
Thermal Shock Test Chamber
High temperature zone, low temperature zone, test zone three boxes, volume 150L, stainless steel inner box material, suitable for testing material structure or composite, temperature control accuracy +/- 0.5 ℃.
Introduction
Thermal shock testing machine, used to test the material structure or composite material, in an instant through the extreme high temperature and extremely low temperature continuous environment, so as to test the chemical changes caused by thermal expansion and contraction in the shortest time or physical damage. Applicable objects include metal, plastic, rubber, electronics... and other materials, which can be used as the basis or reference for product improvement.
Three-Chamber equipment structure
◆High-temperature zone, low-temperature zone, and test zone. The test product is placed in the test zone. During impact, the temperature of the high-temperature zone or low-temperature zone rushes into the test zone for impact. The test product is static.
*Adopt the touch-control graphical operation interface, which is easy to operate.
*The impact method uses the wind circuit switching method to introduce the temperature into the test area, and do the cold and heat impact test.
FAQ
QI want to test the tolerance of electronic components in extremely cold and extremely hot environments. Which Thermal Shock Test Chamber should I choose?
A
KS-OTS-LR150LA Thermal Shock Test Chamber uses a three-box structure, with a high temperature zone up to 150 ° C, a low temperature zone as low as -45 ° C, and a temperature conversion time of less than 10 seconds. It can quickly simulate extreme temperature impacts, making it ideal for testing materials sensitive to temperature changes such as electronic components. It can help you quickly detect potential failures caused by thermal expansion and contraction.
QOur laboratory space is limited and we need to test rubber samples with a size of 500 * 600 * 500mm. Is there a suitable model?
A
KESIONOTS KS-OTS-LR150LA fits. Its liner size is exactly 500 * 600 * 500mm, which can accommodate your rubber sample, and it is compact (1900 * 2000 * 1950mm), which saves space. The three-box static test design ensures that the sample is not disturbed by movement in the test area, and can accurately evaluate the physical and chemical changes of the rubber under the instantaneous Thermal Shock.
