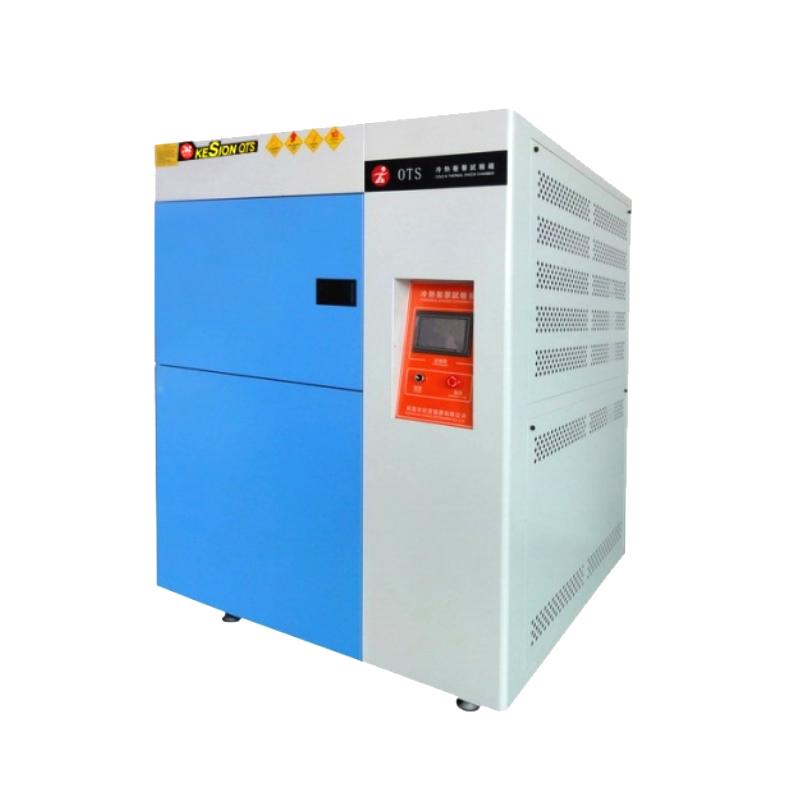

KESIONOTS Three Box Thermal Shock Tester KS-OTS-LR225LB Low Temperature -55 ℃/225L
SEHigh temperature zone, low temperature zone, test zone three boxes, volume 225L, 304 stainless steel inner box material, suitable for testing material structure or composite, temperature control accuracy +/- 0.5 ℃.
$35313.00/set
PromotionLoading...
Coupon
Model：
KS-OTS-LR225LB
kesionots KS-OTS-LR225LB Thermal Shock Test ChamberSPEC
kesionots KS-OTS-LR225LB Thermal Shock Test ChamberDetails
kesionots KS-OTS-LR225LB Thermal Shock Test ChamberPacking list
- SKU
- NB041545
- Temperature range
- High temperature zone: 60 ℃~ 150 ℃; low temperature zone: -10 ℃~ -55 ℃
- Heating rate
- RT-200 ℃ takes about 35min
- Cooling rate
- RT-70°C≈85min
- Liner size
- 600*750*500mm
- Dimensions
- 2100*2200*2050mm
- Temperature recovery time
- Within ≤ 5min
- Temperature transition time
- ≤ 10s
- Temperature control Accuracy
- ±0.5℃
- Temperature Uniformity
- ±2.0℃
- Liner material
- stainless steel
- Enclosure Material
- The whole machine is SUS304 #stainless steel plate matte surface treatment or cold-drawn steel plate nanotechnology advanced baking paint
- Thermal insulation material
- High temperature resistant high density formic acid vinegar foam insulator material
- system
- P.I.D + S.S.R + microcomputer equilibrate temperature Control system
- Chill down the system
- Semi-hermetic double-stage compressor (water-cooled)/fully hermetic double-stage compressor (air-cooled)
- protection device
- Fuseless switch, compressor high and low Voltage protection switch, refrigerant high Voltage protection switch, fault warning system, electronic alarm
- Accessories
- viewing window (special optional type), two Upper/Lower adjustable partitions, power-on measuring holes, casters, horizontal brackets
- Power
- AC 380V 50HZ/60HZ
- Weight
- 1400kg
- Controller
- South Korea "TEMI" South Korea "TEMI" or Japan "OYO" card
- Refrigeration system
- French "Taikang" brand or German BITZER
- Inner Volume
- 225L
KS-OTS-LR225LB
Thermal Shock Test Chamber
High temperature zone, low temperature zone, test zone three boxes, volume 225L, 304 stainless steel inner box material, suitable for testing material structure or composite, temperature control accuracy +/- 0.5 ℃.
Introduction
Thermal shock testing machine, used to test the material structure or composite material, in an instant through the extreme high temperature and extremely low temperature continuous environment, so as to test the chemical changes caused by thermal expansion and contraction in the shortest time or physical damage. Applicable objects include metal, plastic, rubber, electronics... and other materials, which can be used as the basis or reference for product improvement.
Three-Chamber equipment structure
◆High-temperature zone, low-temperature zone, and test zone. The test product is placed in the test zone. During impact, the temperature of the high-temperature zone or low-temperature zone rushes into the test zone for impact. The test product is static.
*Adopt the touch-control graphical operation interface, which is easy to operate.
*The impact method uses the wind circuit switching method to introduce the temperature into the test area, and do the cold and heat impact test.
FAQ
QI want to test the performance of electronic components under extreme temperature changes.
A
The KS-OTS-LR225LB Thermal Shock Test Chamber is designed to simulate the instantaneous impact environment of extremely high and very low temperatures, and can quickly test the thermal expansion and contraction resistance of materials (such as electronic components), helping you evaluate the Reliability and potential damage of products under sudden temperature changes.
QWhat scenarios is this Thermal Shock Test Chamber usually used in? Why is it suitable for these scenarios?
A
KESIONOTS KS-OTS-LR225LB is commonly used for Reliability testing of materials such as metals, plastics, rubber and electronics. It adopts a three-box structure (high temperature zone, low temperature zone, test zone), and realizes fast temperature conversion (≤ 10 seconds) through air duct switching. It can simulate extreme temperature changes encountered by products in actual use or transportation, thereby accelerating the discovery of material chemical or physical changes and providing a basis for product improvement.
